Used Doosan DH150

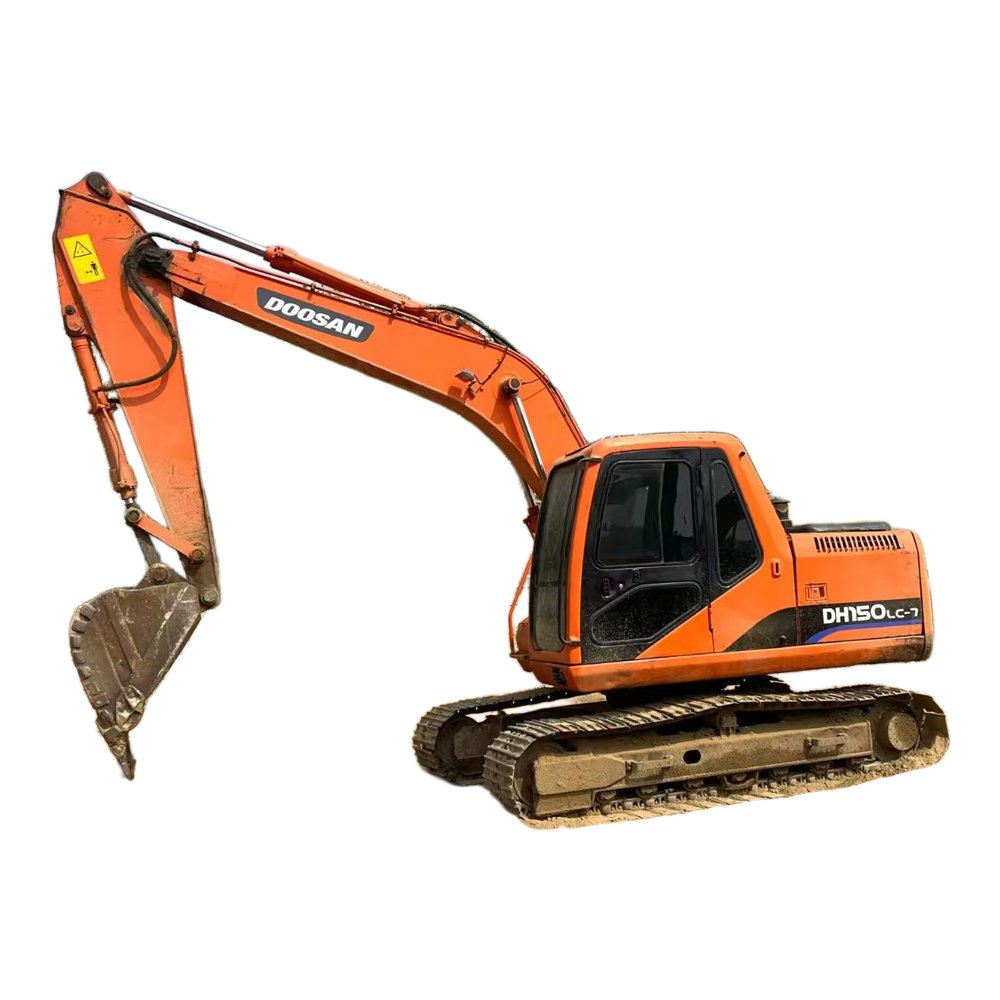

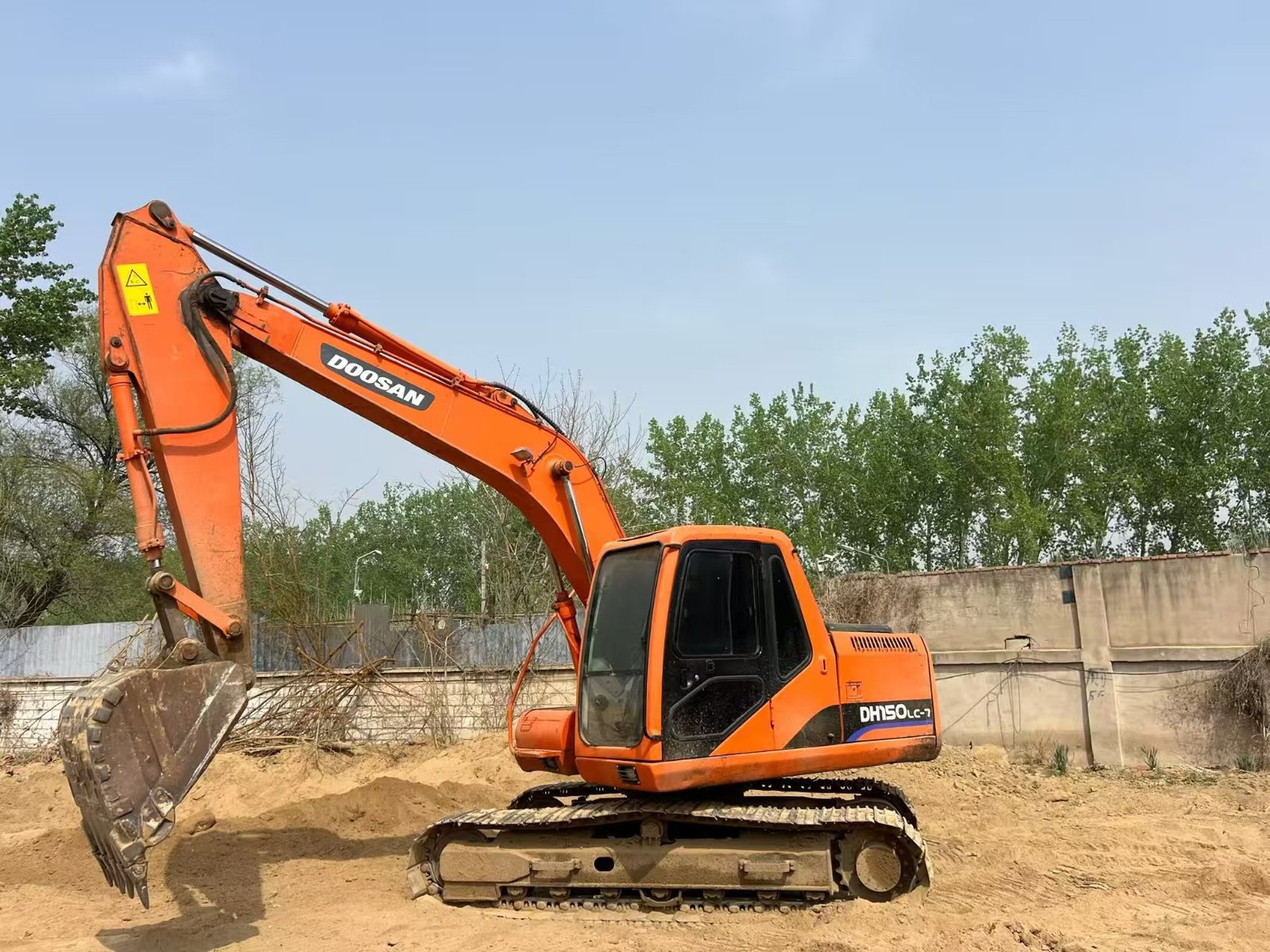

DH150 crawler excavator is remanufactured and has been used in China for 3600 hours. Doosan. DH150 crawler excavator has an operating weight of 13,900 kg. It is equipped with a 71 kW engine and a hydraulic system with a maximum main pump flow rate of 2×116 L/min. The bucket capacity ranges from 0.28 to 0.75 m³, and it has strong digging force. With different combinations of boom and arm lengths, it can adapt to various scenarios, has a wide working range, and performs excellently in small-scale projects and complex working conditions.
Share:
Used Doosan DH150
DH150 crawler excavator is remanufactured and has been used in China for 3600 hours. Doosan. DH150 crawler excavator has an operating weight of 13,900 kg. It is equipped with a 71 kW engine and a hydraulic system with a maximum main pump flow rate of 2×116 L/min. The bucket capacity ranges from 0.28 to 0.75 m³, and it has strong digging force. With different combinations of boom and arm lengths, it can adapt to various scenarios, has a wide working range, and performs excellently in small-scale projects and complex working conditions.
Doosan DH150crawler excavator, with a working weight of 13900kg, can operate reliably in all kinds of complex terrains with its stable and solid housing.

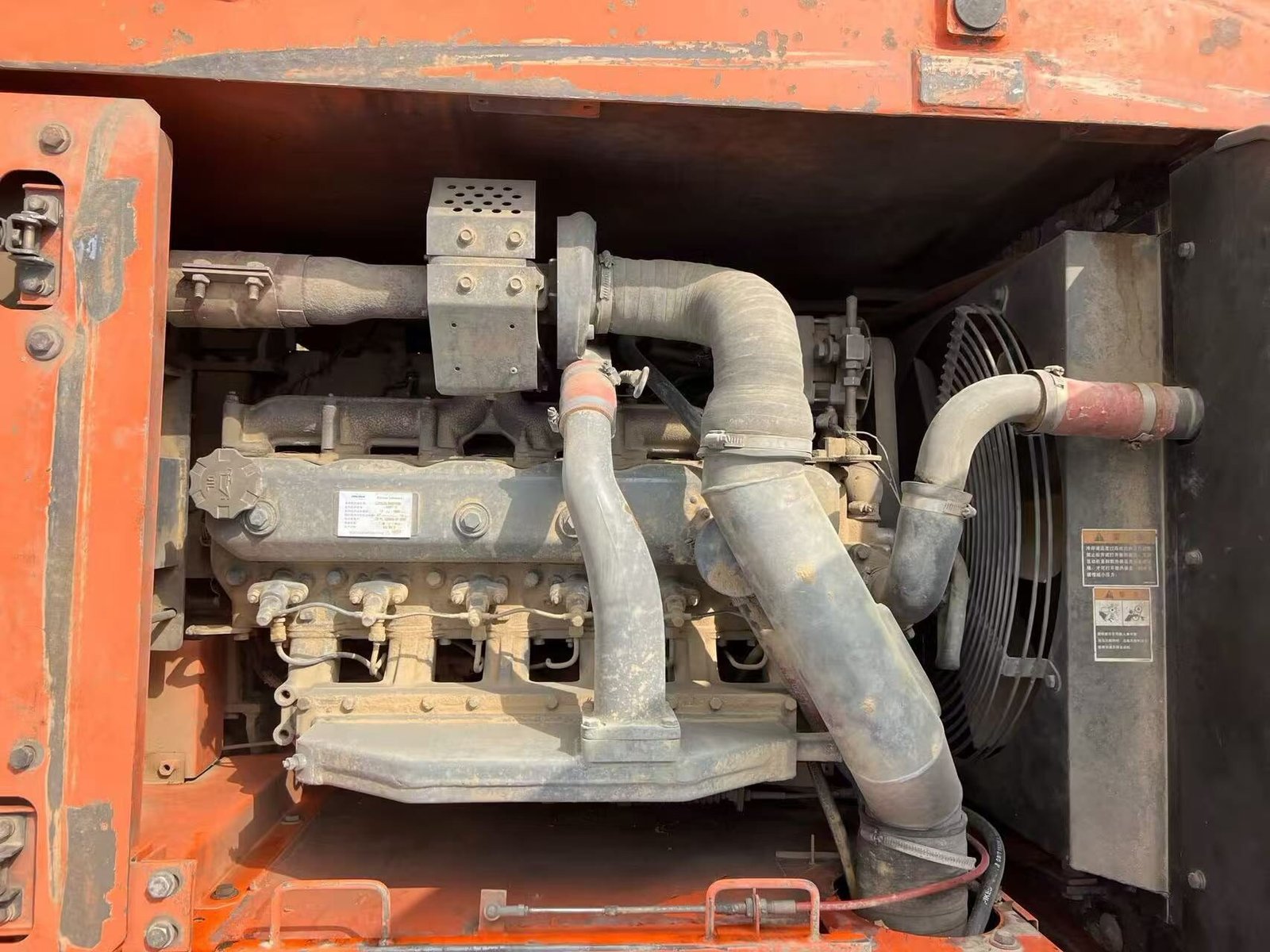

It is equipped with an engine with a rated power of 71kW and a hydraulic system with a maximum flow of 2×116L/min for the main pump. It is powerful and responsive, and can easily handle excavation, loading and unloading, or leveling operations.
The bucket capacity ranges from 0.28 to 0.75m³, and can be flexibly switched according to different construction needs. The standard bucket digging force can reach 77.4kN, and 81.3kN after supercharging. The standard arm digging force is 57.8kN, and 62kN after supercharging. The digging efficiency is very impressive.
The upper frame design of the Caterpillar Cat320D2 excavator is unique, with an inverted “T”-shaped crossbeam and cleverly welded to the box-section “X” structure body, further strengthening the stability of the adjacent crawler support roller frame. Its crawler chain adopts a grease lubrication design, and the grease is tightly enclosed between the pin and the bushing, effectively preventing the intrusion of dust and debris. In addition, the Cat320D2 also provides a variety of boom options, which can flexibly adapt to various working conditions and meet the specific needs of users.
Its minimum ground clearance is 410mm, allowing it to travel stably on rugged ground; its tail swing radius is 2200mm, allowing it to turn flexibly in narrow spaces and easily complete various difficult operations, making it a powerful device for small projects and complex working conditions.
Technical Parameter
Cooperative Brand
Tonghao mainly supplies used construction machinery of well-known brands like Komatsu, Caterpilar, Hitachi, Doosan, Volvo, Sany, Hyundai, Xugong, LiuGong, Lingong and other.
