Excavator New Bucket Tooth

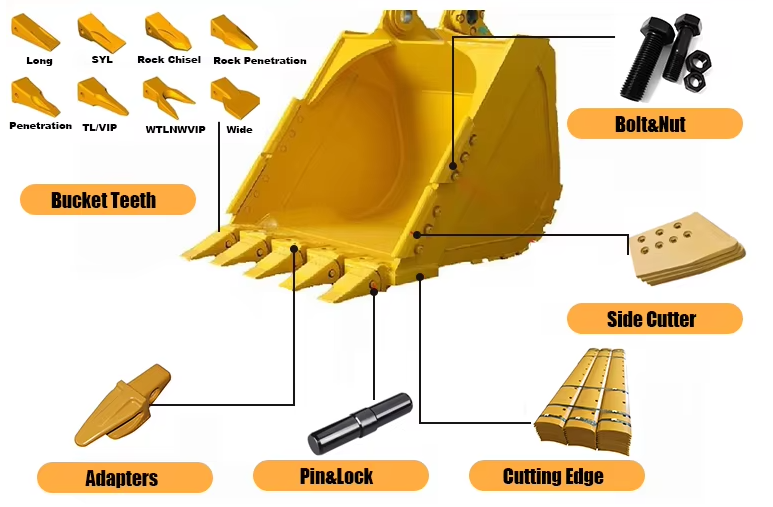

Excavator bucket teeth are important parts of the excavator. They are also vulnerable parts. They are combined bucket teeth composed of tooth seats and tooth tips, which are connected by pins. Since the tooth tips are the worn and failed parts of the bucket teeth, you only need to replace the tooth tips.
Share:







This is a simple banner
Lorem ipsum dolor sit amet, consectetuer adipiscing elit, sed diam nonummy nibh euismod tincidunt ut laoreet dolore magna aliquam erat volutpat.

Detailed explanation of the outer dimensions of bucket teeth models
Ⅰ. Standard bucket teeth
- T-type bucket teeth
The outer dimensions are 185mm×135mm×40mm, suitable for digging hard soil, gravel, sand and gravel mixed layers and other strata.
- WT bucket teeth
The outer dimensions are 177mm×147mm×40mm, suitable for digging loose soil, silt, sandy soil and other strata.
- L-type bucket teeth
The outer dimensions are 195mm×160mm×40mm, suitable for digging loose soil, sand, sandy rock and other strata.
Ⅱ. Conical bucket teeth

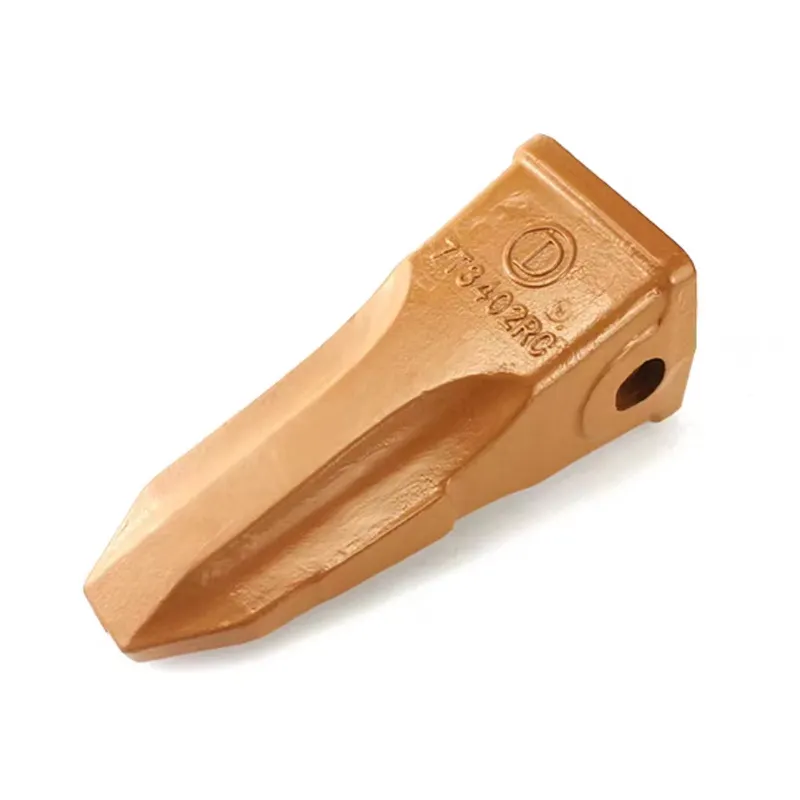

- RC bucket teeth
The outer dimensions are 145mm×95mm×35mm, suitable for digging hard soil, rock and other strata.
- TL bucket teeth
The overall dimensions are 140mm×100mm×40mm, suitable for digging medium-hard soil, gravel, sand and gravel mixed layers and other strata.
- P bucket teeth
The overall dimensions are 175mm×140mm×40mm, suitable for digging medium-hard soil, gravel, sand and gravel mixed layers and other strata.
III. Hook bucket teeth
- WY bucket teeth
The overall dimensions are 120mm×75mm×22mm, suitable for digging loose soil, silt and other strata.
- HY bucket teeth
The overall dimensions are 120mm×75mm×22mm, suitable for digging soft soil, soil, silt and other strata.
The above are common bucket tooth models and their overall dimensions. Different strata are suitable for different bucket tooth models. Choosing the right bucket teeth can not only improve construction efficiency, but also extend the service life of the bucket teeth. When purchasing bucket teeth, you can choose the right model according to different work needs. In order to ensure the normal service life of the bucket teeth, it is also necessary to regularly check the wear of the bucket teeth during the construction process and replace the worn bucket teeth in time to ensure work efficiency and the safety of the bucket teeth.
