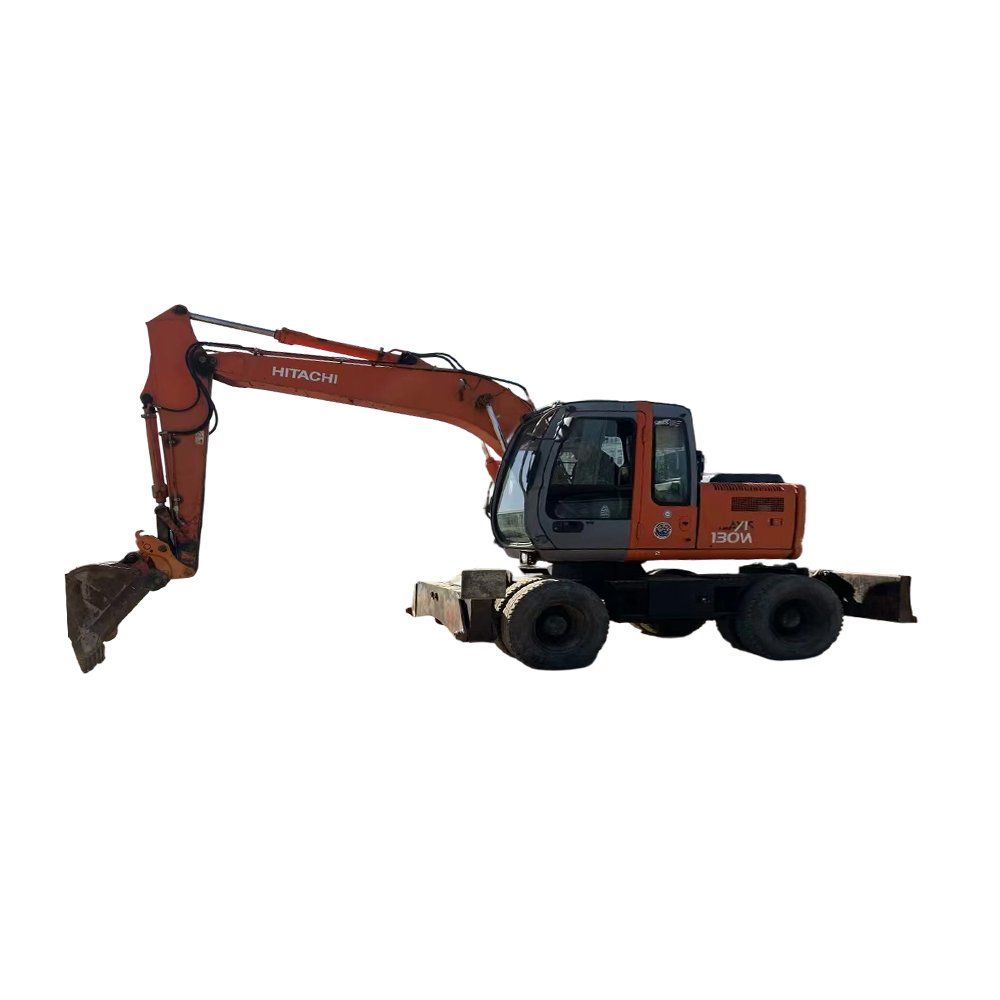

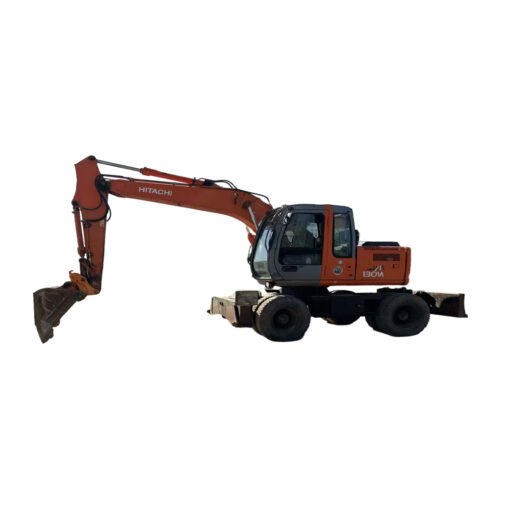

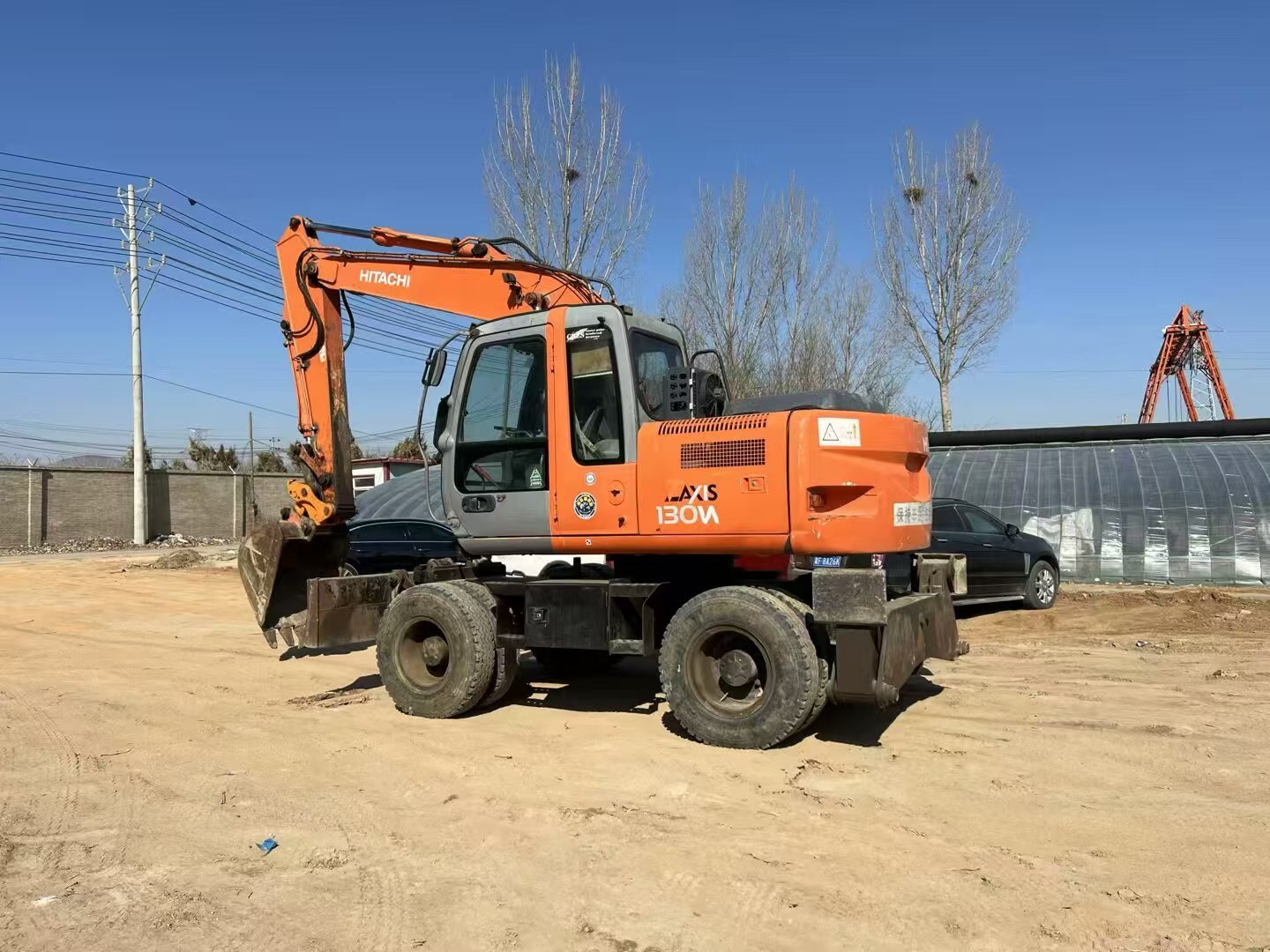

Used Hitachi zx130w
Hitachi 130 excavator of the 13-ton class weighs 12,500 kg. With an Isuzu engine, it has strong power, and its hydraulic system performs well. It has excellent digging force and flexible operation. It has design advantages in terms of bucket adaptability, site transfer convenience, and driving experience. The digging radius is 8,270 mm and the digging depth is 5,570 mm. It has a wide working range and is suitable for various types of construction scenarios.

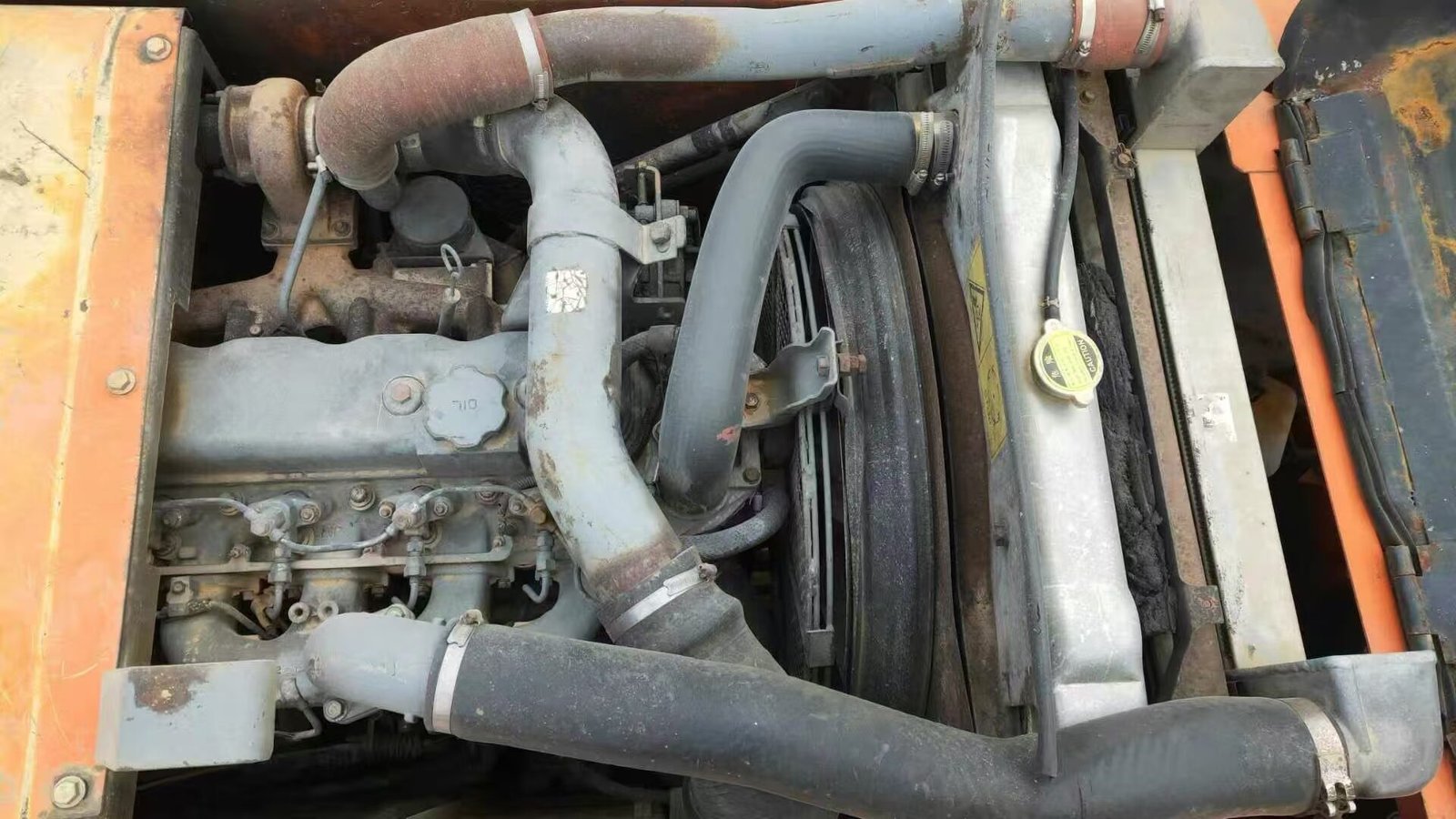

The Hitachi 130 excavator has a total weight of 12,500 kg. It is a 13-ton medium-sized equipment that can be very stable under various working conditions. It uses the ISUZU CC-4BG1TC engine with a rated power of 66 kW/2150 rpm and a displacement of 4.329 liters. The power output is stable and strong, and all kinds of excavation operations are no problem.

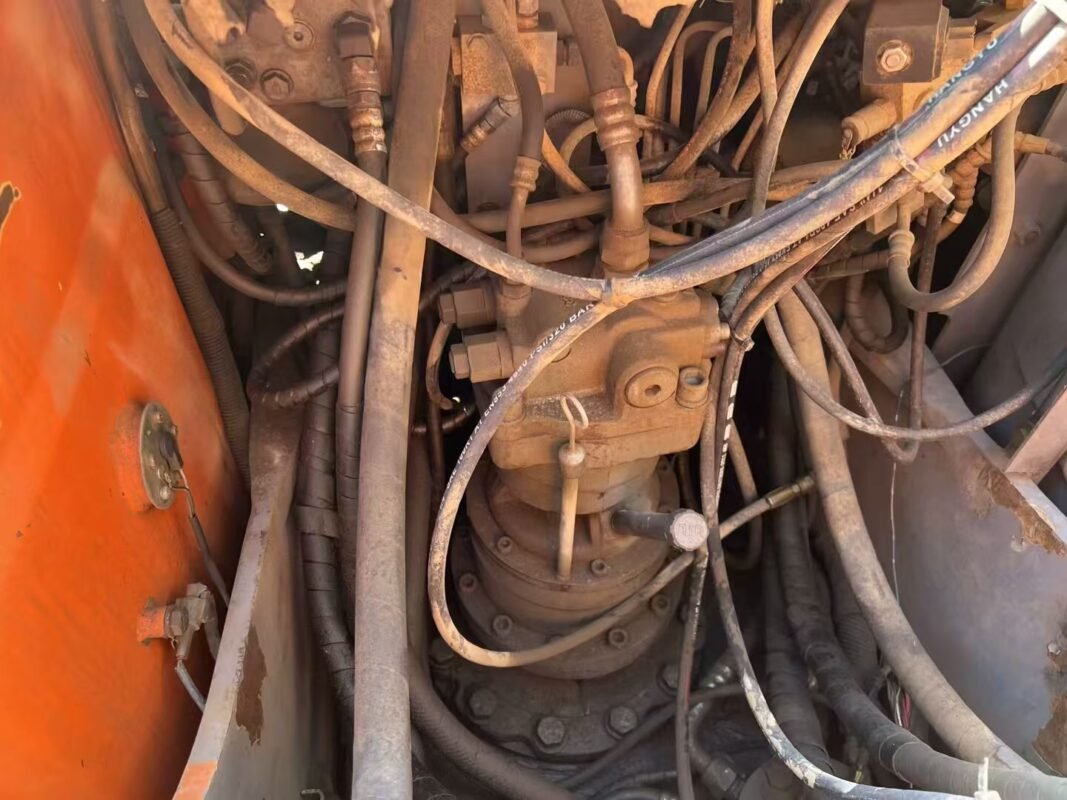

The hydraulic system has 2 variable piston pumps and 1 gear pump. The maximum flow of the main pump is 105×2 liters/minute, and the main overflow setting pressure is 34.3 MPa. The bucket digging force can reach 99 kN, and the digging force of the digging arm is 65 kN. The rotation speed is 13.7 rpm, and the walking speed has two gears, one is 3.4 km/h and the other is 5.5 km/h, which is particularly flexible and efficient to operate.
Hitachi 130 excavator has many design highlights. The standard 0.59 to 0.65 cubic meter bucket can adapt to different excavation needs. The total transport length is 7610 mm, the total width is 2490 mm, and the total height is 2740 mm, which is convenient for transportation. The full height of the cab is also 2740 mm, providing the driver with a wide field of vision and a comfortable working environment.
The track grounding length is 2880 mm, the track shoe width is 500 mm, and the grounding pressure ratio is reasonable to ensure smooth driving. The maximum digging radius can reach 8270 mm, and the maximum digging depth is 5570 mm, with a wide operating range. Whether it is construction, road construction, or agricultural and forestry operations, it can give full play to its efficient digging capabilities.
Technical Parameter
Cooperative Brand
Tonghao mainly supplies used construction machinery of well-known brands like Komatsu, Caterpilar, Hitachi, Doosan, Volvo, Sany, Hyundai, Xugong, LiuGong, Lingong and other.
