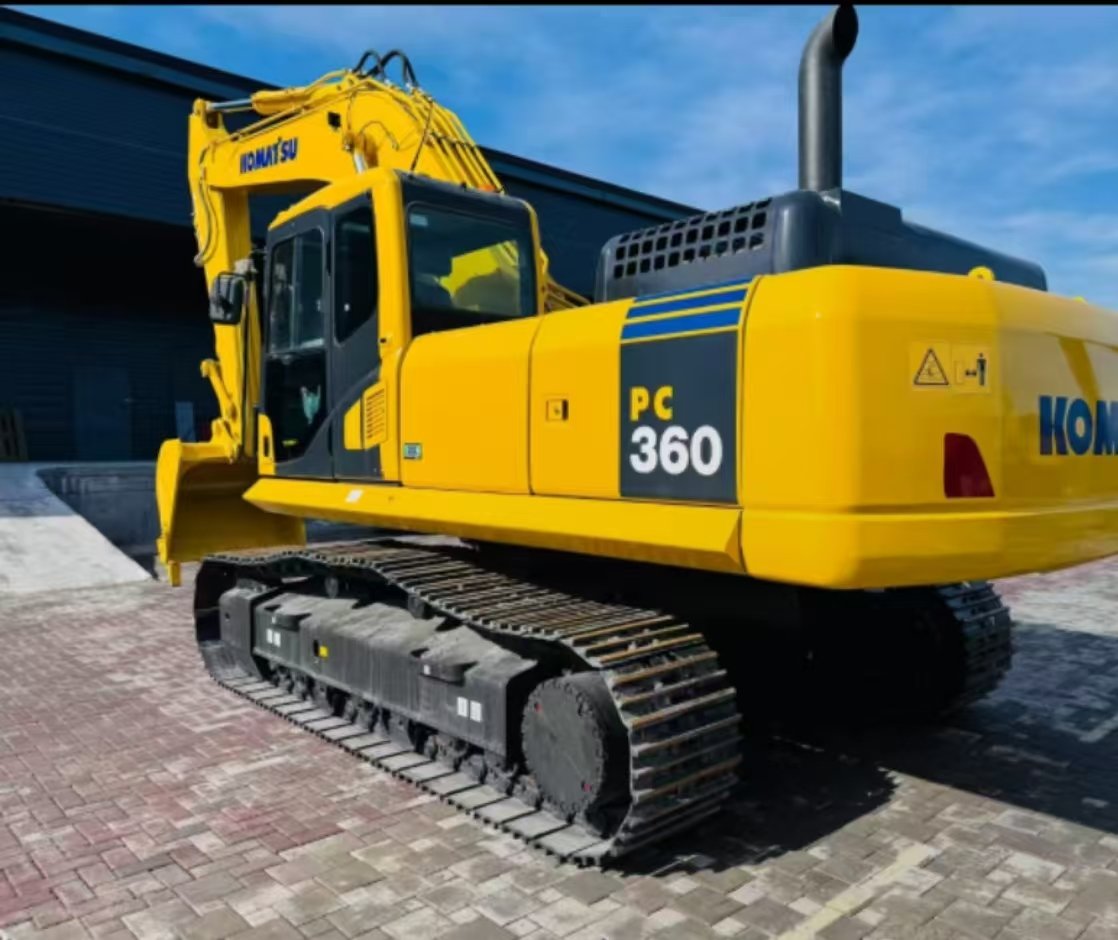

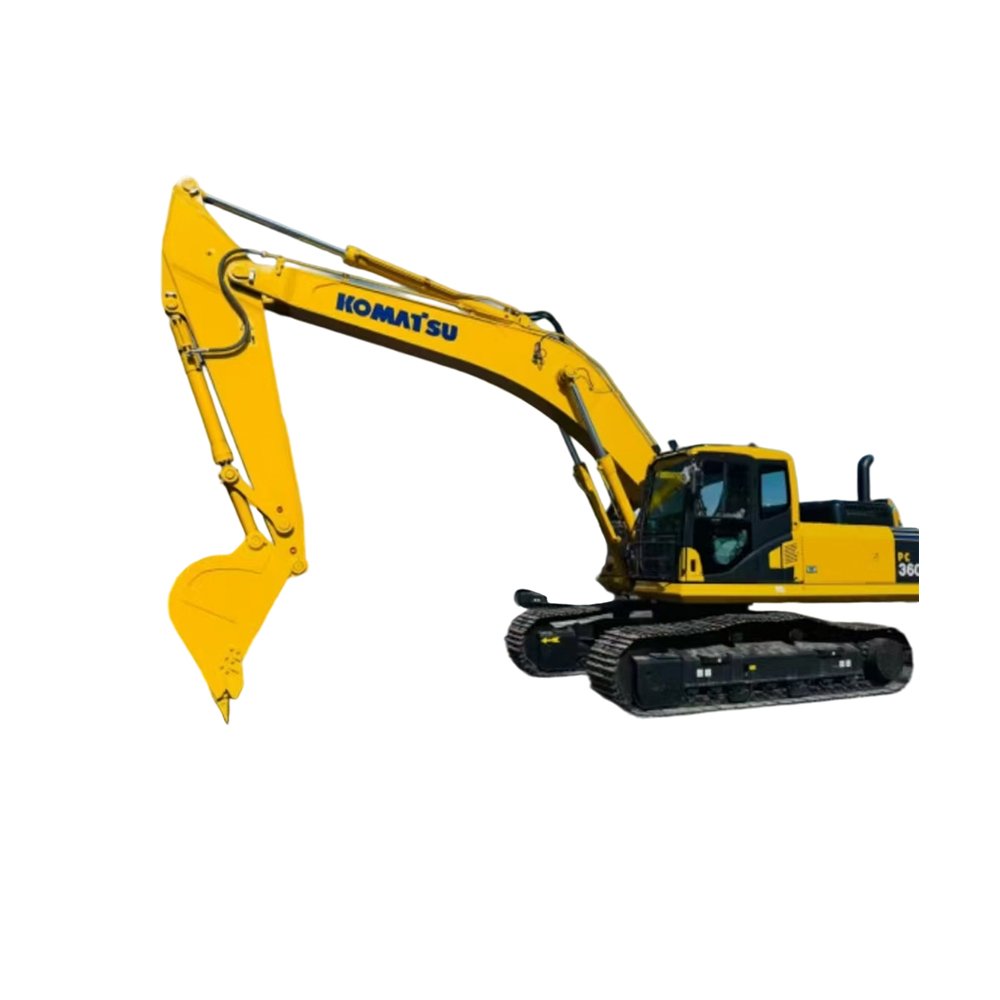

Used Komatsu 360
Used for 1980 hours,good condition.The Komatsu 360, powered by a SAA6D114E engine, handles tough jobs. Advanced fuel tech and an intelligent system boost efficiency. It has fast and economic modes. High – strength parts, a large counterweight ensure durability. The cab is comfy, and it has good maintenance features. Ideal for large – scale construction and mining.
Share:


Powerful power, energy saving and high efficiency

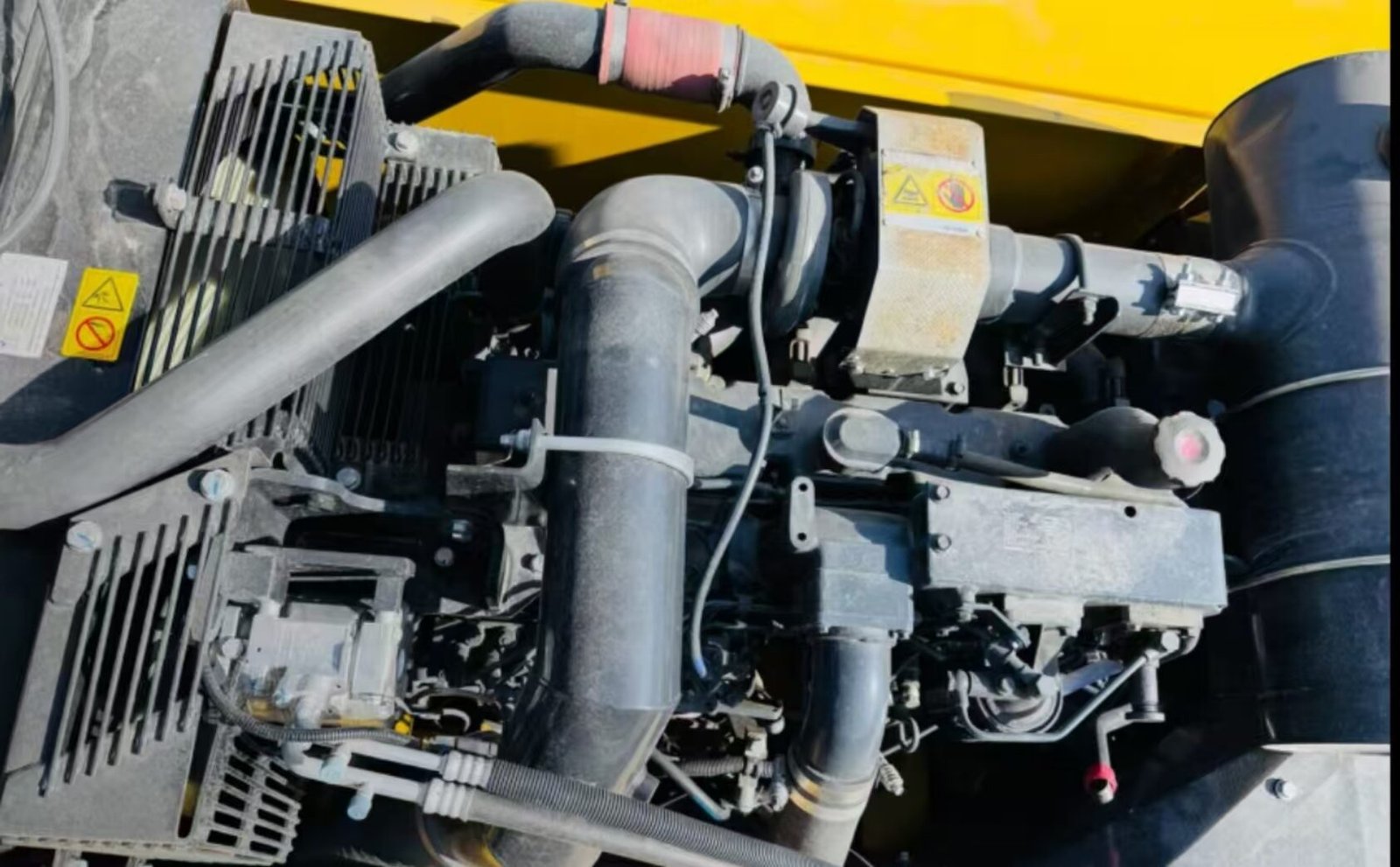

The Komatsu 360 is equipped with the Komatsu SAA6D114E engine, which can easily cope with various complex and high-intensity operating conditions, whether it is the excavation of hard rocks in mines or the handling of large amounts of earth in large-scale infrastructure construction. The engine uses advanced fuel injection technology and is equipped with an intelligent control system to ensure full combustion of fuel and improve fuel utilization. At the same time, the Komatsu 360 has a fast mode that prioritizes workload and an economic mode that prioritizes fuel saving. In the economic mode, when the equipment is in partial load conditions, the engine can automatically adjust the output power to reduce unnecessary fuel consumption, achieve a good balance between power and energy saving, and reduce operating costs.


Excellent product features to ensure stable operation
The high-strength structural parts treated with special processes and the large counterweight design make the Komatsu 300-7 sturdy and durable, ensuring safe operation; the spacious cab space, large-size operation display screen, and large-capacity automatic air conditioning provide a good working environment for operators; the radiator design is easy to clean, and the oil-water separator and additional fuel filter are standardly equipped to protect the engine and fuel system and reduce the probability of failure. It is also equipped with an advanced fault diagnosis system for convenient maintenance.


Wide application areas, helping various projects
Komatsu 360 performs well in large-scale infrastructure construction, large construction sites, and various mining operations.

Technical Parameter

Category | Parameters |
---|---|
Product name | komatsu 360 |
Engine model | Komatsu SAA6D114E |
Working weight | 33,000 kg |
Bucket capacity | 1.6 m³ |
Rated power | 180 kW/1,900 rpm |
Displacement | 8.27 L |
Bucket digging force | 227 kN |
Arm digging force | 171 kN |
Total length | 11,140 mm |
Total width | 3,190 mm |
Total height | 3,280 mm (including cab top structure) |
Total height of cab | 3,130 mm |
Total track length | 4,625 mm |
Track ground length | 3,700 mm |
Track shoe width | 600 mm |
Minimum ground clearance | 500 mm |
Rear end turning radius | 3,450 mm |
Travel speed | High speed: 5.5 km/h Medium speed: 4.5 km/h Low speed: 3.2 km/h |
Maximum digging depth | 7,380 mm |
Maximum digging height | 10,210 mm |
Maximum unloading height | 7,110 mm |
Maximum digging radius | 11,100 mm |
Maximum flow of main pump | 535 L/min |
Travel hydraulic circuit pressure | 37.3 MPa |
Slewing hydraulic circuit pressure | 27.9 MPa |
Fuel tank | 605 L |
Hydraulic oil tank | 188 L |
Engine oil replacement volume | 35 L |
