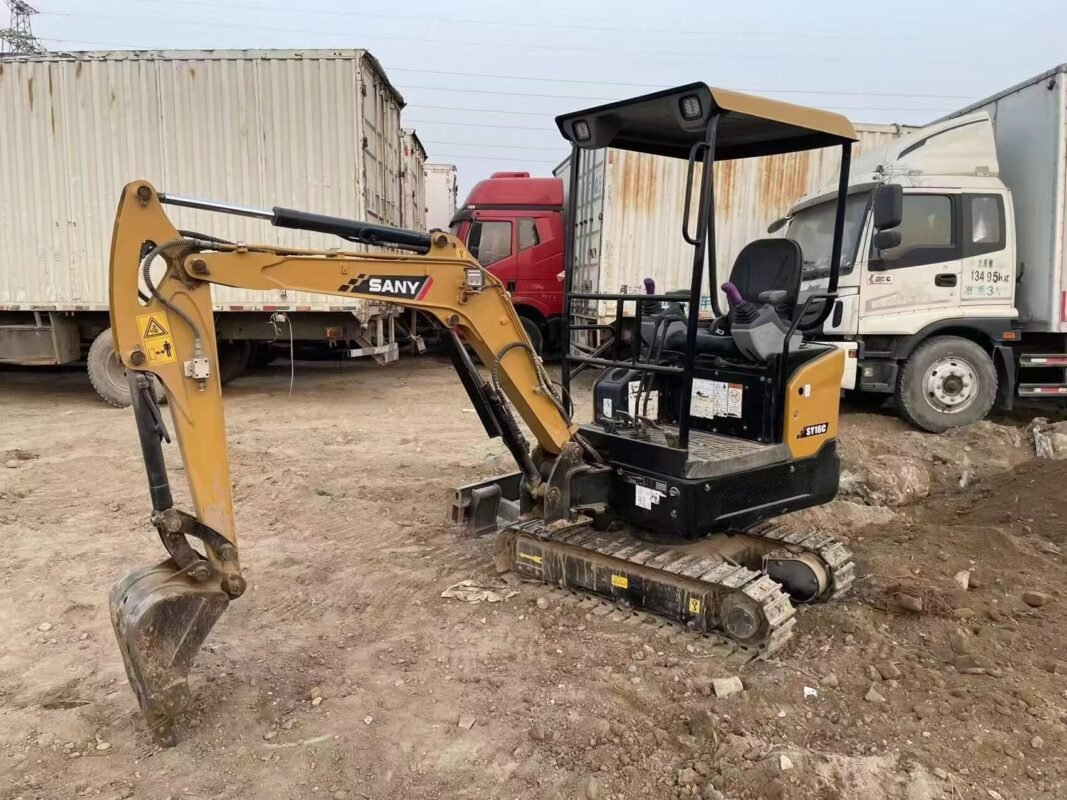

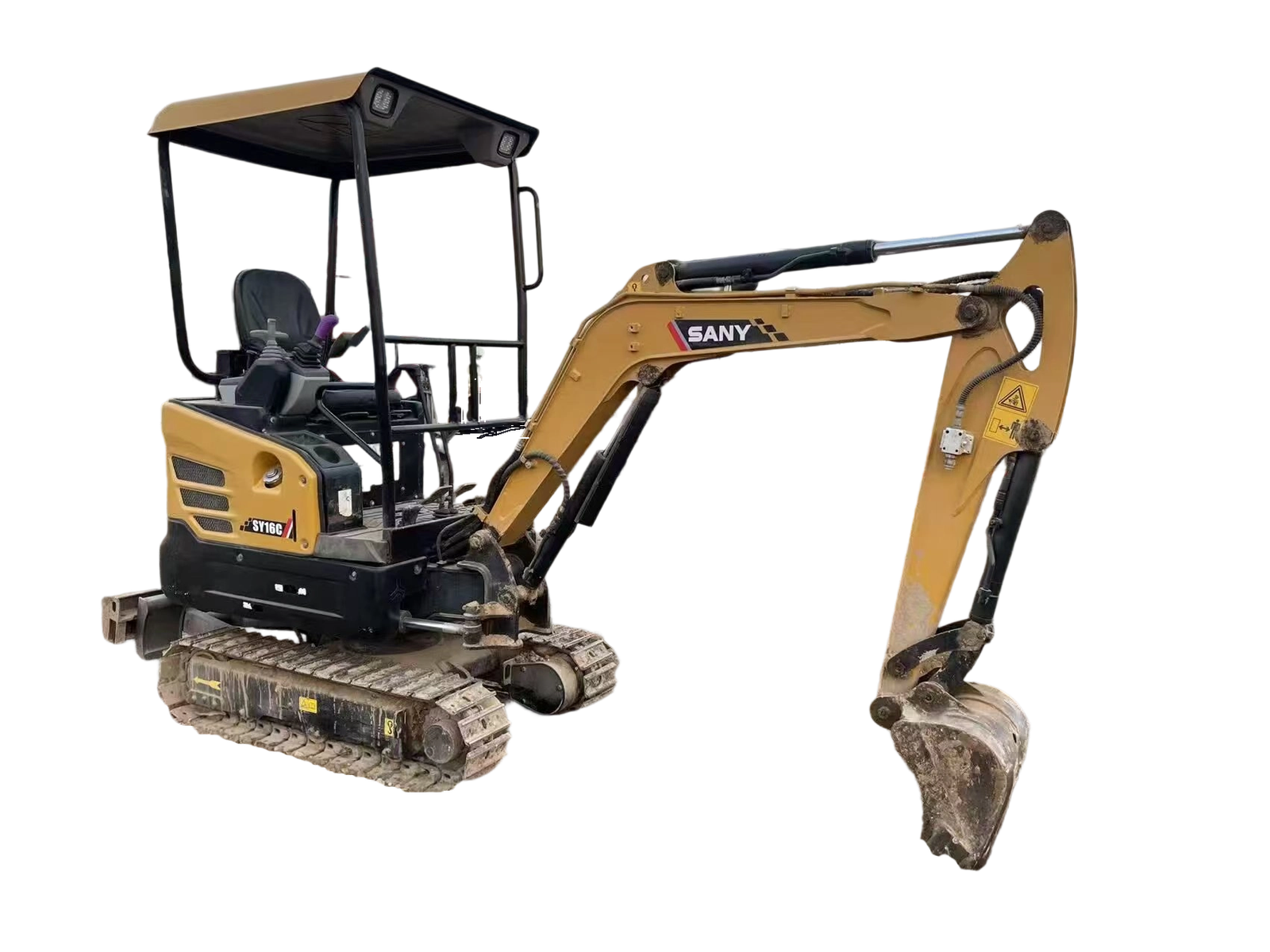

Used SANY 16C
Used for 3875 hours,good condition.The Sany SY16C, Sany’s smallest hydraulic excavator, is smart – energy – saving. It’s small (1.9 – ton) and flexible for small spaces, easy to operate with a load – sensitive system, powerful with a 15.4kw engine, easy to maintain, highly adaptable with upgraded parts, eco – friendly and safe, versatile with attachable tools, and has an intelligent system for real – time status monitoring.
Share:

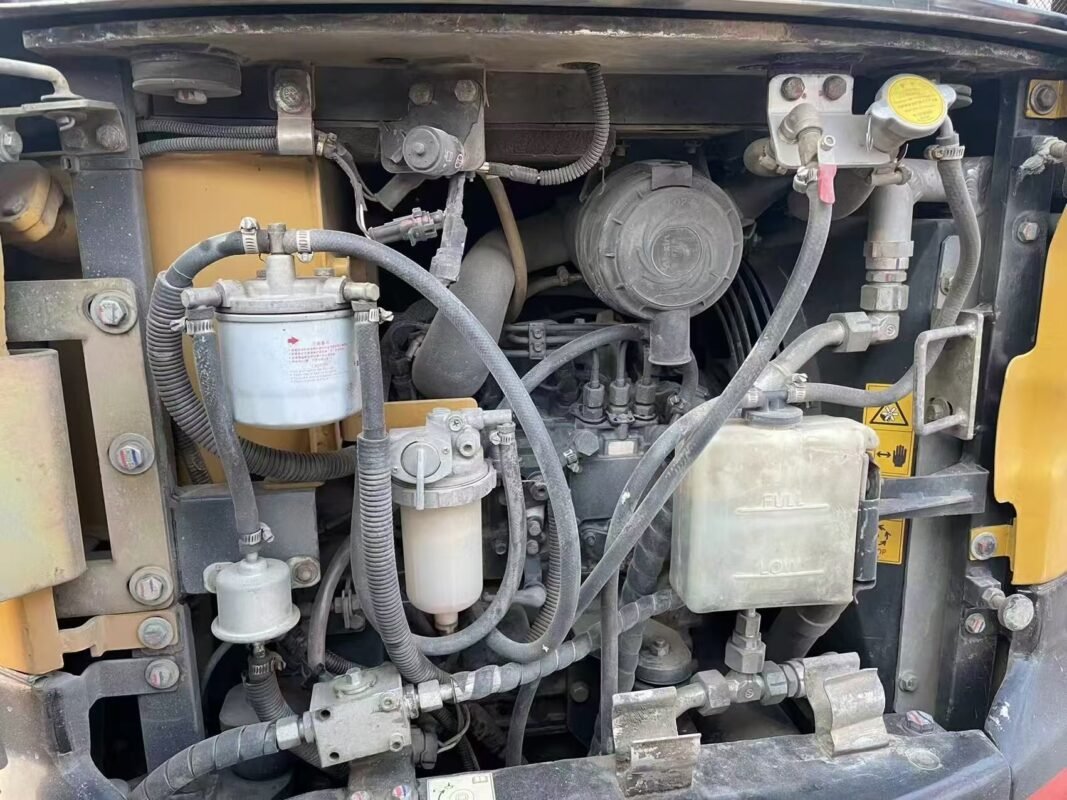

SY16C uses a Yanmar engine specially supplied by Sany, matched with a load-sensitive hydraulic system, and combined with independently developed power matching and debugging technology, it maximizes the high efficiency and energy saving of mini excavators. SY16 is Sany’s smallest hydraulic excavator at present. Smart energy saving is its biggest feature! 1. Small and flexible: The weight of the Sany 16 excavator is only 1.9 tons, which is suitable for working in small spaces, such as urban corners, farms, wall corners and ditch dredging. 2. Easy to operate: This model adopts a load-sensitive hydraulic control system, which is easy to operate and easy to use, so that even first-time users can quickly master it.


3. Powerful: Equipped with a 15.4 kW engine, it provides big power to meet various operational needs, such as digging, carrying and crushing.
4. Easy maintenance: It is simple and convenient to maintain, reducing maintenance costs and time.
5. High performance and adaptability: It has high maneuverability and adaptability, and can easily cope with various complex terrains and working conditions. Upgraded structural components, such as bucket tooth cross pin installation and boom cylinder thickening, enhance operating capacity and durability.


6. Environment frienfly and safety: It uses an engine that meets the National IV emission standards and is equipped with a high-precision oil-water separator and filter element to effectively protect the engine and extend its service life. A variety of noise reduction technologies and shock absorption systems are used in the design to improve driving comfort and safety.
7. Versatility: It can be equipped with a lot of accessories for various operations, such as breaker hammers, weeding rakes and so on, which can improve work efficiency and meet flexibility.
8. Smart control system: It is equipped with an intelligent control system that can monitor the operating status of the excavator in real time to ensure safety during construction.

Technical Parameter

Category | Parameters |
---|---|
Product name | Sany 16 |
Engine model | Yanmar 3TNV70 |
Operating Weight | 1,850 kg |
Bucket capacity | 0.04 m³ |
Rated power | 10.3 kW / 2,200 rpm |
Displacement | 0.854 L |
Bucket digging force | 15.2 kN |
Digging force of bucket arm | 9.2 kN |
Length × width × height | 3,575 mm × 980 mm × 2,420 mm |
Maximum digging depth | 2,360 mm |
Maximum digging radius | 4,000 mm |
Maximum digging height | 3,665 mm |
Maximum unloading height | 2,635 mm |
Travel speed | 2.7–3.7 km/h (two-speed gearshift) |
Gradability | 58% (approx. 30°) |
Track configuration | rubber track, width 230 mm |
