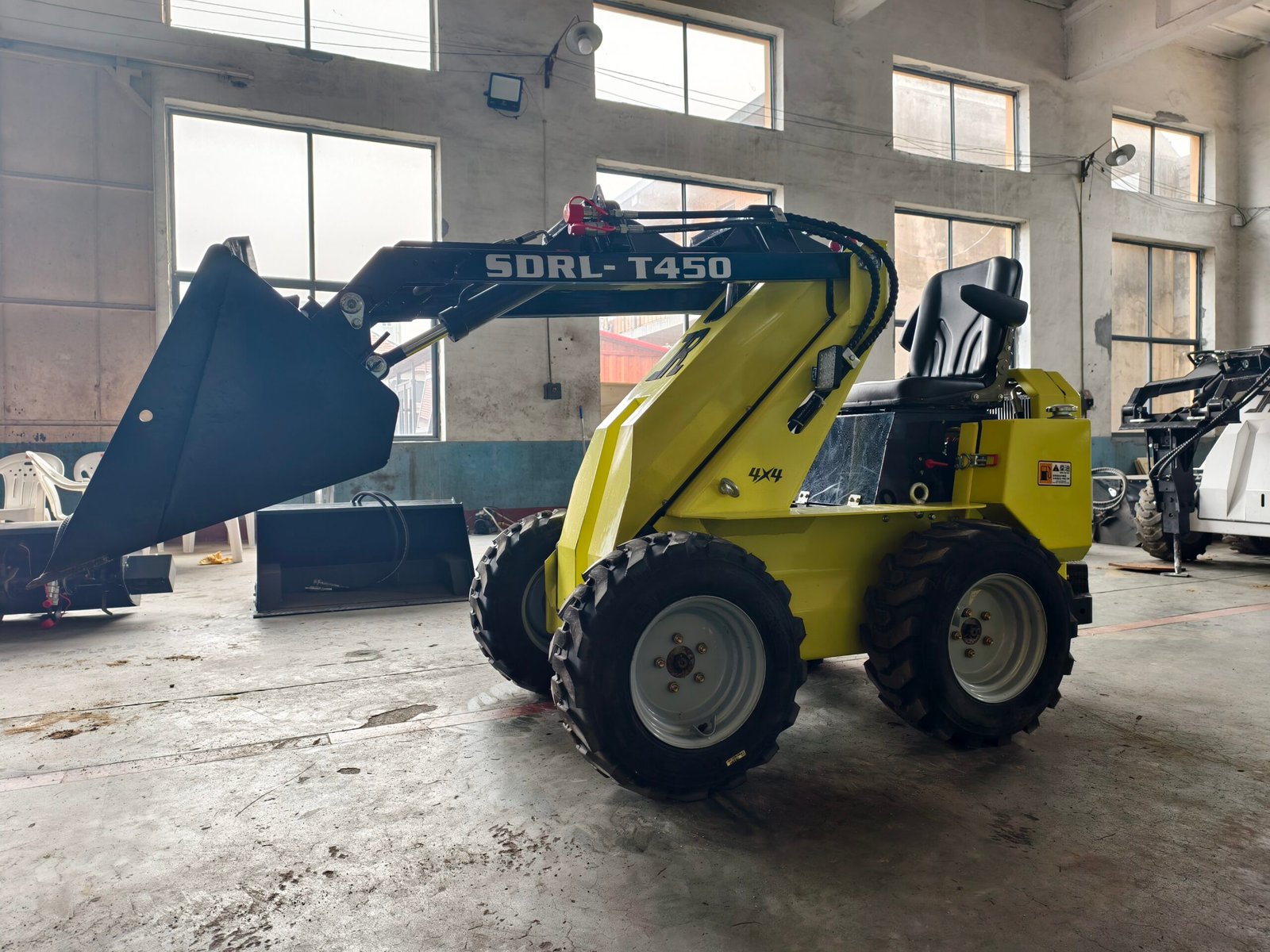

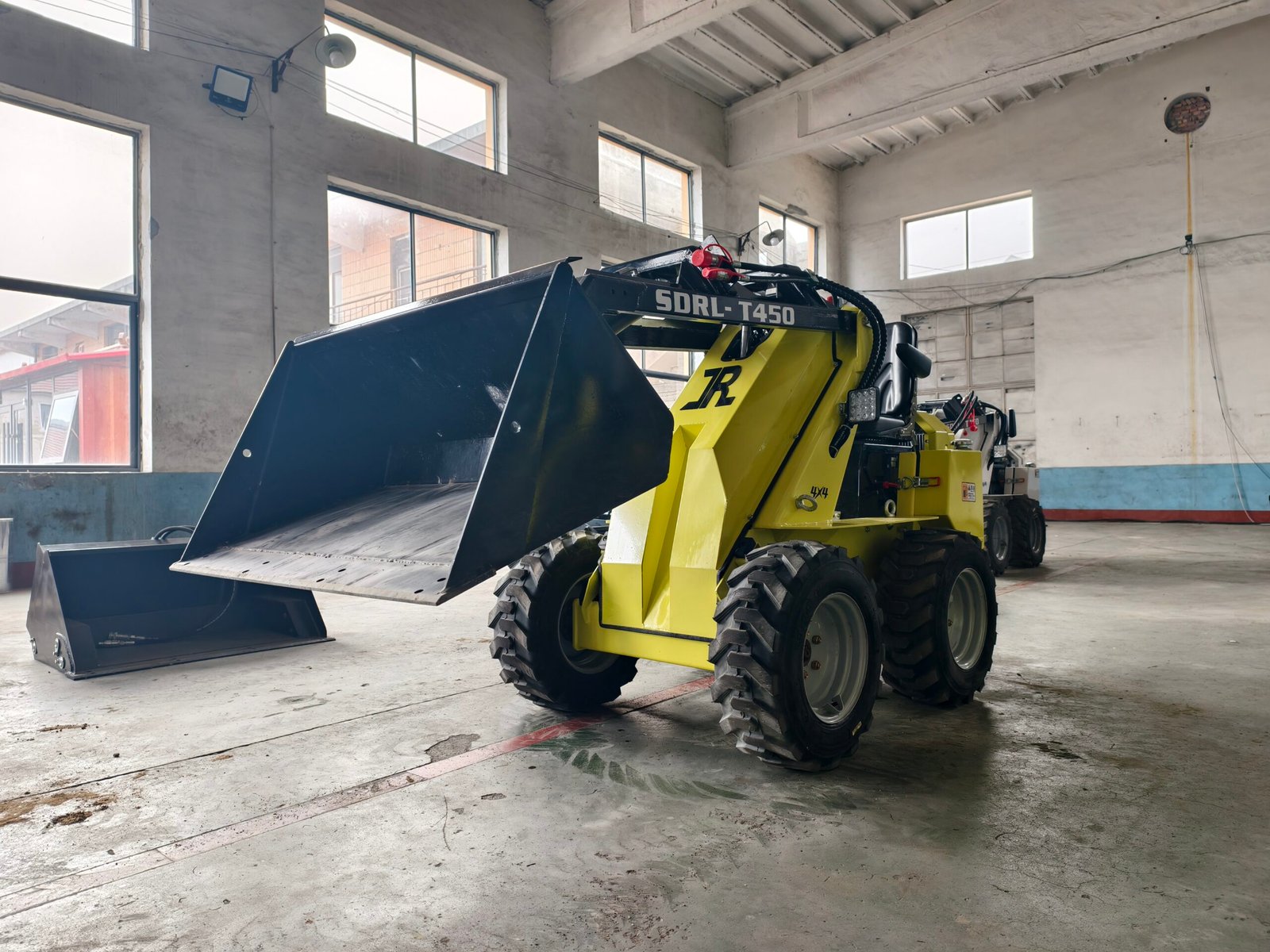

SDRL-T450 is a domestic compact skid-steer loader, positioned as a “compact, flexible + multi-functional operation” equipment, and is well-suited for small-space engineering scenarios.
It adopts an ultra-lightweight design, with an overall weight of about 1.5-2 tons and a body width of only 1.2-1.5 meters. It can easily access narrow areas such as basements, alleys, and warehouses. It also enables 360° in-place skid steering, offering extremely high operational freedom in confined spaces.
In terms of power, it is equipped with a small-displacement diesel engine of 15-25kW, which balances power and fuel efficiency. It has a maximum travel speed of 8km/h, and its low-speed, high-torque characteristic makes it suitable for heavy-load short-distance hauling. With a rated load capacity of 300-500kg, it comes standard with a 0.2-0.3 cubic meter bucket. It also supports quick attachment changes (such as breakers, sweepers, log grapples, etc.), covering multiple operational needs including loading, crushing, cleaning, and grabbing & transporting.

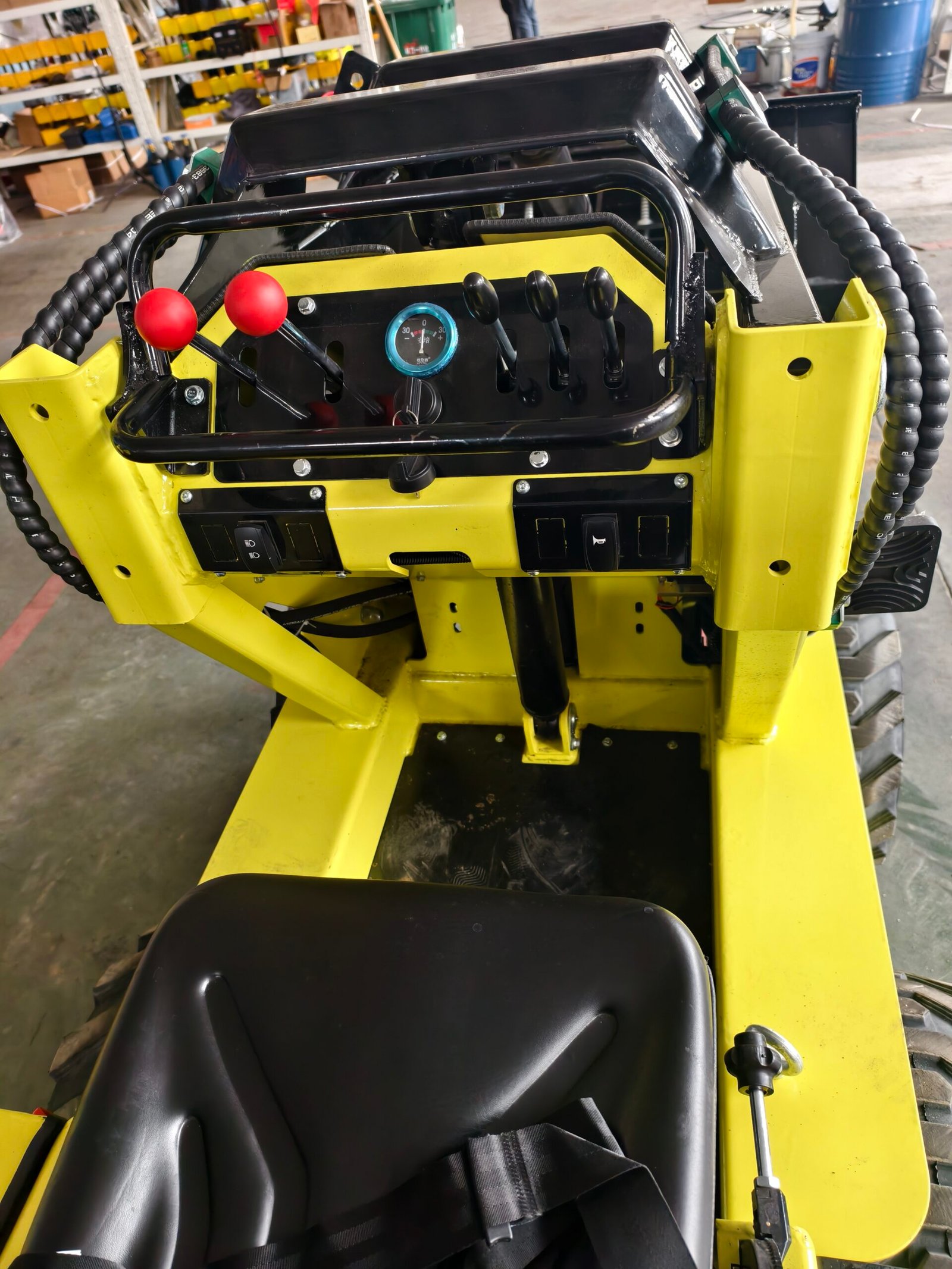

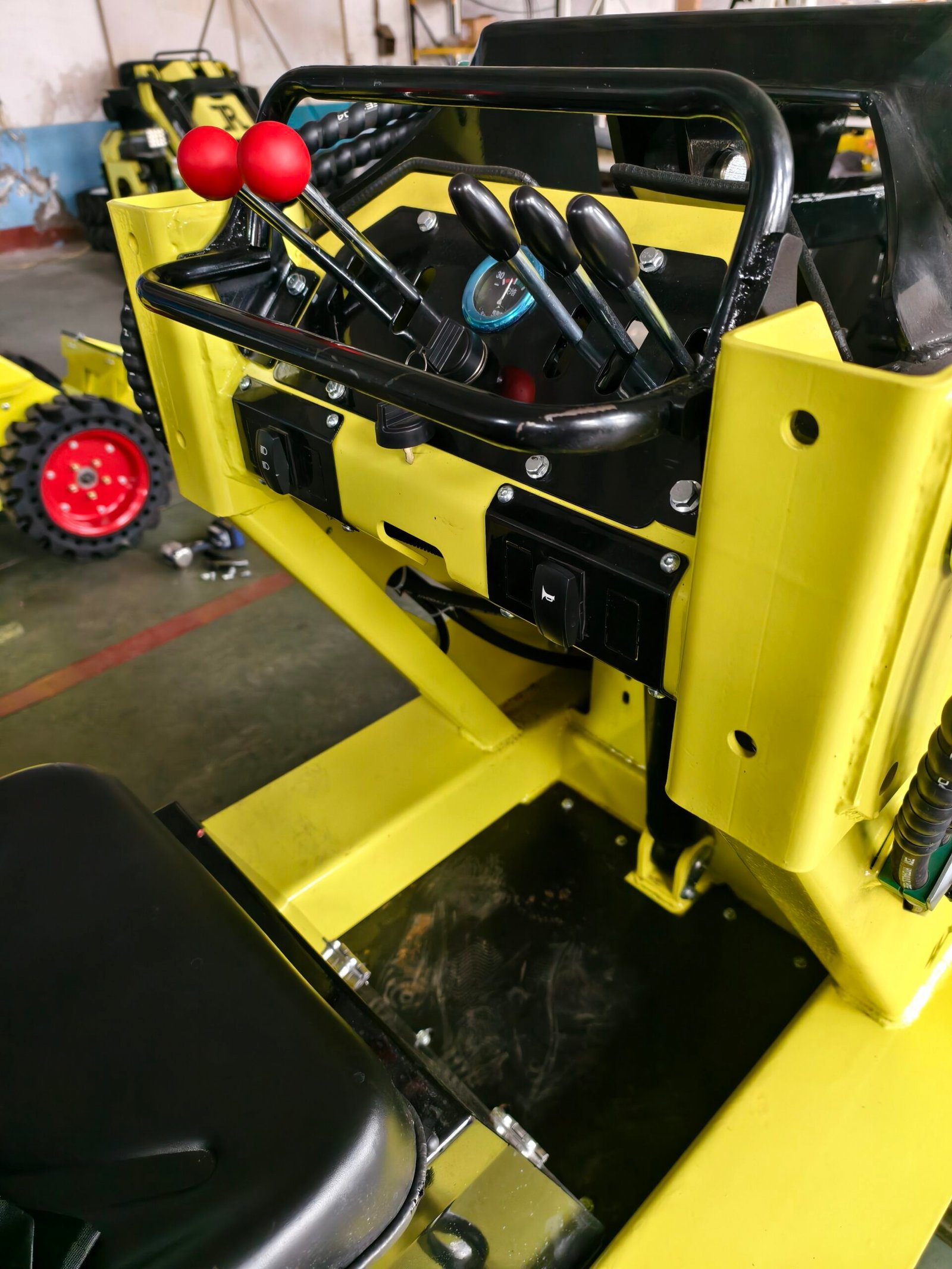

Operationally, it uses either joystick or foot pedal controls, so the learning curve is low—making it ideal for individual operators and small construction teams. Its typical application scenarios include rural infrastructure yard leveling, interior renovation waste removal, livestock farm manure cleaning, and greenhouse material handling. It combines practicality with excellent cost-effectiveness.
Technical Parameter
| Configuration Sheet of Small Skid-Steer Loader | |
|---|---|
| Engine Model | Diesel:KOOP 2-cylinder 292F - 22 HP (Customizable) |
| Hydraulic System Pressure | 20 MPa |
| Hydraulic Oil Capacity | 40 L |
| Hydraulic System | Three-circuit (Three-pump) |
| Transmission System | Hydrostatic Transmission |
| Travel Speed | 0-8 km/h |
| Drive Mode | Four-wheel Drive |
| Running System | Hydraulic Motor |
| Rated Load Capacity | 450 kg |
| Minimum Ground Clearance | 225 mm |
| Lifting Height | 2100 mm |
| Overall Machine Weight | 1020 kg |
| Fuel Tank Capacity | 20 L |
| Battery Brand/Capacity | Camel / 80 AH |
| Standard Bucket (Attachment) | 1100×420×600 mm (Standard configuration); More than 30 types of attachments available for customization |
| Tire Model | 23X8.5-12 (Standard); 20X8.00-10 (Optional) |
| Machine Dimensions (L×W×H) | 1.96 m × 1.1 m × 1.46 m |
