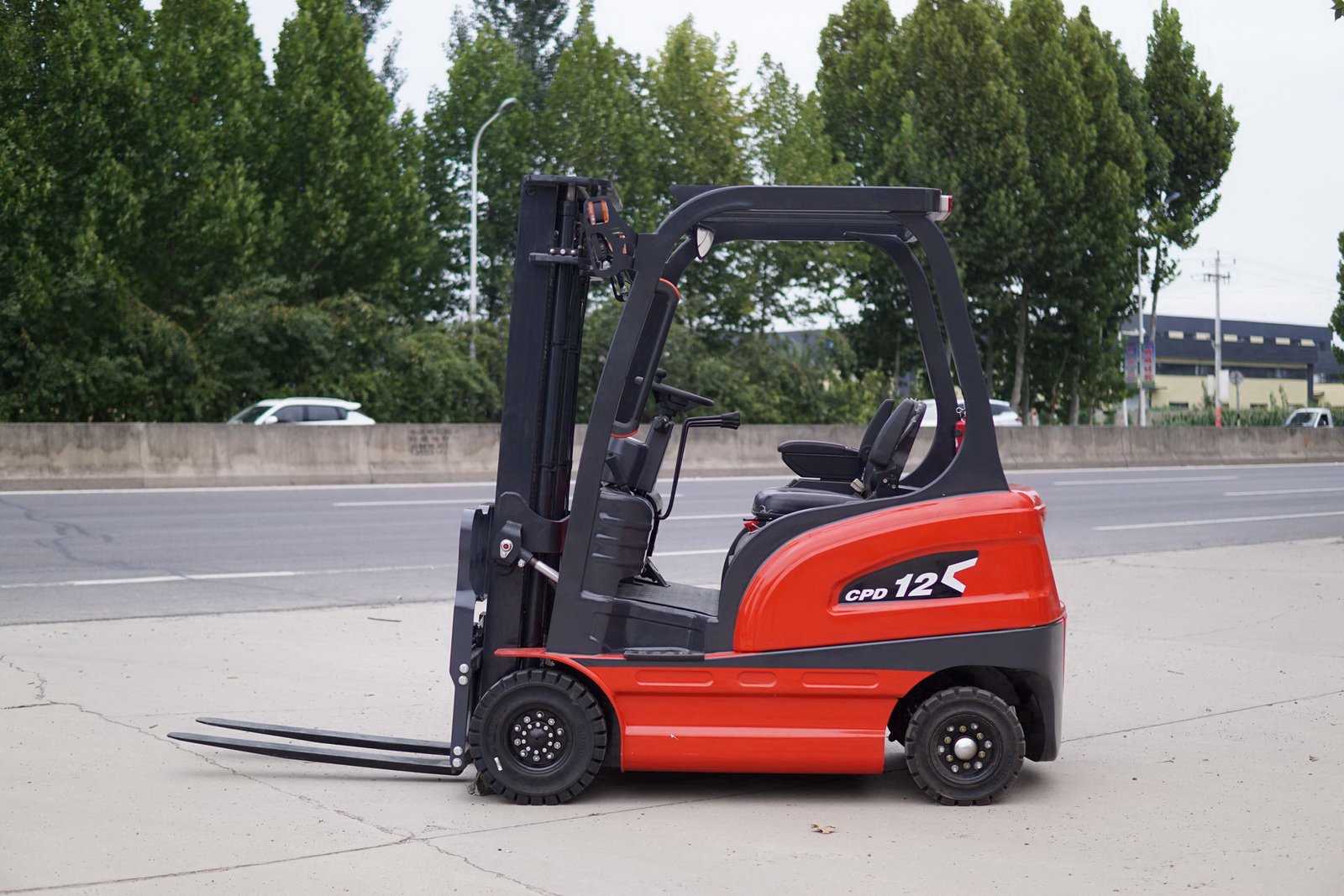

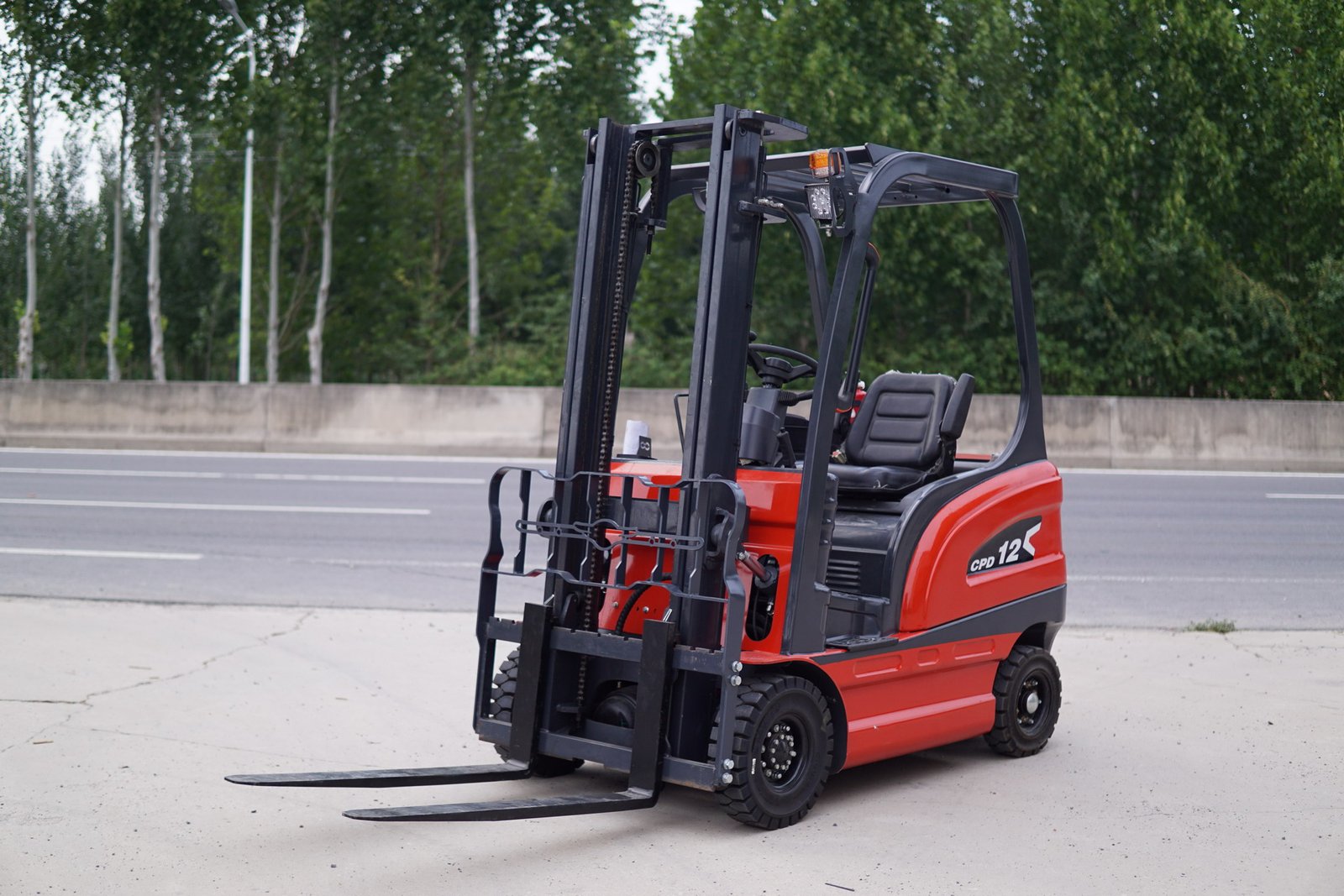

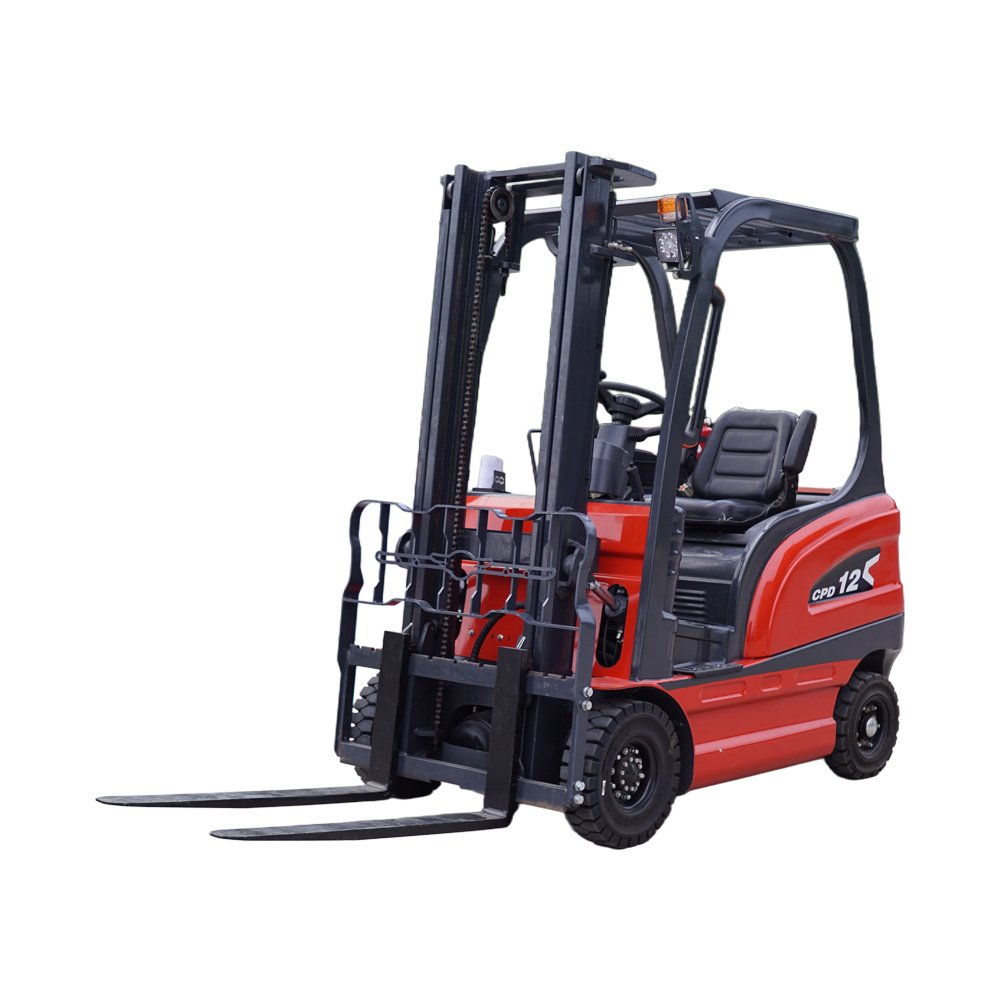

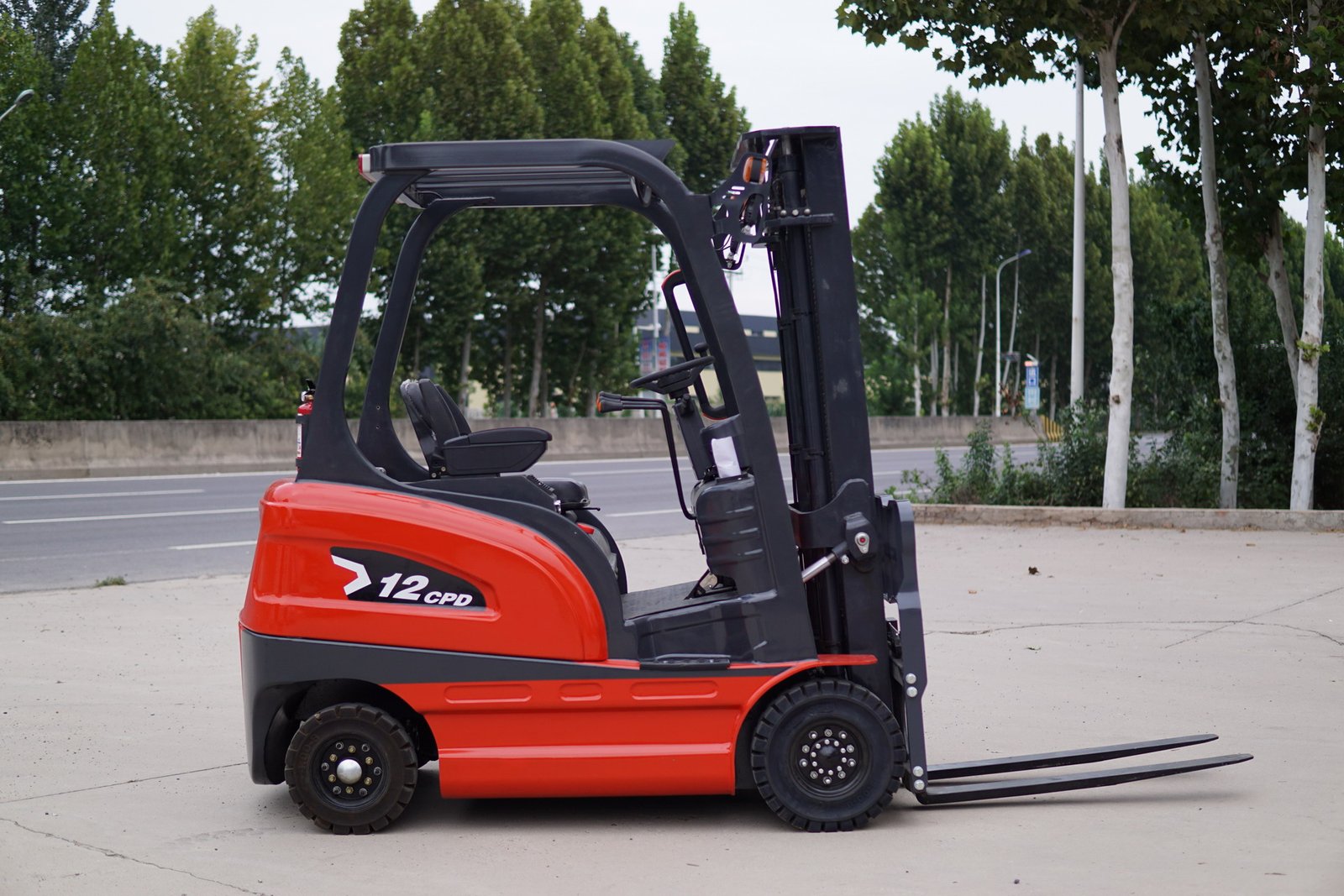

Tonghao CPD12 Electric Forklift

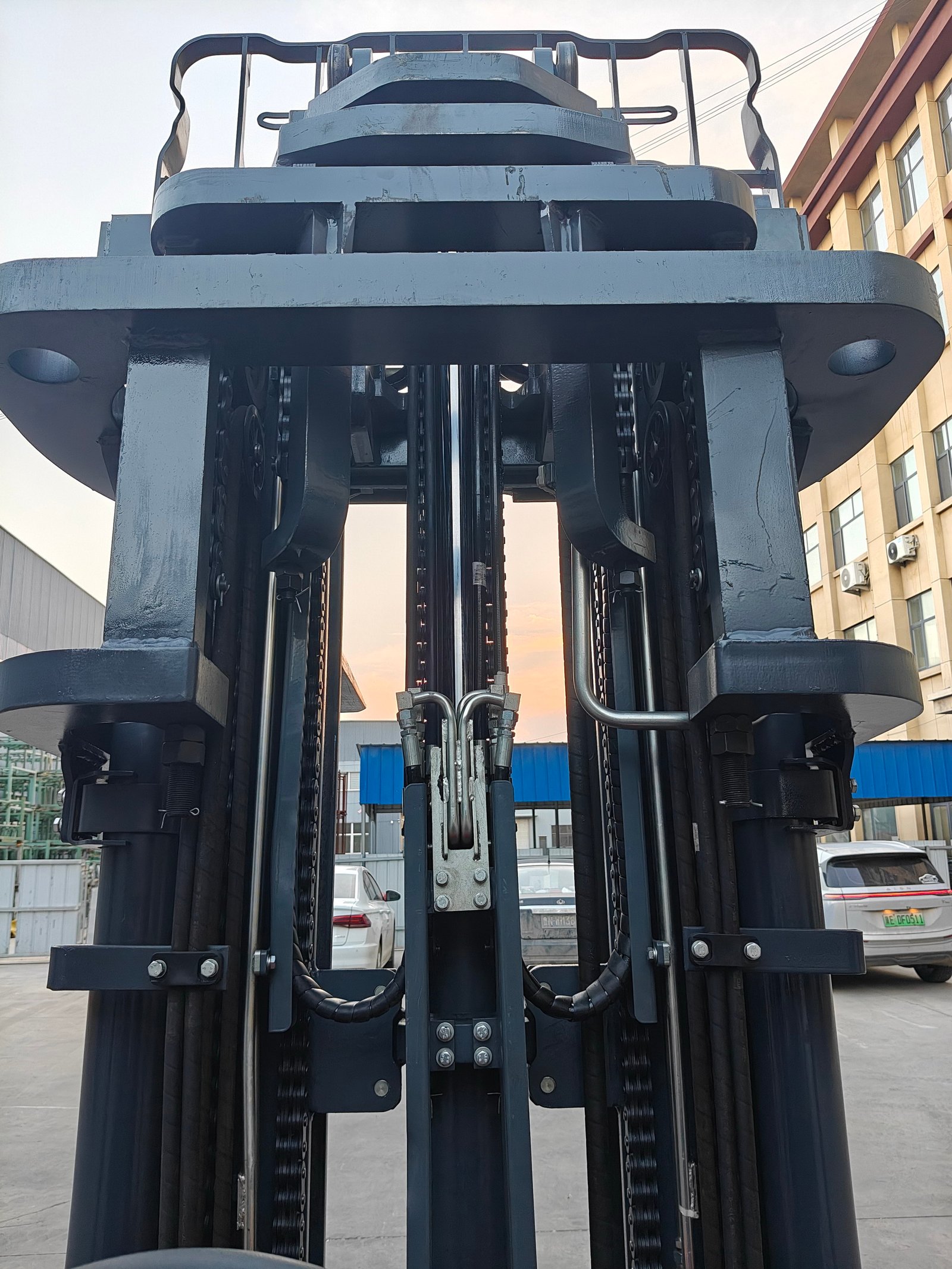

Tonghao CPD12 forklift has outstanding performance and design. Its main mast uses 12# steel channel, is equipped with an integrated high-quality forged fork and has a forward and backward tilt function, which not only ensures high strength and stability, but also helps the operator to accurately stack goods.

The vehicle reserves space for battery expansion, which can be adjusted according to the workload to meet the needs of long-term operations. At the same time, the high-strength acrylic protective plate at the mast,

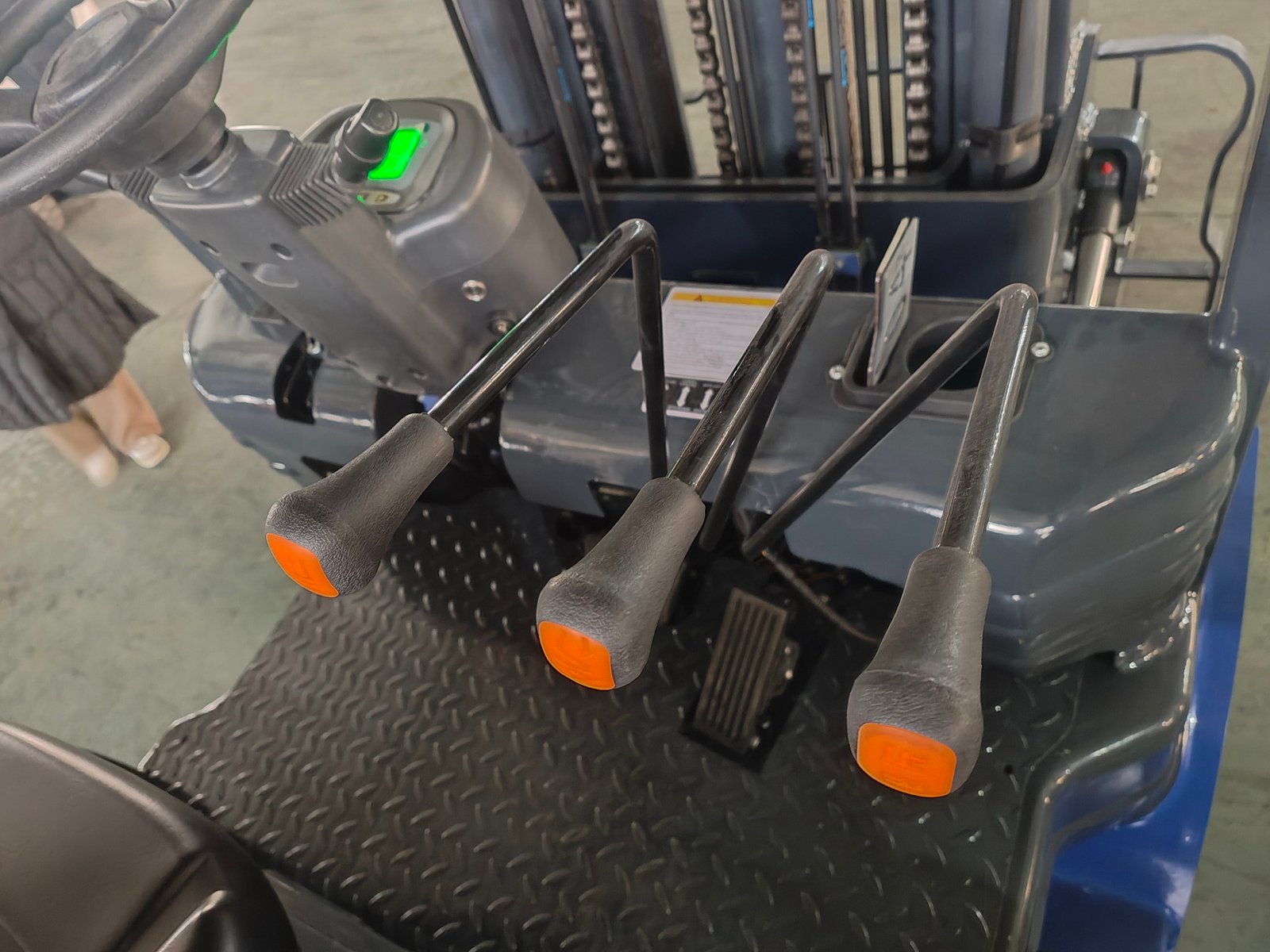

the protective arms on both sides of the driver’s seat, the emergency reverse switch on the control handle, and the lifting electric limit and high cargo speed limit devices, etc., all build a comprehensive safety protection system, and the pedal is equipped with a shock absorber to bring a comfortable operating experience.

In terms of configuration parameters, the CPD12 forklift has a rated load capacity of 1200kg and a load center distance of 400mm. Its full-load travel speed is 5.2km/h, empty-load is 5.5km/h, full-load lifting speed is 95mm/s, empty-load is 130mm/s, full-load lowering speed is 105mm/s, empty-load is 100mm/s.

In addition, different brands of CPD12 forklifts have their own characteristics in details. Some models have variable wheelbase design, EPS electronic steering, cornering deceleration and other functions, which can operate flexibly in narrow spaces and are suitable for warehousing, logistics, manufacturing and other scenarios, effectively improving the efficiency and safety of material handling.

Tonghao electric forklift operating demonstration video
