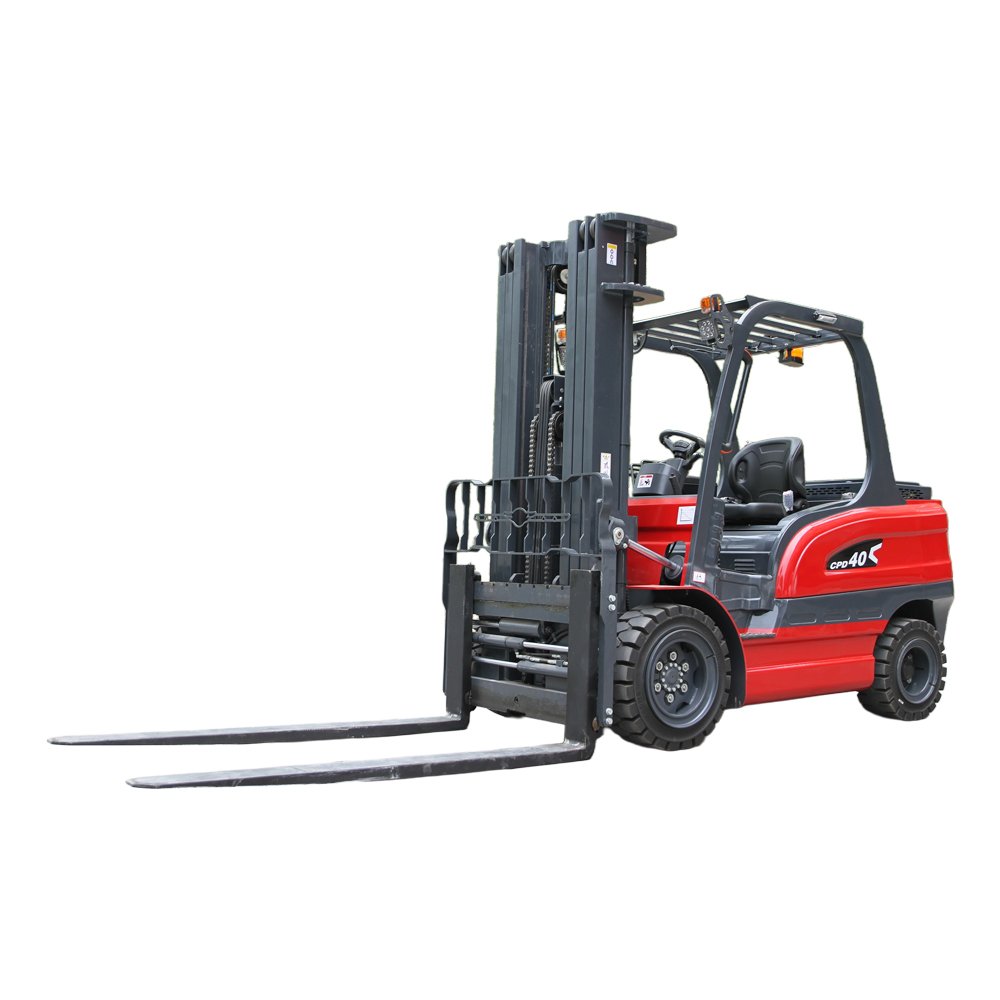

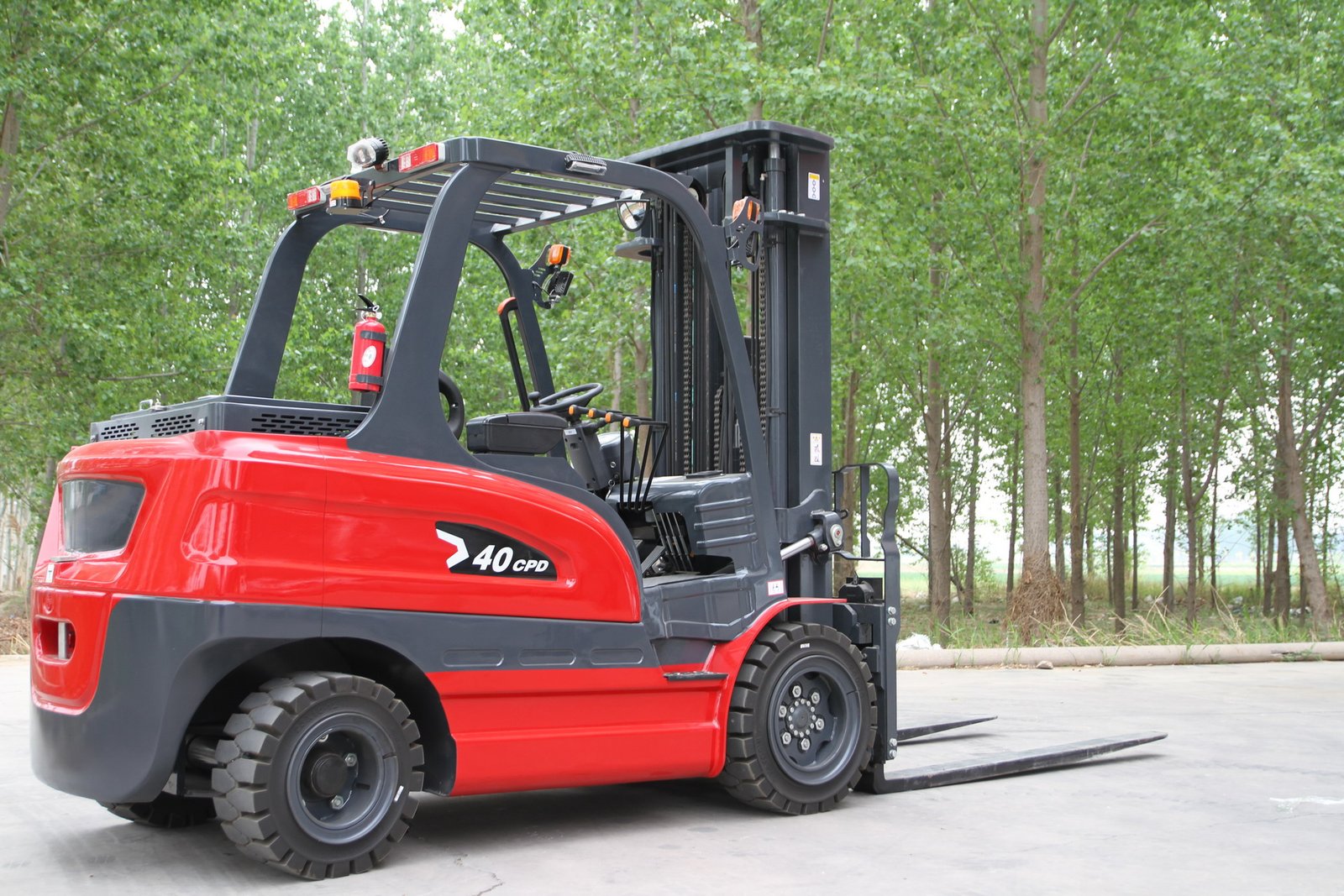

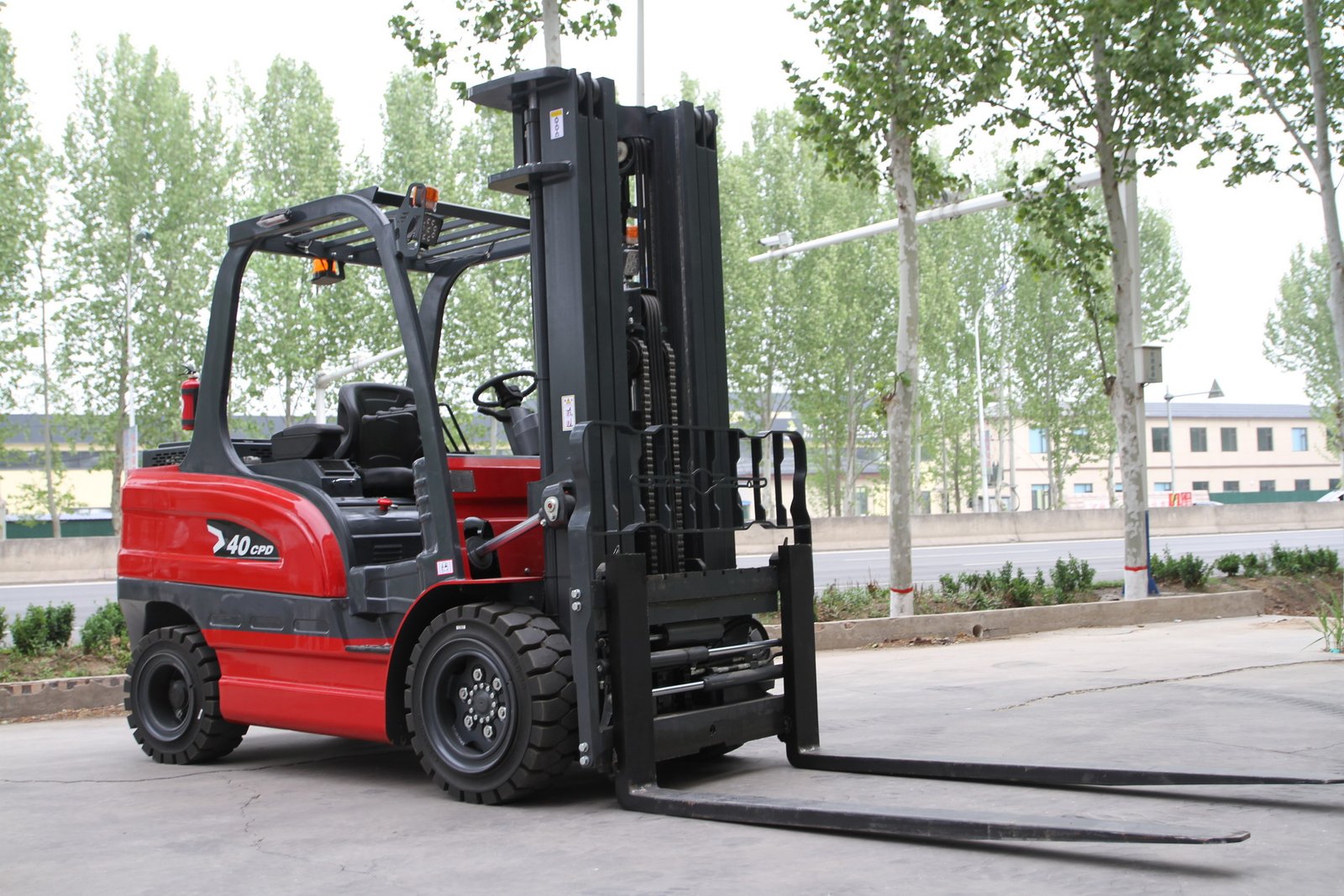

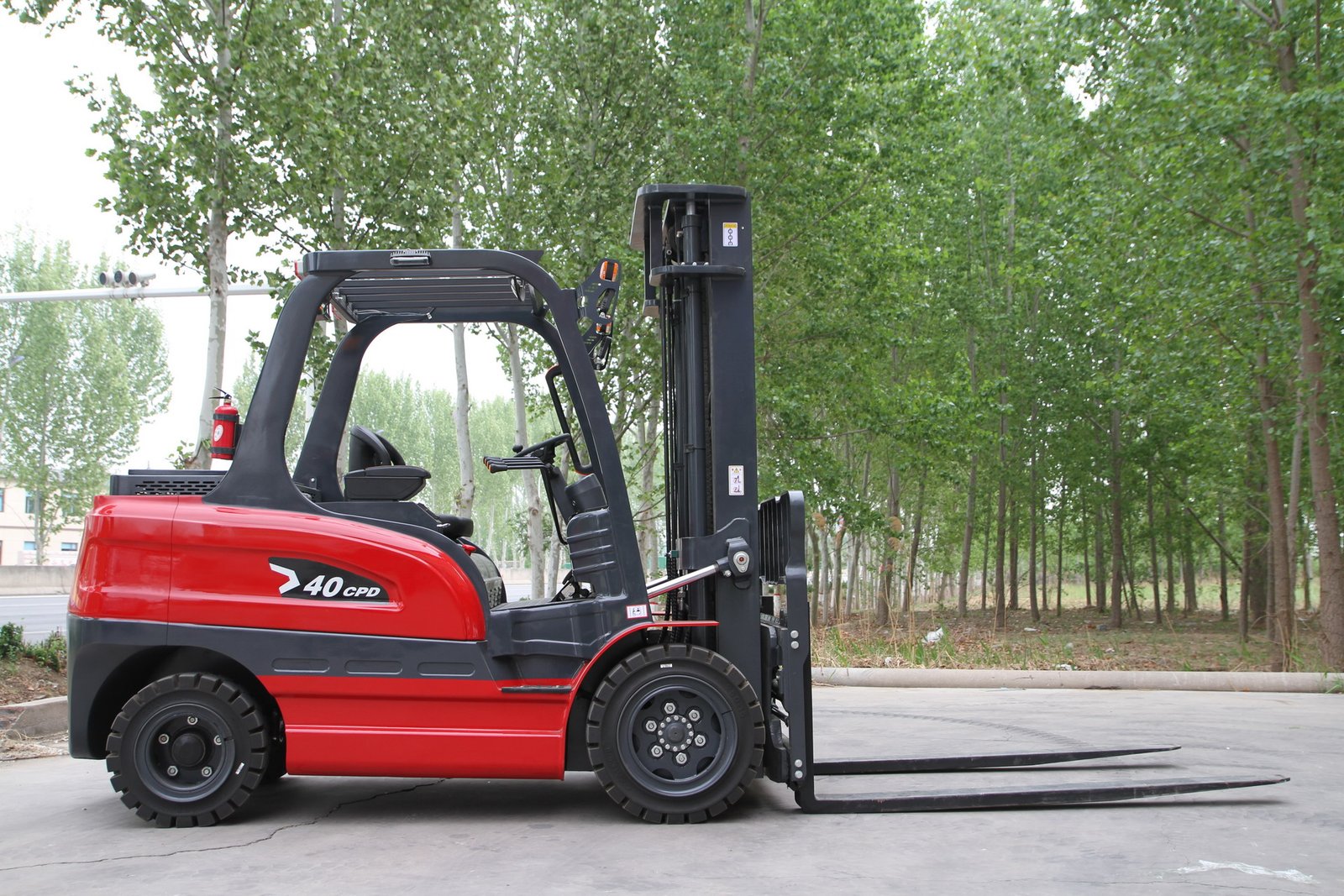

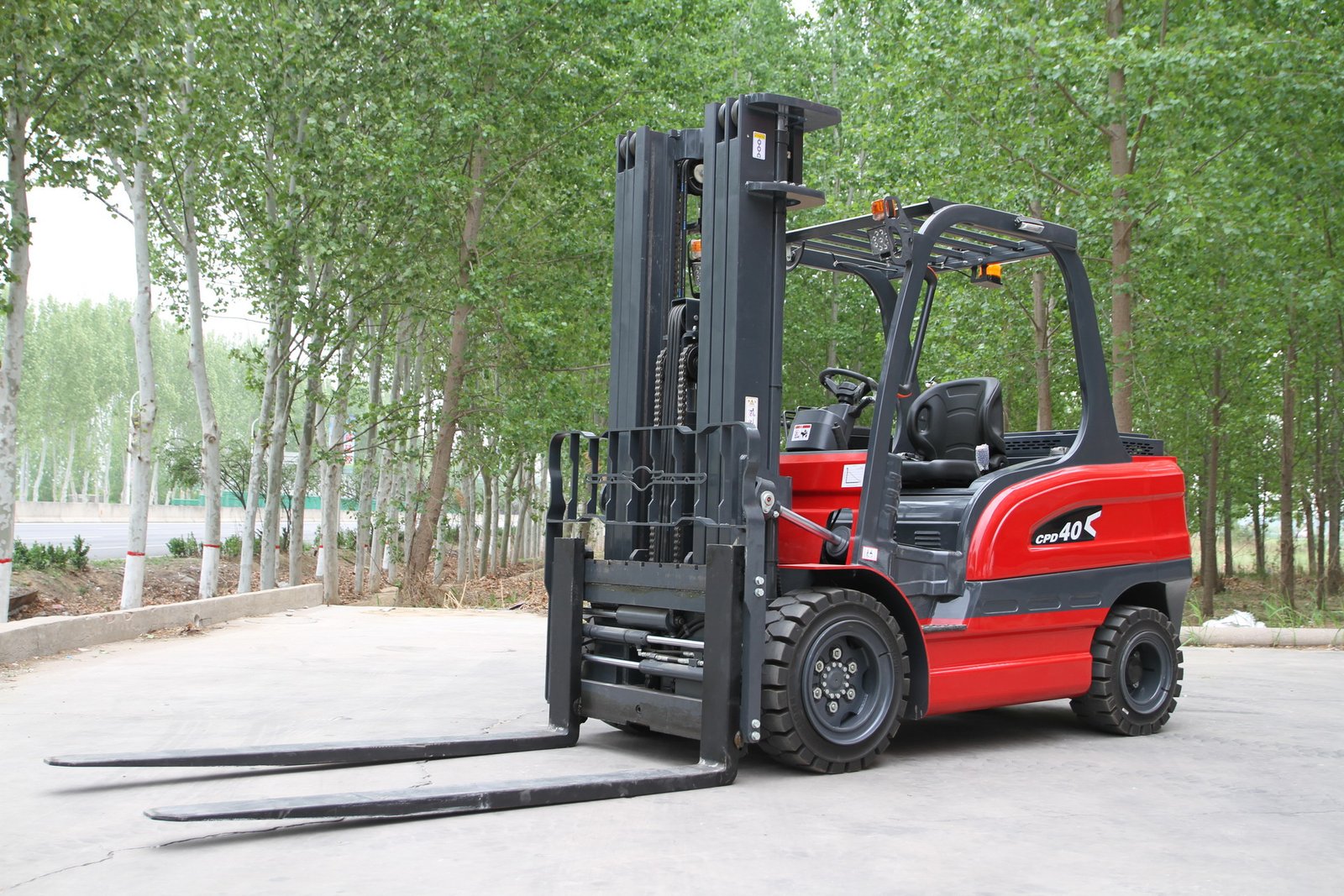

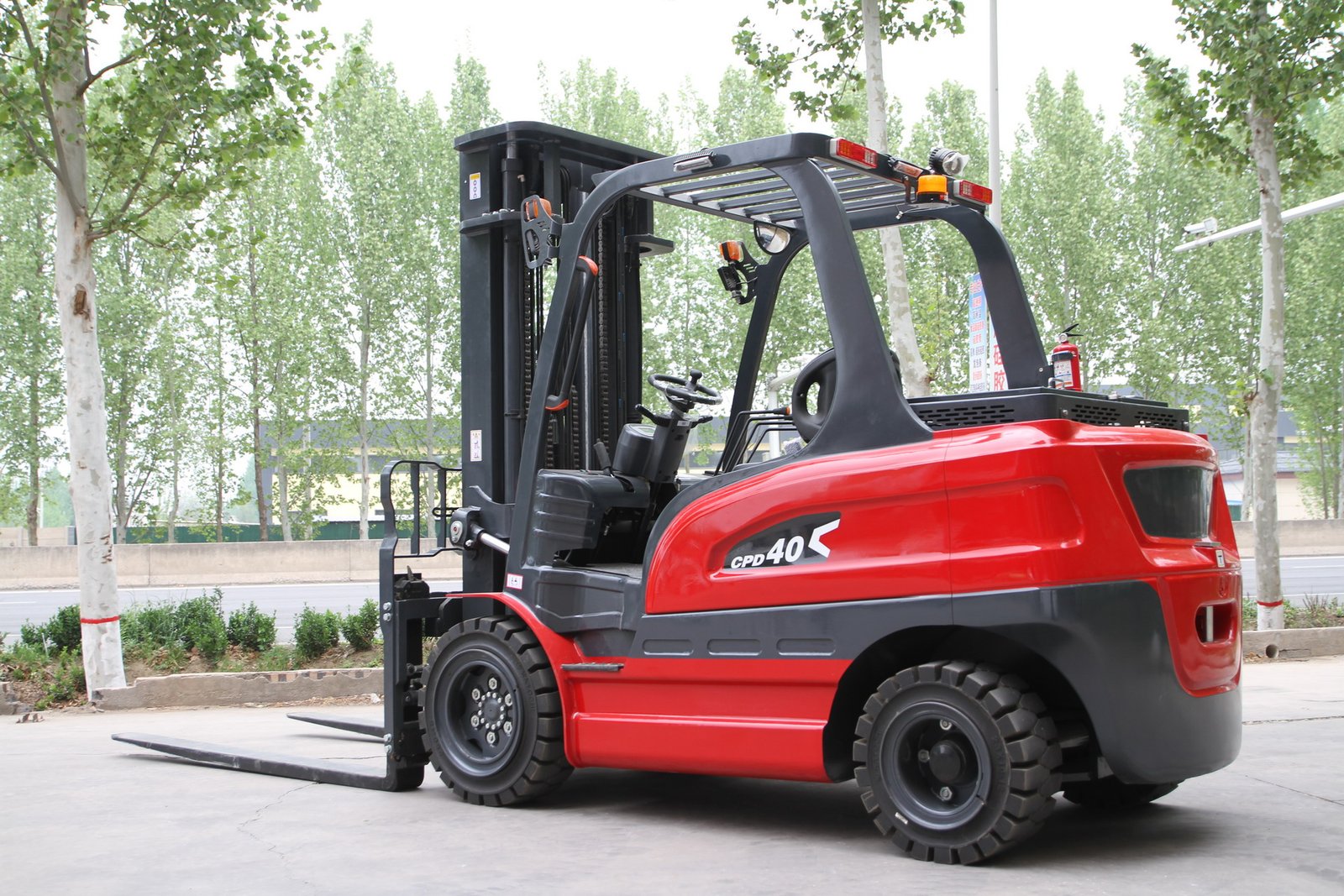

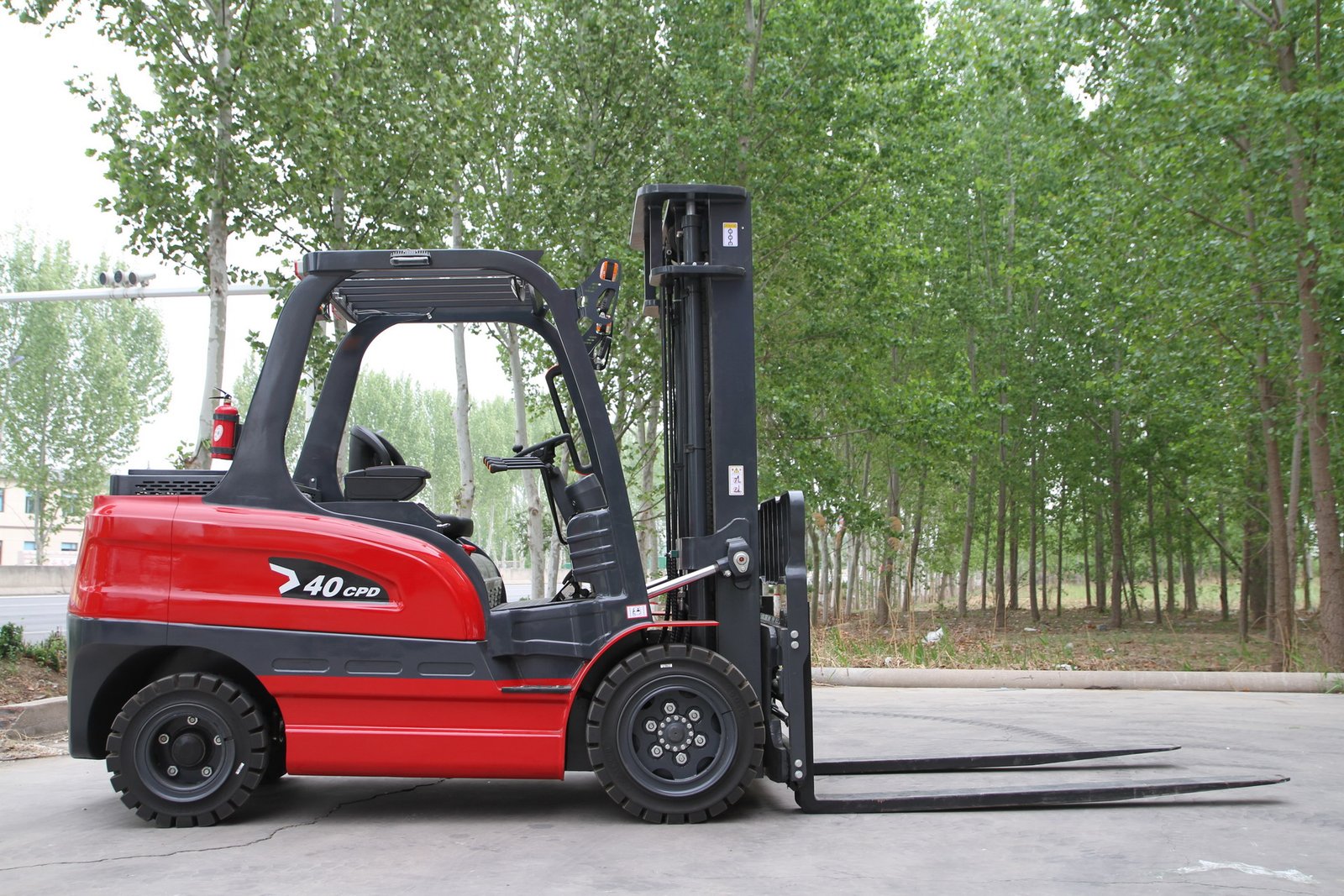

Tonghao CPD40 Electric Forklift
The CPD40 electric counterbalanced forklift, boasting a 4000kg rated load, excels in heavy – duty material handling. Its compact, sturdy build allows for flexible operation in tight spaces, while the eco – friendly electric drive with advanced battery management ensures long – term use. Ergonomically designed with an intuitive interface, it offers comfortable operation, adaptable speeds, and low – maintenance components. With optional safety features, it’s ideal for various material handling tasks across warehousing, ports, and manufacturing.
Share:


The CPD40 forklift is a powerful and practical electric counterbalanced forklift. With a rated load of up to 4000kg, it can easily handle the handling of heavy materials. The forklift has a compact and sturdy structure, good stability and passability, and can operate flexibly in narrow storage spaces or complex factory environments.



The efficient electric drive system achieves zero emissions and low noise, which conforms to the concept of green environmental protection. The advanced battery management technology effectively extends the battery life and service life, which can meet the needs of long-term continuous operation.


In terms of configuration and operating experience, the CPD40 forklift also has outstanding performance. The cab follows ergonomic design, the operation interface is simple and easy to understand, the control handle is comfortable to operate, and the comfortable shock-absorbing seat and wide field of view greatly reduce the driver’s fatigue.


The vehicle’s driving speed, lifting and lowering speed can adapt to a variety of working conditions, significantly improving the operating efficiency. The maintenance-free AC motor and fully sealed maintenance-free battery greatly reduce the cost and frequency of later maintenance.

In addition, optional safety configurations such as intelligent reversing images and anti-collision warnings ensure all-round operational safety, making it widely applicable to material handling scenarios in multiple industries such as warehousing and logistics, ports and terminals, and manufacturing.

Technical Parameter

Model | CPD40 | ||
---|---|---|---|
Power type | Electric | ||
Operation type | Saddle-type | ||
Load | Q | kg | 4000 |
Load center distance | C | mm | 600 |
Front overhang | X | mm | 460 |
Wheelbase | y | mm | 1885 |
Weight (including battery) | kg | 5300±200 | |
Tire type, drive wheel/steering wheel | Solid tire | ||
Drive wheel size (diameter x width) | mm | 250-15 | |
Steering wheel size (diameter x width) | mm | 23X10-12 | |
Drive wheel, number of steering wheels (x = drive wheel) | mm | 2X/2 | |
Drive wheel track | b10 | mm | 1140 |
Steering wheel track | b11 | mm | 1080 |
Mast and fork tilt angle | α/ β (°) | 5/9 | |
Mast height after lowering | h1 | mm | 2310 |
Maximum lifting height of standard mast | h3 | mm | 3000 |
Mast height when lifted to the highest level | h4 | mm | 4250 |
Head guard (cockpit) height | h6 | mm | 2260 |
Seat surface height | h7 | mm | 1180 |
Height of towing pin center | h10 | mm | 620 |
Vehicle length | l1 | mm | 4190 |
Length to vertical surface of fork | l2 | mm | 2920 |
Overall width | b1/ b2 | mm | 1360 |
Fork size | s/ e/ l | mm | 50X150X1220 |
Fork frame outer width | b3 | mm | 1290 |
Ground clearance of lower end of fully loaded mast | m1 | mm | 175 |
Minimum ground clearance of vehicle body | m2 | mm | 160 |
Aisle width of pallet is 1200 wide x 1000 long | Ast | mm | 4420 |
Aisle width of pallet is 800 wide x 1200 long | Ast | mm | 4600 |
Turning radius | Wa | mm | 2720 |
Travel speed, fully loaded/unloaded | km/ h | 12/13.5 | |
Lifting speed, fully loaded/unloaded | m/ s | 0.28/0.4 | |
Lowering speed, fully loaded/unloaded | m/ s | 0.45/ 0.4 | |
Maximum climbing grade , full load/no load | % | 15 | |
Service brake type | Hydraulic + mechanical | ||
Parking brake type | Mechanical | ||
Drive motor rated power S2 60 minutes | kW | 12 | |
Lifting motor rated power S3 15% | kW | 13.5 | |
Battery voltage/nominal capacity K5 | Ah | ||
Drive control type | AC |
