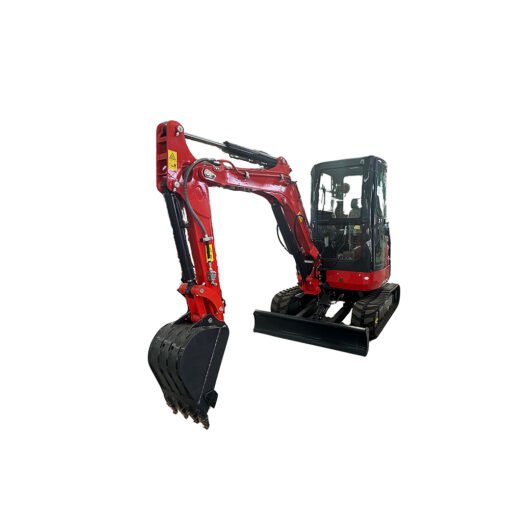

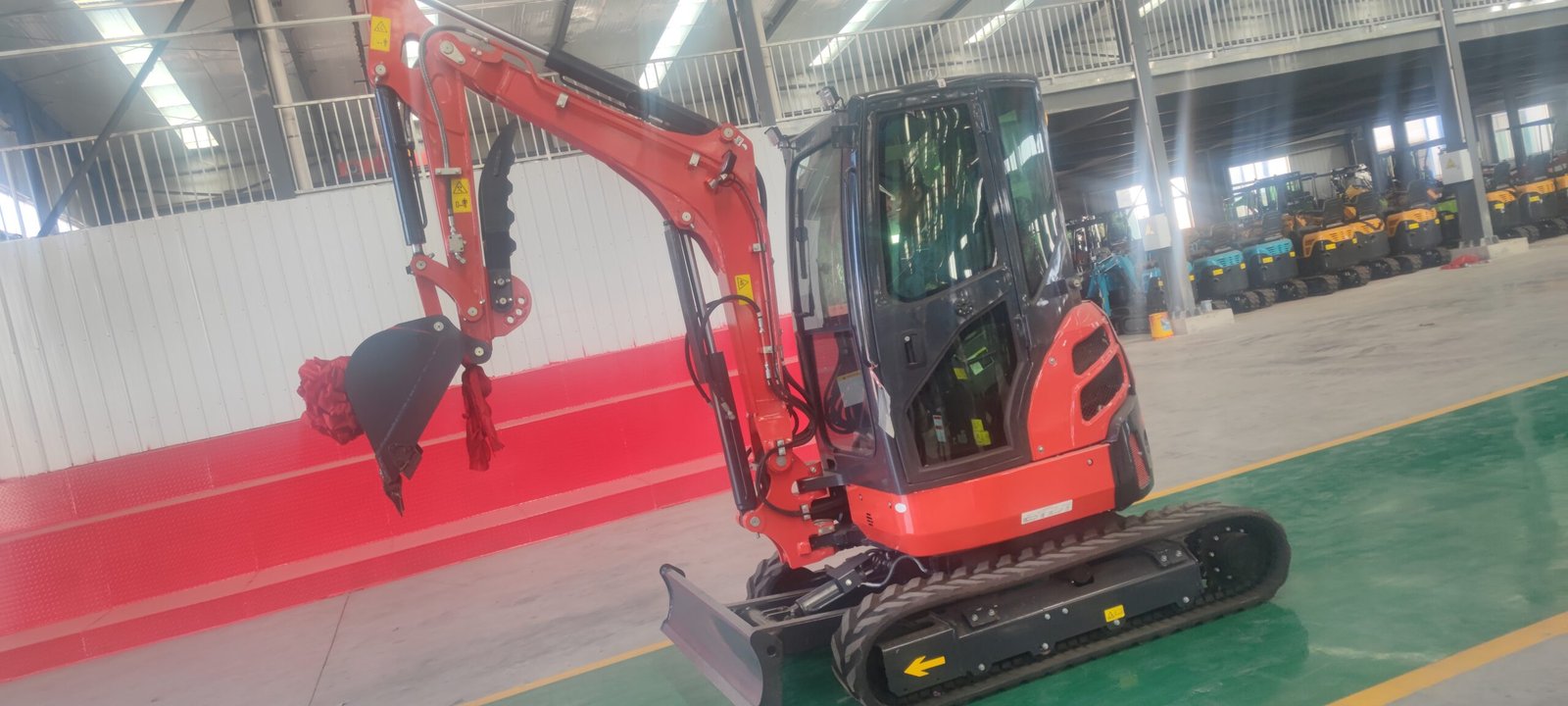

TX-35 3.5 Tons Mini Excavator
3.5-ton mini excavator is a robust and versatile compact construction machine designed to deliver exceptional performance in a wide range of applications. Combining power, precision, and maneuverability, this excavator is ideal for small to medium-sized projects where efficiency and reliability are paramount.
Share:


The TX-35 3.5-ton mini excavator is a powerful, efficient and practical machine that meets the needs of a wide range of industries. Its reasonable size, high productivity and convenient operation make it an essential tool for engineering projects that value precision, flexibility . Whether you are working on a construction site, a landscaping project or a municipal project, this mini excavator can get the job done while increasing productivity and reducing costs.



Optimal size and power: Weighing in at 3.5 tonnes, this mini excavator is the perfect blend of compactness and strength. Its size allows it to work in small spaces, while its powerful engine and good hydraulic system ensure high productivity and performance.
Excellent digging power: Equipped with a high-capacity hydraulic system, the 3.5 ton mini excavator provides excellent digging and lifting power, making it well suited for difficult ground conditions.


Construction: Ideal for foundation digging and site preparation in confined urban areas. Landscaping: Perfect for grading, trenching, and creating intricate designs in gardens, parks, and residential properties. Agriculture: Suitable for digging irrigation channels, clearing land, and handling materials on farms. Municipal Work: Excellent for road maintenance, pipe laying, and other infrastructure projects in urban environments.
Technical Parameter

Operating weight: | 3,867kg |
---|---|
Bucket Capacity: | 0.066m³ |
Excavator Size | |
Overall Length: | 3750mm |
Overall height: | 2260mm |
Overall Width: | Shrunk Size 1300 mm Extended Size1500mm |
Undercarriage | |
Track Width:: | 230mm |
Track Full - length: | 1600mm |

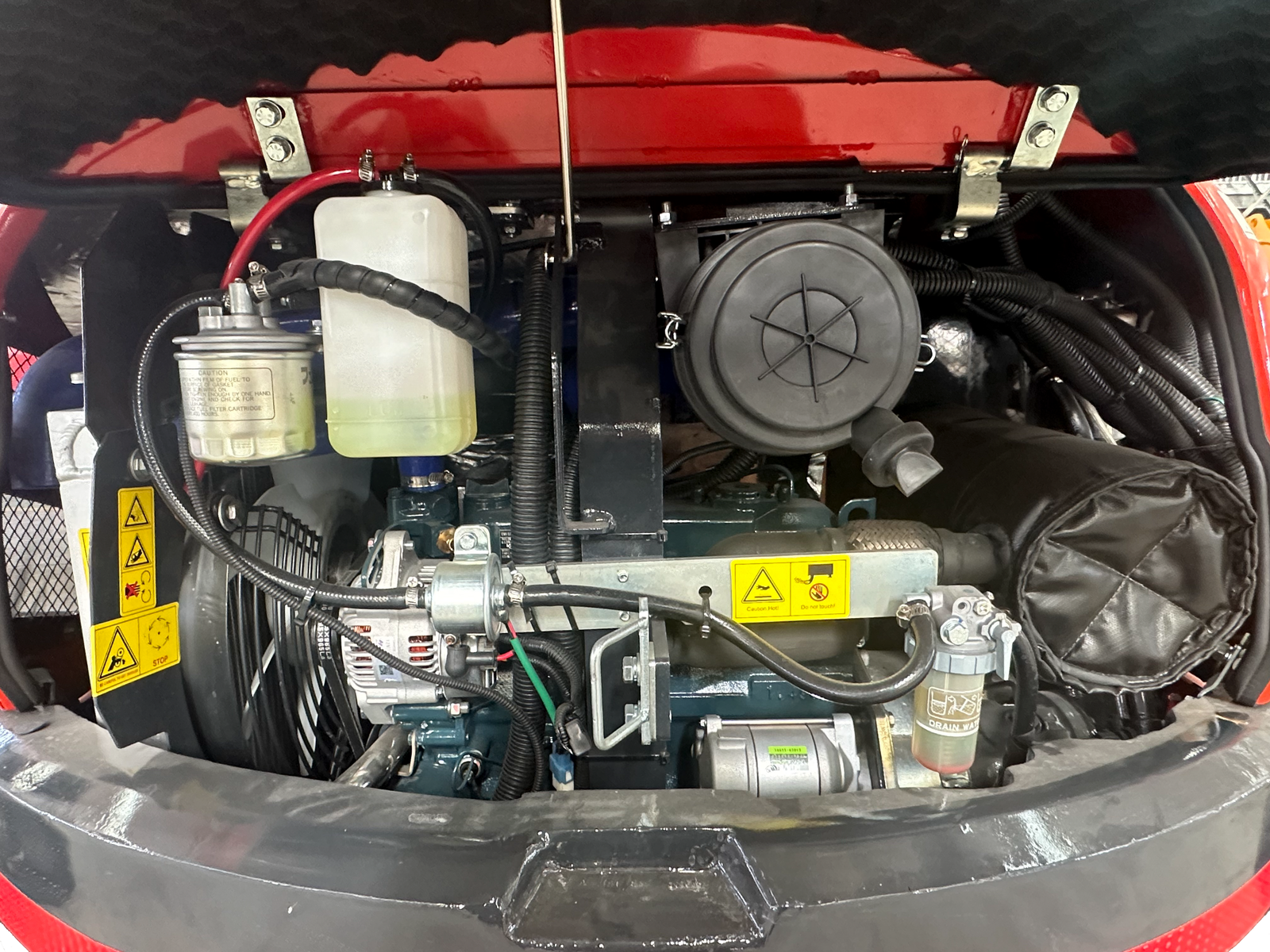

Engine Spec. | |
Engine Model: | Kubota D1105 |
Fuel Tank Capacity: | 28L |
Bucket digging force: | 22KN |
Ground pressure: | 30kpa |
Maximum Digging Depth: | 2510mm |
Max digging height: | 3480mm |
Maximum Dump Height: | 2560mm |
Vertical Lifting Force: | 800kg |
Horizontal Lifting Force: | 520kg |
Maximum Digging Radius: | 4100mm |
Minimum Front - End Swing Radius ( Swing Arm in Motion): | 1850mm(1300mm) |
Minimum Rear - end Swing Radius: | 710mm |
Travel Speed (Low - speed, High - speed): | 2.6km/h,4.5km/h |
Slewing Speed : | 9.5revolutions per minute |
Machine Dimensions: | length 4,754mm, height 2,476mm, width 1,700mm |
Engine Model: | D1703-E4 |
Total Displacement: | 1.647 liters (1,647ml) |
Rated Output Power: | 25.1PS (18.5KW)/2200rpm |
Excavation Performance | |
Maximum Excavation Height: | 4,826mm |
Maximum Dumping Height: | 3,404mm |
Maximum Excavation Depth: | 2,989mm |
Maximum Excavation Radius: | 5,275mm |
Boom Offset: | 630mm to the left and 640mm to the right |
Minimum Front Swing Radius: | 2,251mm (1,805mm) when swinging |
Minimum Rear Swing Radius: | 900mm |
Maximum Excavation Force: | Bucket 29.5kN (3,000kgf) |
Crawler | |
Crawler Type: | Steel crawler |
Crawler Width: | 300mm |
Crawler Overall Length: | 2,081mm |
Wheel Spacing: | 1,620mm |
Crawler Center Distance: | 1,398mm |

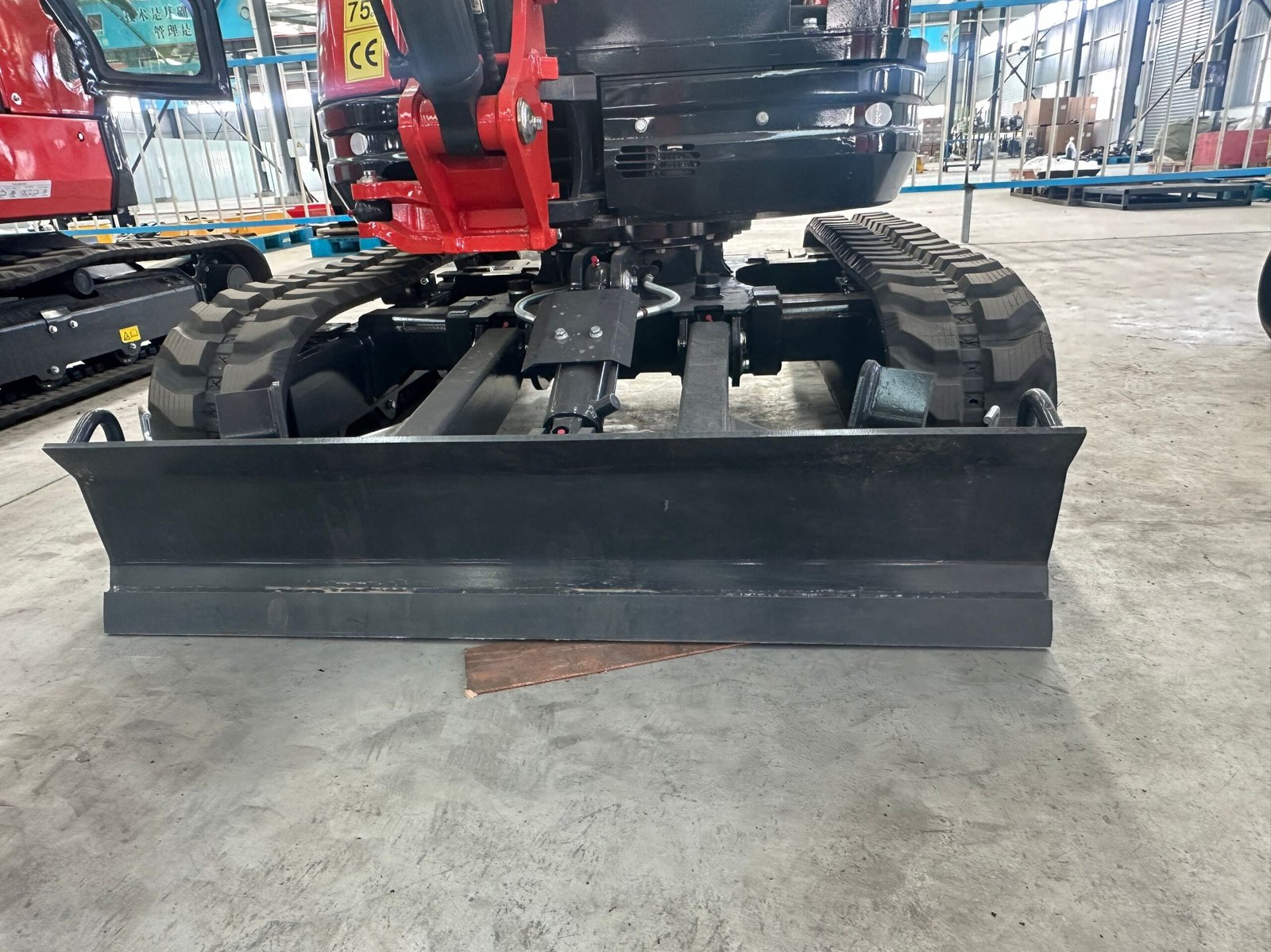

Dozer Blade | |
Dozer Blade Width: | 1,700mm |
Dozer Blade Height: | 341mm |
Lifting Distance: | 392mm up and 425mm down on GL |
Hydraulic Pump Type: | Variable displacement pump * 2 + Gear pump * 2 |
Swing Motor Type: | Piston hydraulic motor |
Travel Motor Type: | 2-speed piston hydraulic motor |
Fuel Tank Capacity: | 45.1 liters |
