TZ60

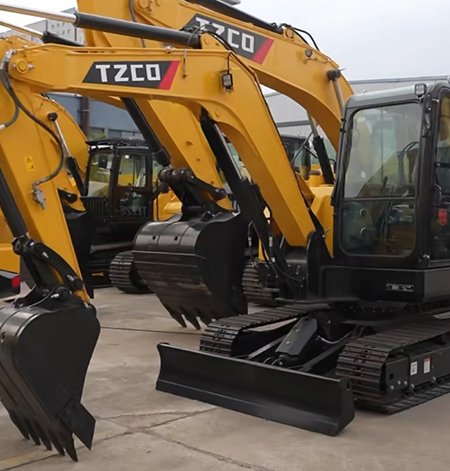

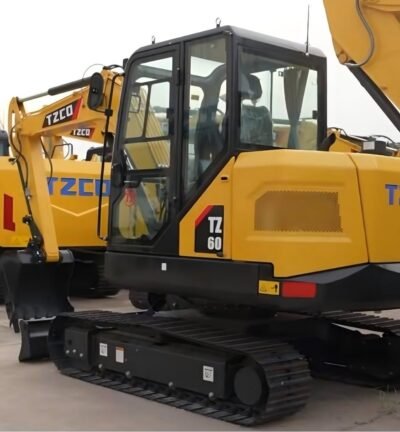

Taking the National IV emission standard as the core benchmark, the TZ60 crawler hydraulic excavator is a new-generation construction equipment that balances performance and environmental protection. The entire machine adopts a sleek and smooth appearance design, combined with a humanized layout, which can be efficiently adapted to various working conditions such as municipal reconstruction, farmland water conservancy, landscape greening and pipeline laying. Its operating weight of 5960kg and standard bucket capacity of 0.23m³ form a golden ratio. Equipped with a 3000mm boom and a 1600mm arm, it achieves a maximum digging radius of 6164mm and a maximum digging depth of 3882mm, accurately meeting the operation needs of small and medium-sized projects.

The high-performance configuration of the power system endows the TZ60 with strong efficiency. It is equipped with a Japanese Yanmar engine with a rated power of up to 35.9kW/2000rpm, which has the dual advantages of powerful power and reliable operation. To maximize performance, the equipment is equipped with a large-flow main pump and a large-diameter main valve. Through the in-depth matching of the engine and the hydraulic system, it not only ensures the smooth and precise operation actions, but also significantly improves fuel economy. What’s more noteworthy is that the intelligent controller can adjust fuel injection in real time according to working conditions. Combined with the lightweight working device design, it minimizes carbon emissions while outputting strong power, perfectly conforming to the concept of green construction.

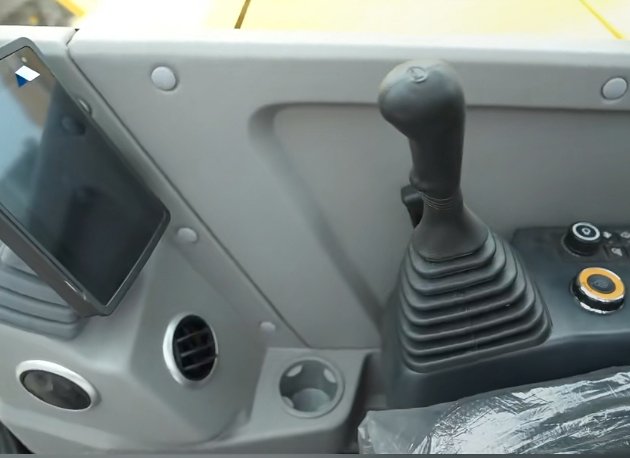

The upgrade of driving experience and intelligence level makes the operation more convenient. The TZ60 adopts a large-size wide-vision cab, combined with optimized sound insulation materials and silicone rubber shock absorbers, which effectively reduces noise and vibration interference and greatly improves operation comfort. The cab integrates a 7-inch mode display screen and a touch-type integrated display and control screen. The application of automotive-grade electronic technologies such as one-key start, Bluetooth connection and multi-mode work switching simplifies the operation process. At the same time, the addition of intelligent maintenance reminder and online fault diagnosis functions, combined with the dual-circuit hydraulic braking system and high-strength steel structural parts, builds a dual protection system of “intelligent control + safety protection”.

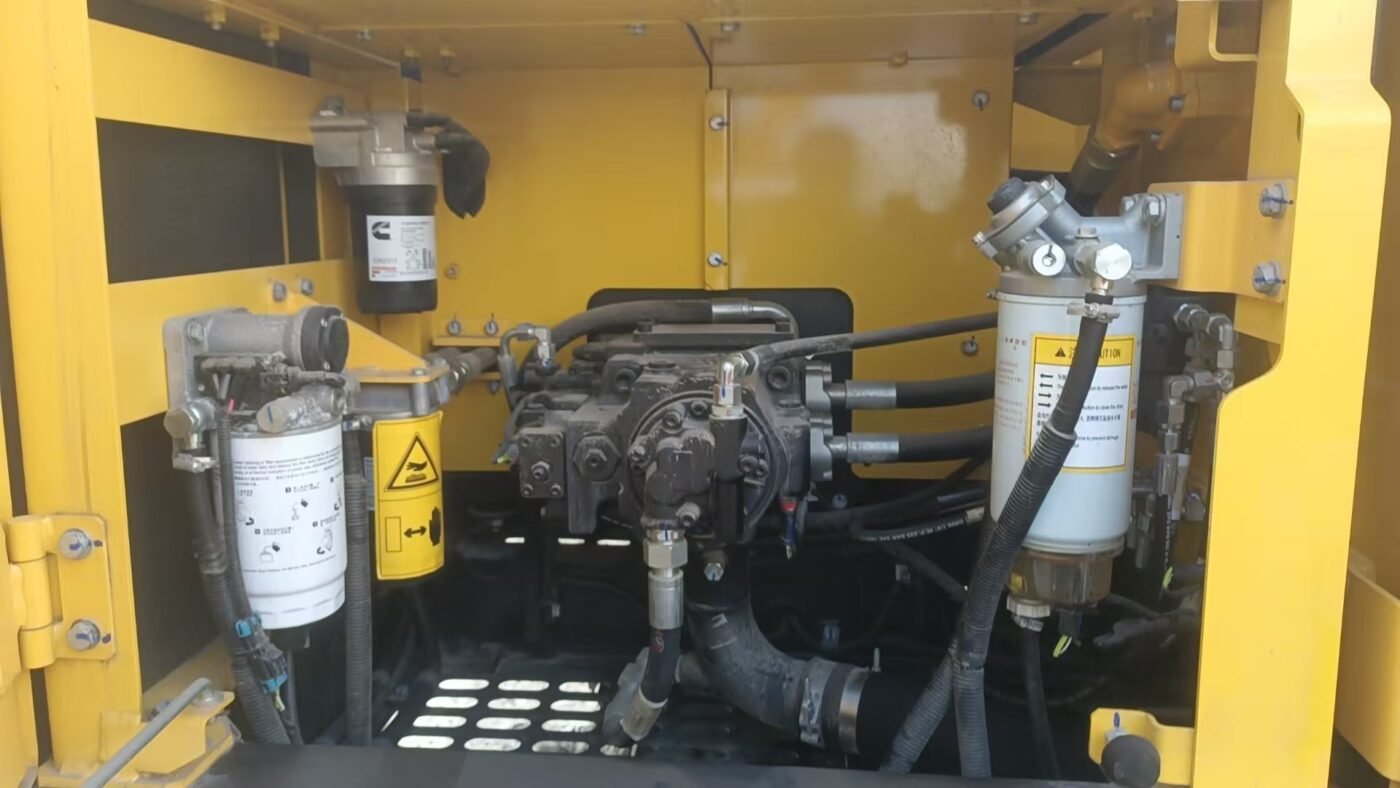

The optimized design of maintenance convenience and durability significantly reduces the user’s operating cost. The equipment’s covering parts adopt a scientific opening structure, allowing maintenance personnel to quickly access the core components. Combined with the double filtration design of the main filter and safety filter, the maintenance efficiency is greatly improved. The long maintenance cycle of 500 hours, combined with the real-time reminder of the electronic differential pressure sensor, completely eliminates the tedious process of frequent maintenance.
