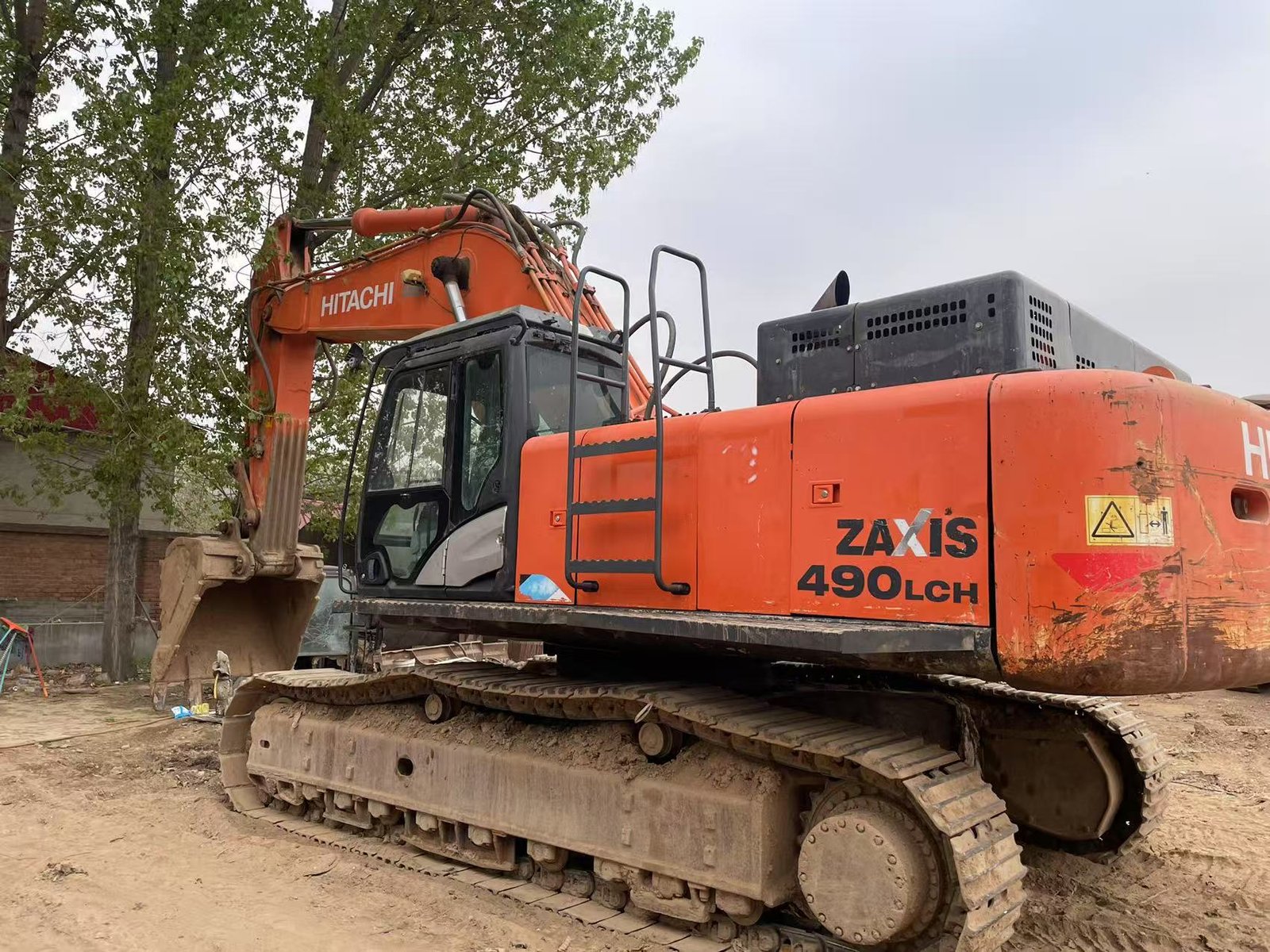

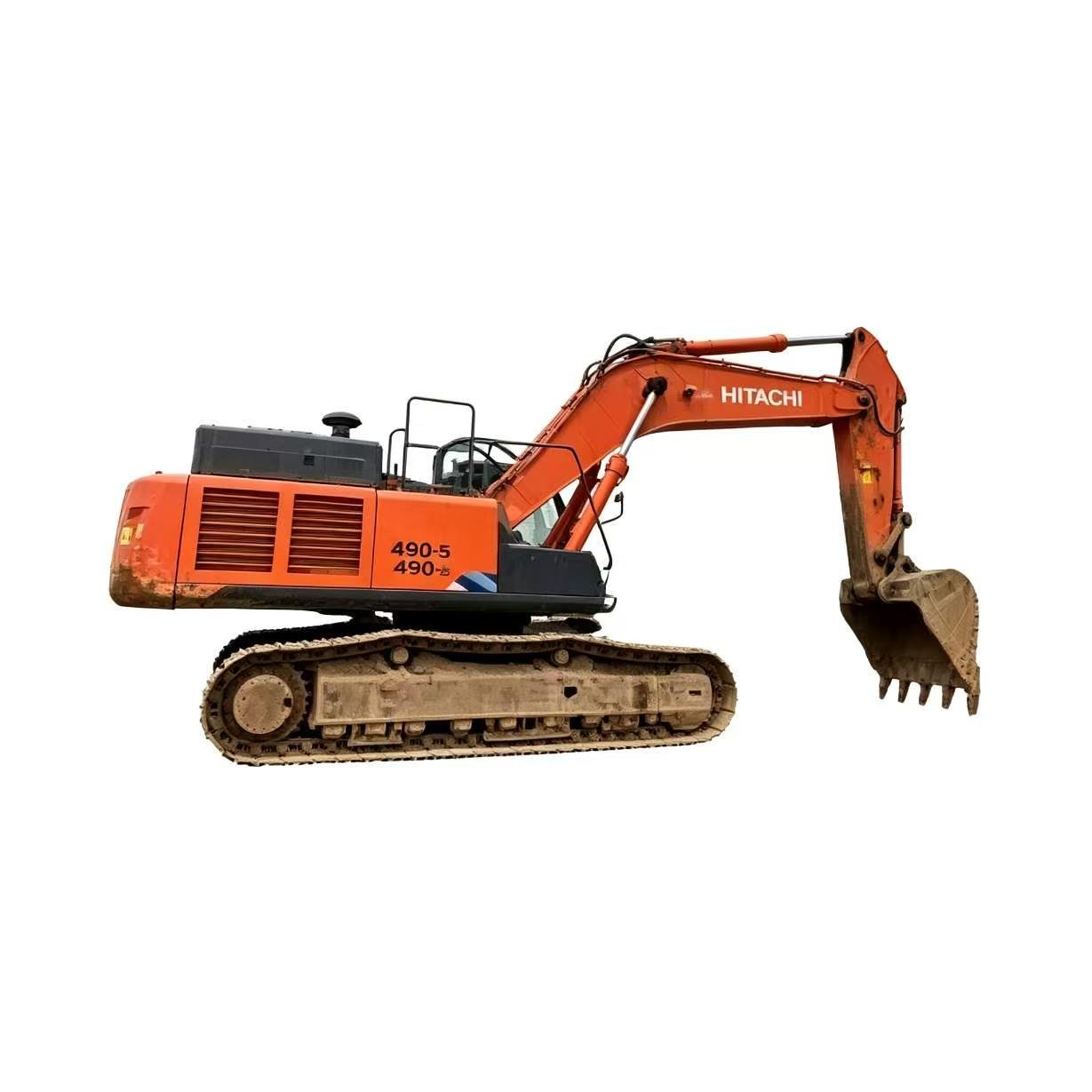

used hitachi 490-5A
Structural Design Advantages The Hitachi ZX490LCH – 5G excavator uses extra – thick steel plates to create an integral rock arm, enhancing structural stability and self – weight, and improving digging force. The bucket – rod cylinder of the (arm) is removed, increasing the digging depth and reducing maintenance costs. It also optimizes the hydraulic layout, concentrating hydraulic flow to give full play to the dual – pump confluence advantage and boost work efficiency. Moreover, after rigorous testing, it takes into account transportation and other issues, with high – quality production processes.
Share:


Structural Design Advantages The Hitachi ZX490LCH – 5G excavator uses extra – thick steel plates to create an integral rock arm, enhancing structural stability and self – weight, and improving digging force. The bucket – rod cylinder of the (arm) is removed, increasing the digging depth and reducing maintenance costs. It also optimizes the hydraulic layout, concentrating hydraulic flow to give full play to the dual – pump confluence advantage and boost work efficiency. Moreover, after rigorous testing, it takes into account transportation and other issues, with high – quality production processes.



Excellent Power Performance Equipped with an Isuzu engine, it offers a strong and stable power output, capable of handling complex working conditions with ease. Meanwhile, it features fuel – saving and high – efficiency characteristics, reducing fuel consumption while ensuring operation efficiency and cutting down on operating costs.


Good Market and After – sales Performance It enjoys high popularity and market share in the large – excavator market. The Isuzu engine has good versatility, is convenient to repair with low costs, and its spare parts are easily accessible. Second – hand units depreciate slowly and have high residual values.
Technical Parameter

Item | Parameter |
---|---|
Total Length | 12040mm |
Total Width | 3820mm |
Total Height (to Cab Top) | 3320mm |
Total Height (to Boom Top) | 4120mm |
Minimum Ground Clearance | 535mm |
Tail Swing Radius | 3670mm |
Maximum Digging Radius | 12060mm |
Maximum Digging Depth | 7850mm |
Maximum Vertical Digging Depth | 7170mm |
Maximum Digging Height | 10980mm |
Maximum Dumping Height | 7580mm |
Minimum Swing Radius | 4840mm |
Operating Weight | 47.6t |
Standard Bucket Capacity | 2.1m3 |
Model | Isuzu GH-6UZ1XKSA-01 |
Type | 4-stroke, water-cooled, direct-injection, turbocharged, intercooled |
Rated Power | 257kW (345HP) |
Number of Cylinders | 6 |
Piston Displacement | 9.839L |
Main Pump Type | 2 variable axial piston pumps |
Maximum Main Pump Flow | 2*400L/min |
System Rated Pressure | 34.3MPa |
Track Width | 600mm |
Track Gauge | 2740mm |
Travel Speed (High/Low) | 5.5/3.9km/h |
Swing Speed | 9.5rpm |
Gradeability | 70% (35°) |
Fuel Tank Capacity | 725L |
Hydraulic Tank Capacity | 310L |
Engine Oil Capacity | 41L |
Coolant Capacity | 58L |
USED HITCHI490-5A VIDEO
