Used Huanggong T220 Track Bulldozer
Huangtu T220 crawler bulldozer features a 162-kW Cummins NT855-C280 diesel engine and a 5.6-cubic-meter straight-tilt bucket, enabling stable operation and material handling of 320 cubic meters per hour over 40-meter distances. Its high-strength hook design excels in site cleaning, material transportation, and generating substantial pulling force to assist excavators in dislodging trapped ore. The machinery demonstrates robust adaptability in challenging terrains like mines, combining mobility with efficient task execution under harsh conditions.
Share:

Huangtu T220 crawler bulldozer features a 162-kW Cummins NT855-C280 diesel engine and a 5.6-cubic-meter straight-tilt bucket, enabling stable operation and material handling of 320 cubic meters per hour over 40-meter distances. Its high-strength hook design excels in site cleaning, material transportation, and generating substantial pulling force to assist excavators in dislodging trapped ore. The machinery demonstrates robust adaptability in challenging terrains like mines, combining mobility with efficient task execution under harsh conditions.

With its excellent quality and innovative design, the Huangtu brand T220 crawler bulldozer occupies an important position in the field of engineering machinery and equipment. Its unique hook design further enhances the practicality and functionality of the product.

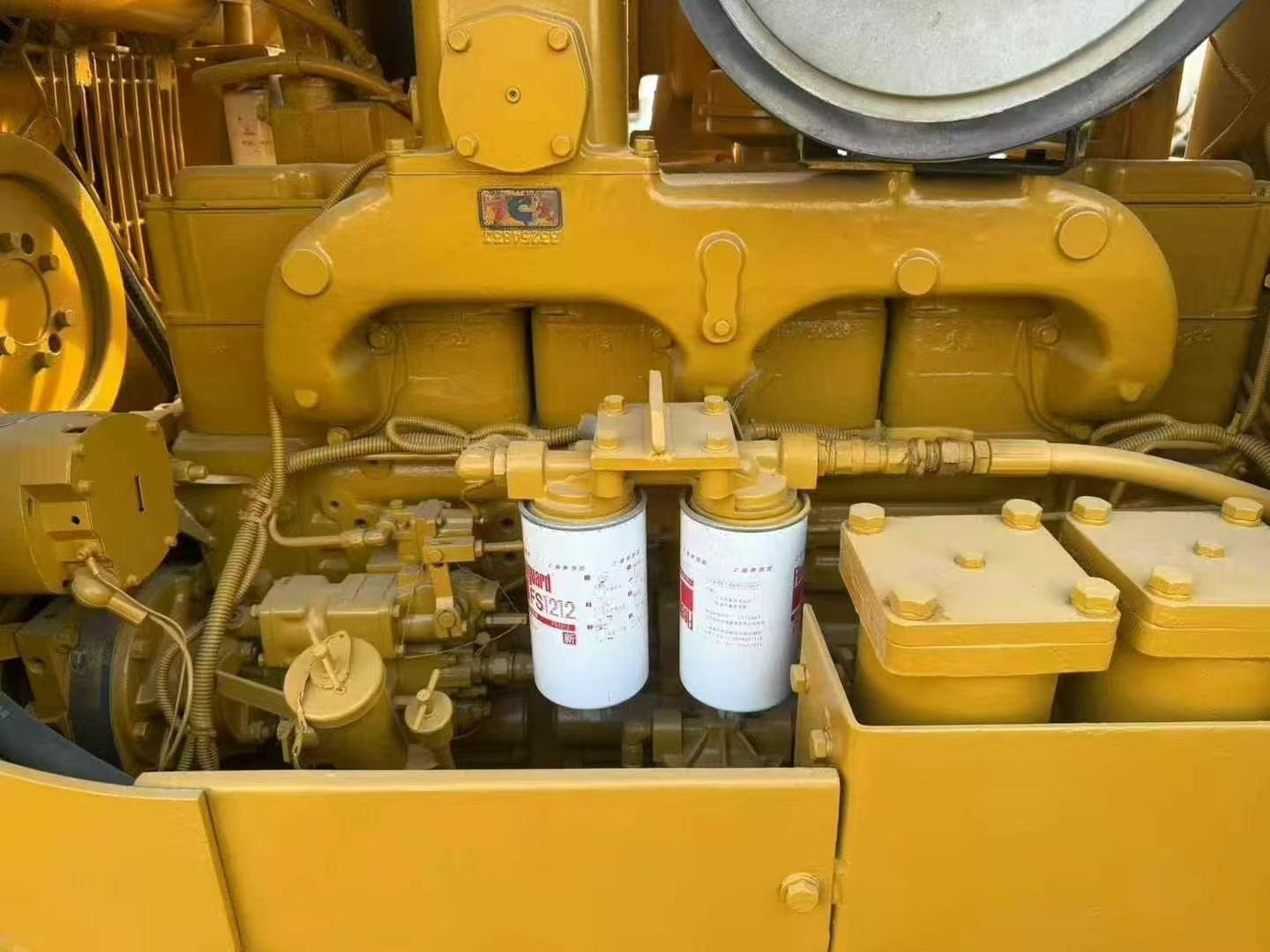

The bulldozer is equipped with a Cummins NT855-C280 fuel direct injection turbocharged diesel engine with a powerful power of 162 kilowatts, ensuring stable operation under various complex working conditions.


Whether it is site cleaning after demolition or fine operations such as material traction and positioning, it can be completed efficiently, greatly improving engineering efficiency.


In actual operations, the advantages of the T220 hook bulldozer are fully reflected. The straight-tilt bucket has a large capacity of 5.6 cubic meters. With its excellent lifting and cutting capabilities, its working efficiency can reach 320 cubic meters per hour at a transportation distance of 40 meters.

The hook is made of exclusive high-strength material, which perfectly matches the power system of the whole machine and can withstand huge pulling force. When working in complex terrain such as mines, its mobility can be used to quickly assist excavation equipment to pull out ores stuck in gaps or depressions, demonstrating strong operating efficiency and adaptability.

Technical Parameter

Specific Parameter | Detailed Information |
---|---|
Engine Model | Cummins NT855 - C280 |
Rated Power | 162kW/1800rpm |
Fuel Consumption Rate | ≤212g/kW·h |
Maximum Torque | 1030N·m/1250rpm |
Operating Mass | 23450kg |
Overall Dimensions L*W*H | 5750mm×3725mm×3225mm |
Minimum Turning Radius | 3.3m |
Gradeability | 30° |
Ground Contact Pressure | 75Kpa |
Minimum Ground Clearance | 405mm |
Track Ground Contact Length | 2730mm |
Track Shoe Width | 560mm |
Number of Track Shoes (One Side) | 38 |
Forward Speed | 3.6/6.5/11.2Km/h |
Reverse Speed | 4.3/7.7/13.2Km/h |
Scraper Blade Type | Straight Tilt Blade |
Scraper Blade Capacity | 5.6m³ |
Scraper Blade Dimensions (Width × Height) | 3725mm×1316mm |
Scraper Blade Cutting Angle | 55° |
Maximum Inclination of Scraper Blade | 735mm |
Maximum Lifting Height of Scraper Blade | 1210mm |
Maximum Cutting Depth of Scraper Blade | 540mm |
Maximum Traction Force | 202.79KN |
System Pressure | 14Mpa |
