Used Hyundai 210-7 Wheel excavator
Hyundai 210-7 Wheeled Excavator Leverage its Cummins-powered 124kW engine and 20.5-ton capacity for heavy-duty tasks, optimize site mobility with 8.3–30km/h speeds, and ensure efficient maintenance via accessible components like the centralized control box and replaceable air filter. Prioritize operator comfort through the ergonomic cab for prolonged productivity.
Share:


With its excellent performance and outstanding design, the Hyundai 210-7 wheeled excavator has become a powerful assistant in engineering construction. It is equipped with a Cummins B5.9-C engine, which can output a rated power of 124kW. It is powerful and can easily cope with various complex working conditions. The 20,500kg working weight of the whole machine is matched with the bucket capacity of 0.51 – 1.34m³, and the operation is efficient.



In terms of performance parameters, its forward speed of 8.3 – 30Km/h can flexibly shuttle between different sites, the rotation speed of 12.5rpm increases the workload per unit time, and the 133kN bucket digging force and 97kN digging force of the bucket arm show a strong ability to break the ground.

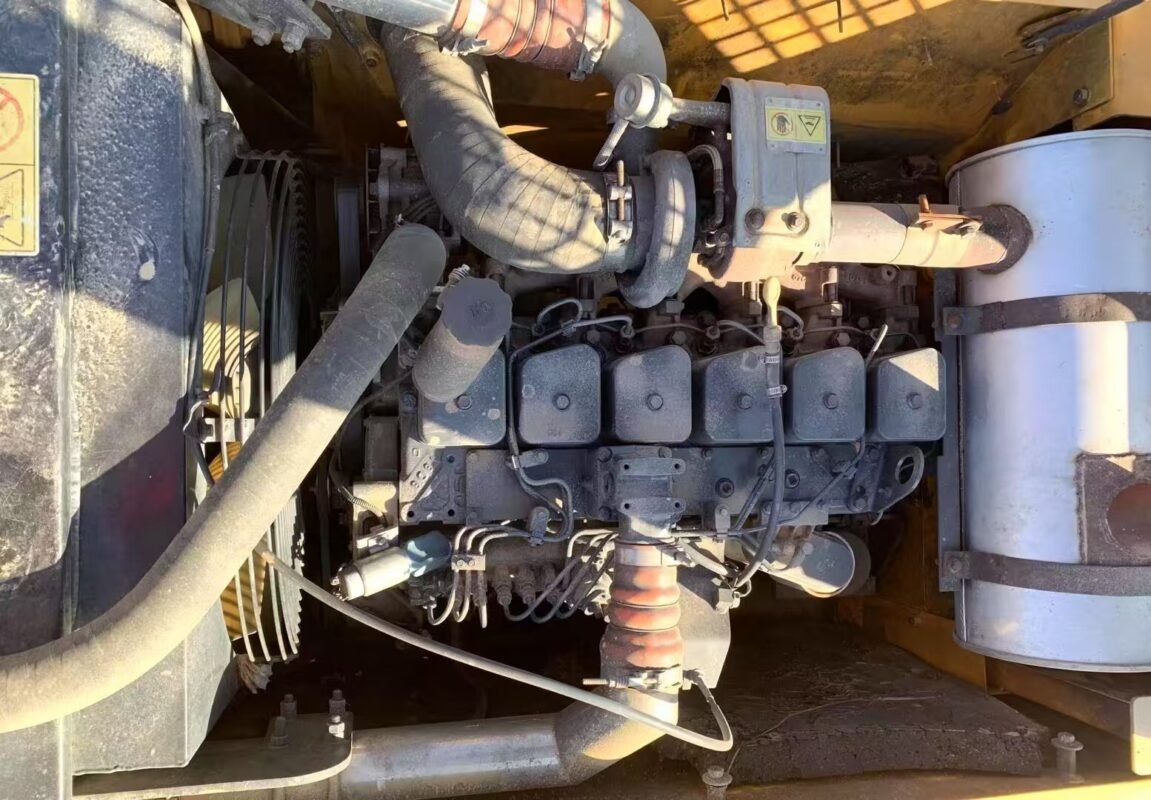

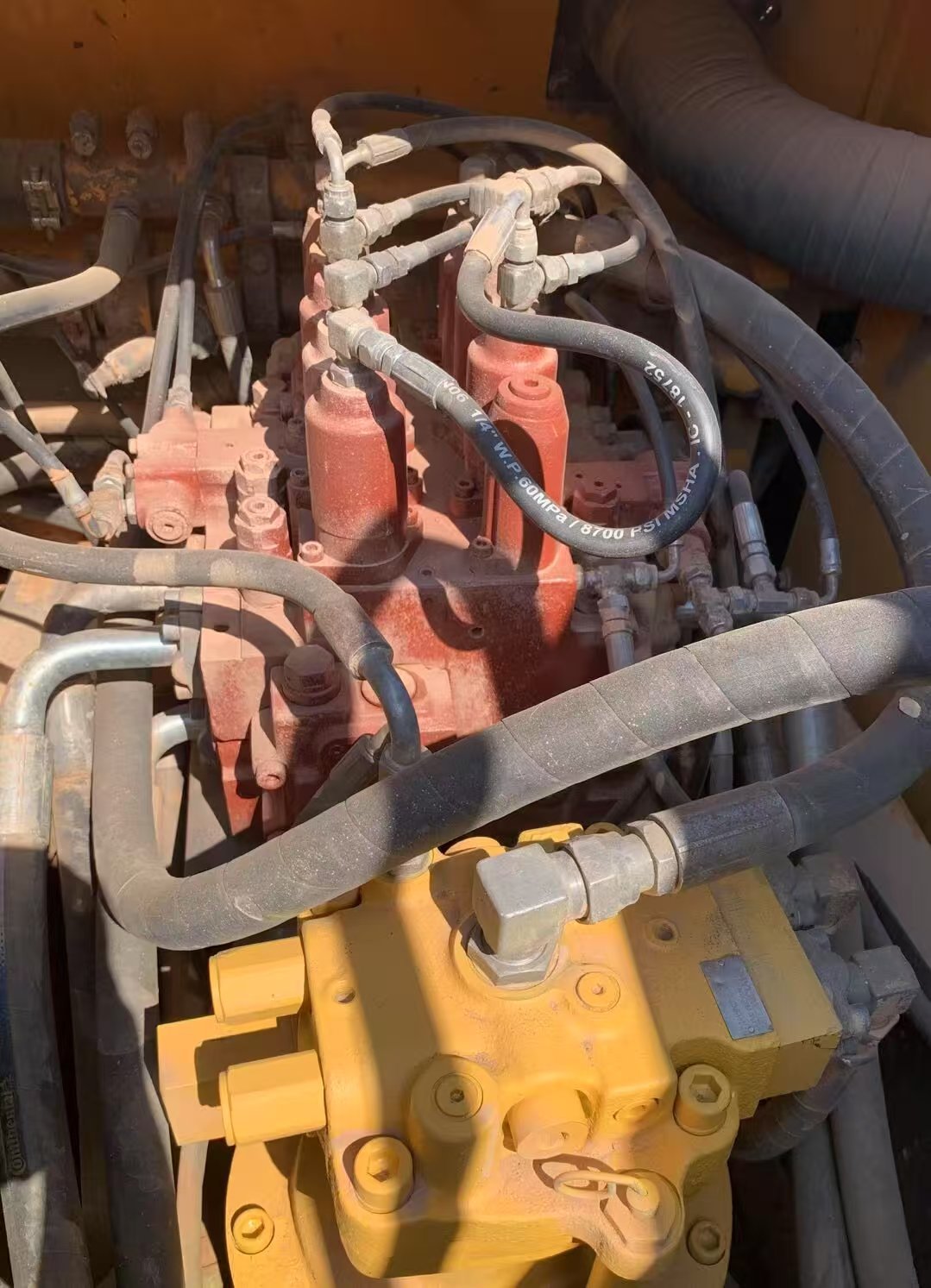

In terms of design, the Hyundai 210-7 wheeled excavator is also full of highlights. Its hydraulic system consists of 2× axial variable piston pumps, and the maximum flow of the main pump reaches 2×222L/min, ensuring stable power output. The spacious and comfortable cab is designed based on ergonomics, with good visibility and low noise environment, and is equipped with a highly sensitive joystick, providing an excellent operating experience. The durability of the equipment has been verified by FEM analysis and long-term testing, and maintenance is also relatively convenient. The engine components are easy to access, and the centralized electronic control box and easily replaceable air filter assembly further enhance the practicality of the equipment, bringing users an efficient and reliable operating experience.
Technical Parameter

Product Name | Hyundai 210-7 Wheel excavator |
---|---|
Machine operating weight | 20,500kg |
Bucket capacity | 0.51 - 1.34m³ |
Boom length | 5650mm |
Arm length | 2900mm |
Tonnage | 21 tons |
Forward speed | 8.3 - 30Km/h |
Rotation speed | 12.5rpm |
Gradeability | 31.50% |
Bucket digging force | 133kN |
Arm digging force | 97kN |
Engine model | Cummins B5.9 - C |
Rated power | 124kW/1950rpm |
Maximum torque | 68.4Nm/1950rpm |
Total displacement | 5.88L |
Cooling method | water cooling |
Fuel tank | 320L |
Hydraulic oil tank | 180L |
Engine oil change volume | 18L |
Total transport length | 9490mm |
Total transport width | 2490mm |
Total transport height | 3100mm |
Total cab height | 3180mm |
Onboard width | 2530mm |
Counterweight ground clearance | 1310mm |
Minimum ground clearance | 345mm |
Rear end swing radius | 2800mm |
Maximum digging radius | 9900mm |
Maximum digging radius on the ground | 9690mm |
Maximum digging depth | 6380mm |
Maximum vertical digging depth | 5810mm |
Maximum digging height | 9870mm |
Maximum unloading height | 7050mm |
Maximum digging depth | 6210mm |
Minimum swing radius | 3540mm |
USED HYUNDAI 210-7 WHEEL EXCAVATOR VIDEO
