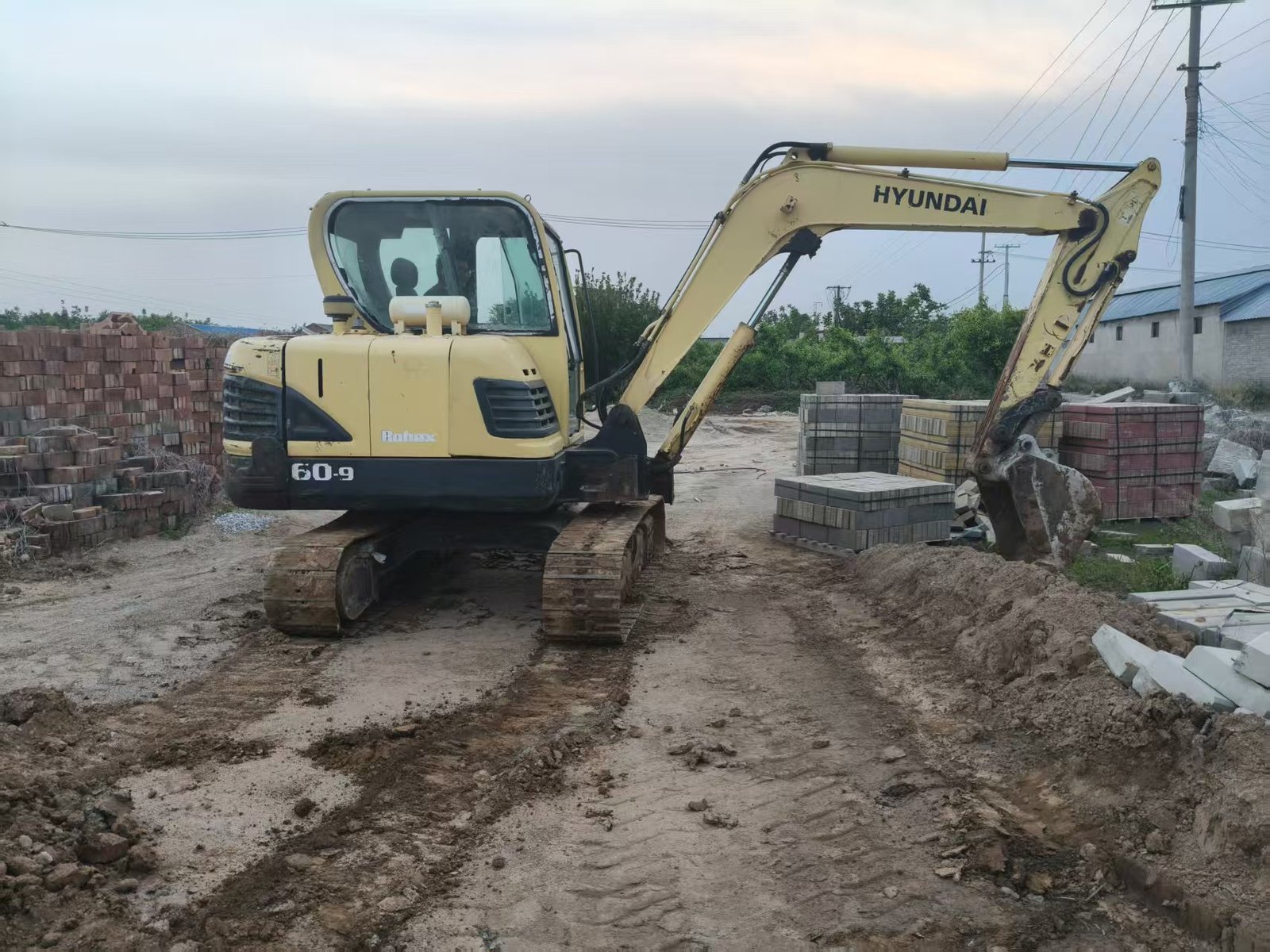

Used Hyundai 60 Excavator
R60-9 excavator has become a leader among small excavators with its excellent efficiency and comfortable and convenient operability. Energy saving and environmental protection, comfort and convenience, and excellent efficiency, all the qualities that make Hyundai excavators enduring can be found in the R60-9. This model has been widely used in small earthwork projects, municipal construction and road construction.
Share:

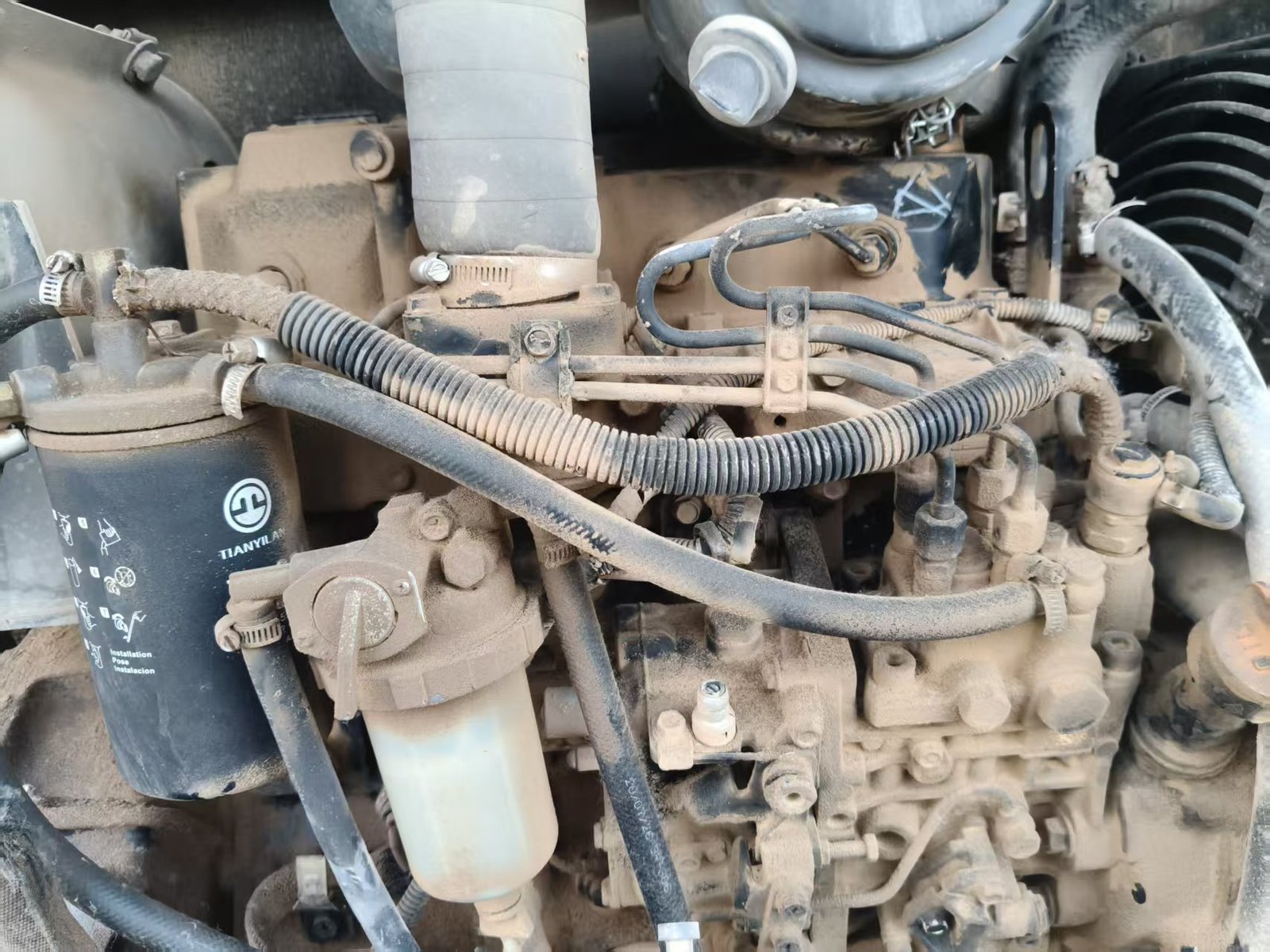

Hyundai R60 excavator uses the Yanmar 4TNV94L environmentally friendly engine with a displacement of 3.054L, which can provide the whole machine with a strong power of 40kW (2000r/min), and the maximum torque appears at 1400r/min, which is about 200N·m.

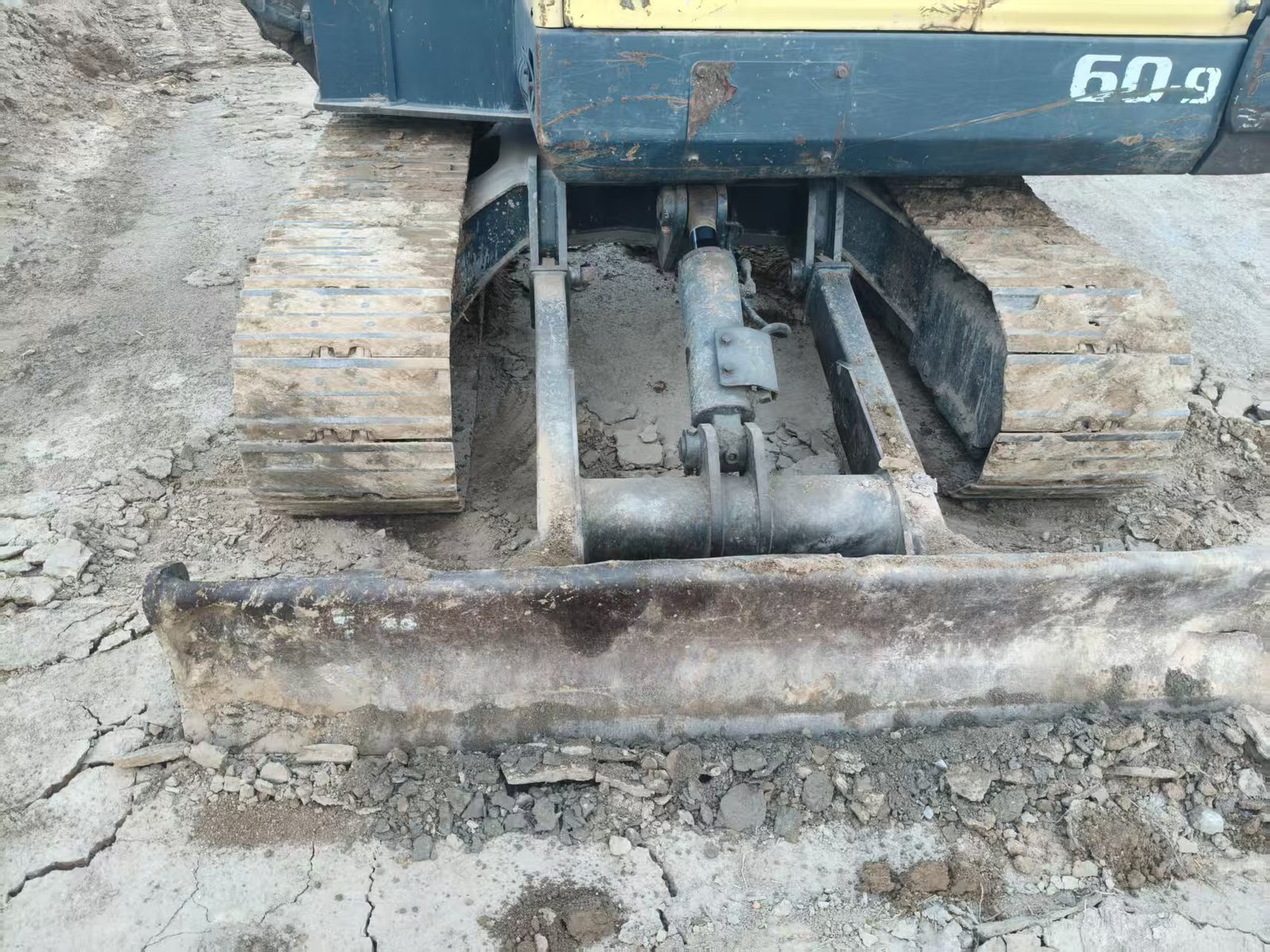

Hyundai R60 excavator is equipped with a high-strength X-shaped lower frame, which is combined with a stable bulldozer and outriggers to optimize the stability of the entire machine in different working conditions.


In addition, Hyundai excavators are subject to durability, firmness, convenience and comfort tests at the test site from research and development to assembly of all parts to ensure product quality.

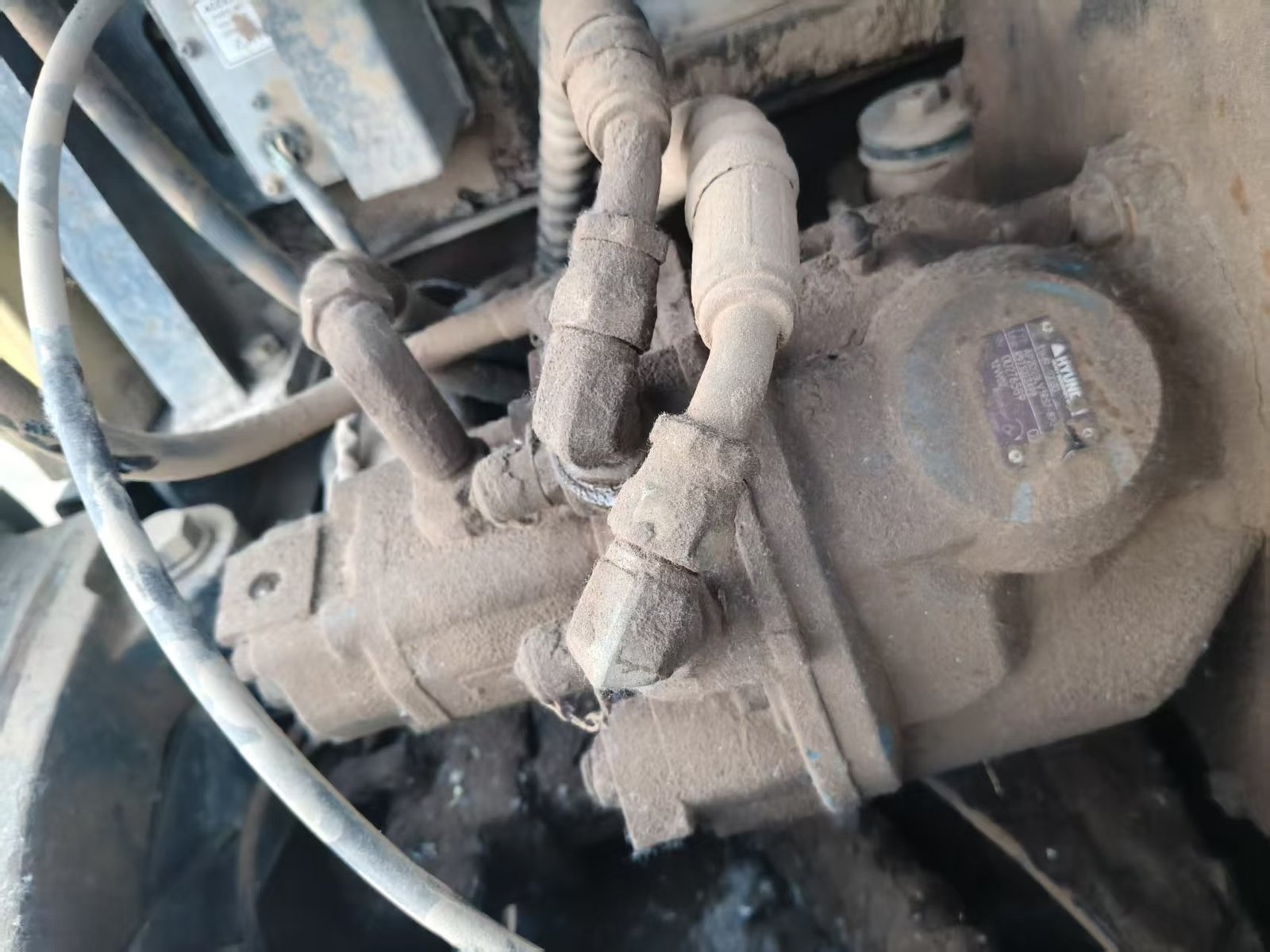

The hydraulic system of the Hyundai R60 excavator has been improved to provide better working capabilities. The improved hydraulic system increases the boom’s rising speed, improves the accuracy of fine work, and makes compound work faster.


LED monitoring system equipped with this machine can intuitively display the engine speed, cooling water temperature, fuel volume and all electrical related information related to the equipment status, providing support for achieving better working efficiency.

Technical Parameter

Model No. | Hyundai 60 |
---|---|
Operating weight | 5660kg |
Bucket capacity | 0.07 - 0.21 m³ |
Boom length | 3000mm |
Arm length | 1600mm |
Total transport length | 5900mm |
Total transport width | 1920mm |
Total transport height | 2550mm |
Track gauge | 1520mm |
Total track width | 1920mm |
Track shoe width | 400mm |
Track ground length | 1990mm |
Rear end turning radius | 1650mm |
Minimum ground clearance | 380mm |
Engine model | Yanma 4TNV94L |
Rated power | 39kW/2200rpm |
Cooling method | Water Cooling |
Number of cylinders | 4 |
Maximum digging radius | 6150mm |
Maximum digging radius of parking surface | 6010mm |
Maximum digging depth | 3820mm |
Maximum digging height | 5780mm |
Maximum unloading height | 4050mm |
Slewing speed | 9.3rpm |
Travel speed | 2.2 - 4.0Km/h |
Gradability | 70%(35°) |
Bucket digging force | 38.5kN |
Arm digging force | 29kN |
Fuel tank | 125L |
Hydraulic oil tank | 70L |
USED HYUNDAI 60 video
