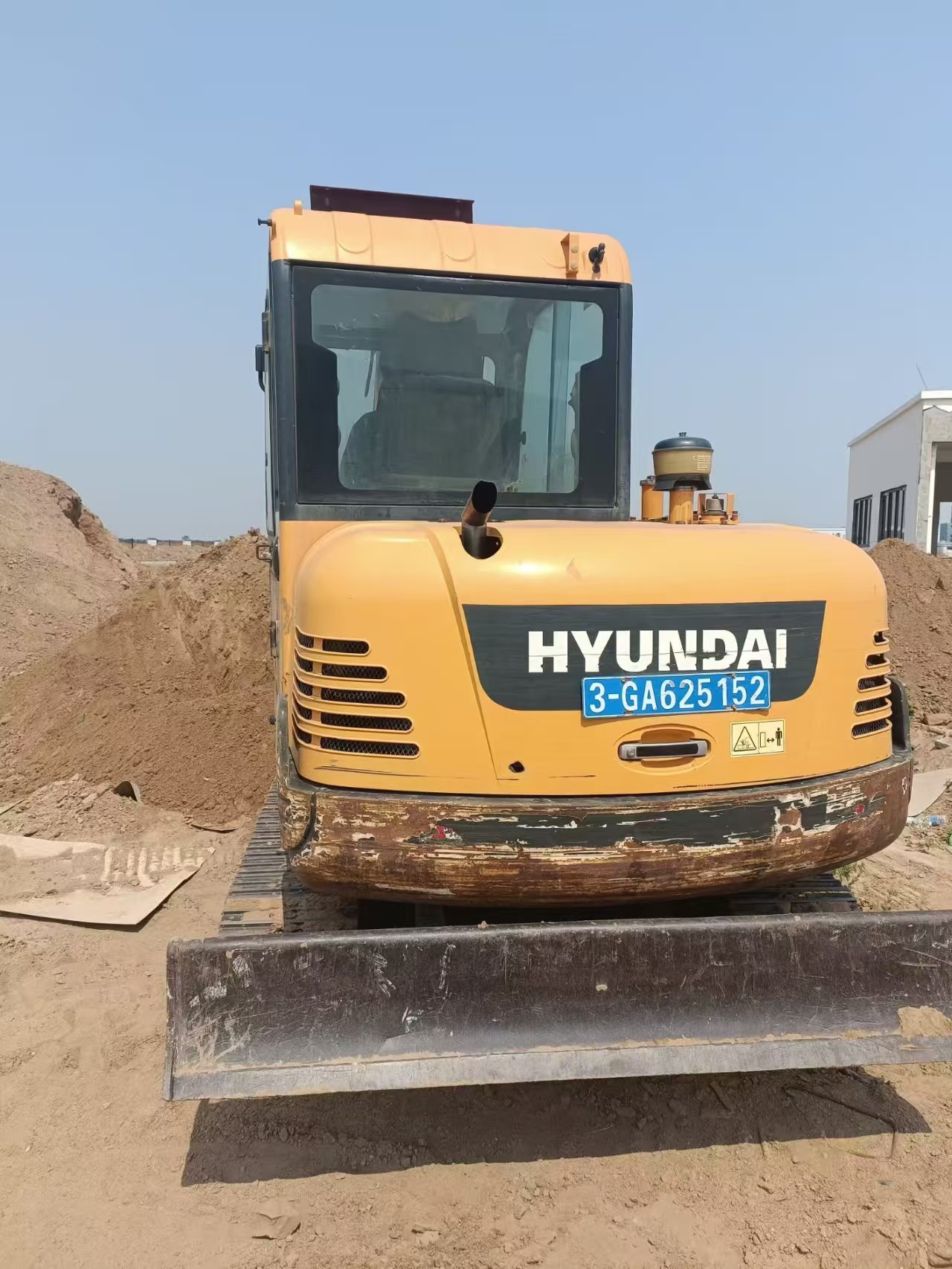

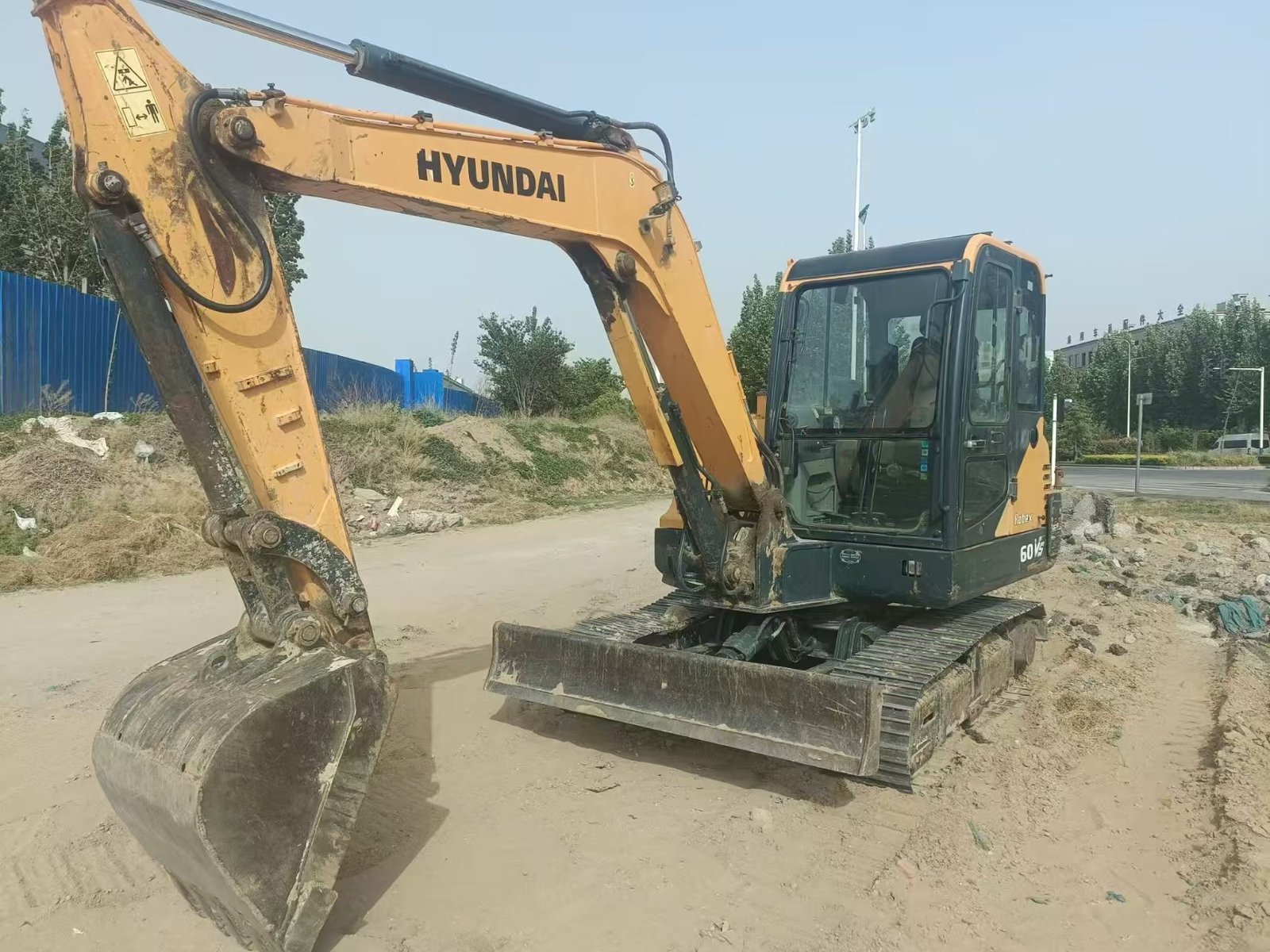

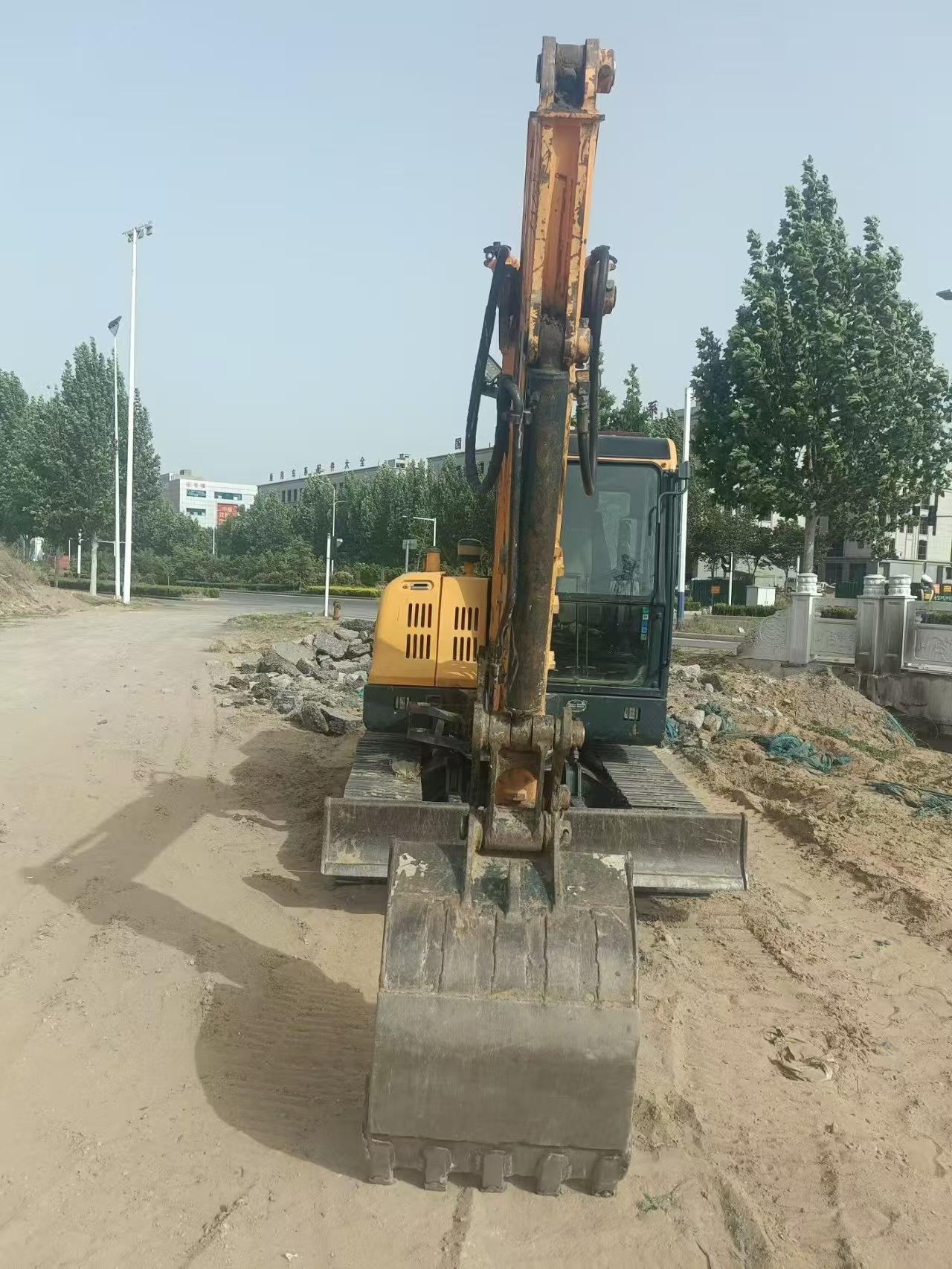

Used Hyundai-60VS Excavator
Boost your productivity with the Hyundai-60VS Excavator—a compact yet powerful machine designed for efficiency and durability. With a robust engine, smooth hydraulic controls, and exceptional digging force, it handles tough jobs with ease. Its ergonomic cabin ensures operator comfort, while low fuel consumption keeps costs down. Perfect for construction, landscaping, and utility work, the Hyundai-60 delivers reliability and performance in any terrain.
Share:


The Hyundai 60VS is equipped with the Yanmar 4TNV98-E engine, which uses extremely advanced diesel high-pressure common rail electronic injection technology. The output power can reach up to 54.3KW/2400rpm. It is not only powerful and has full combustion, but is also green and environmentally friendly..



The German Rexroth hydraulic system is adopted, which not only ensures smooth and efficient operation and stable slewing control, but also comes standard with a parking brake, which can significantly improve operational safety.


The boom, dipper and center frame structures have been optimized, which are not only highly reliable but also durable, and can withstand various harsh working conditions. The installation of the engine shock absorber significantly reduces the vibration of the cab.


The sound-absorbing sponge in the engine hood reduces the equipment noise to 99dBA. The left-side control handle is equipped with a touch-type deceleration switch, which is easy to operate and helps to reduce fuel consumption.

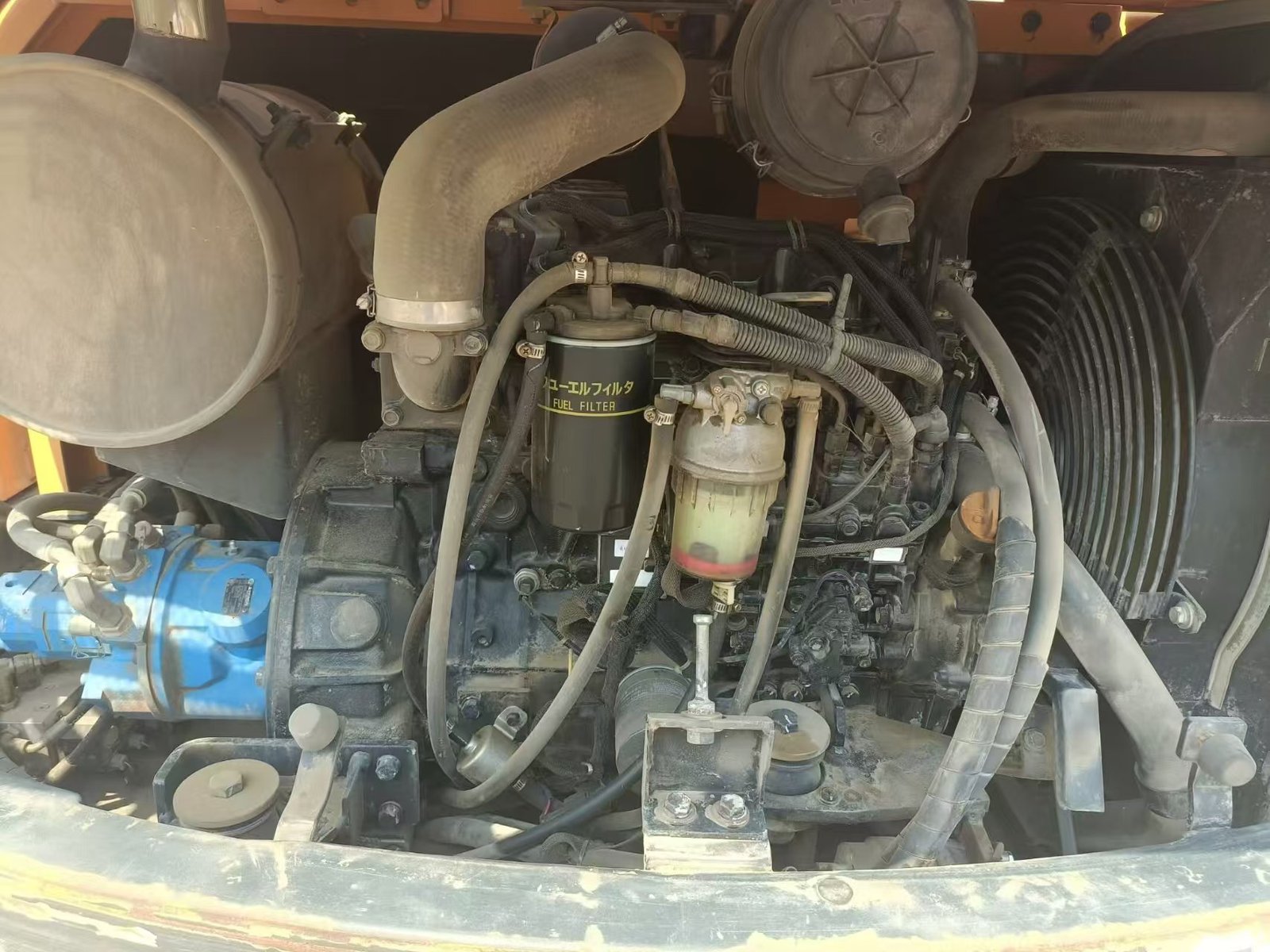

The inspection and maintenance parts are centrally arranged in the engine compartment, which is not only convenient for daily maintenance, but also reduces maintenance costs. The machine has a curb weight of 5850kg and a compact and flexible body, which is suitable for various small projects such as urban construction and road maintenance, allowing you to work smoothly in narrow spaces.

Technical Parameter

Item | Parameters |
---|---|
Overall operating weight | 5850kg |
Bucket capacity | 0.21m³ |
Boom length | 3000mm |
Stick length | 1600mm |
Travel speed | 4.0/2.2km/h |
Gradeability | 70% |
Swing speed | Approximately 9.6rpm |
Engine model | Yanmar 4TNV98-E |
Rated power | 54.3kW/2400rpm |
Maximum torque | 20.6N·m/1800rpm |
Displacement | 3.319L |
Bore×Stroke | 98mm×110mm |
Cooling method | Water-cooled |
Working type | 4-cylinder 4-stroke water-cooled direct-injection engine |
Fuel tank capacity | 120L |
Hydraulic tank capacity | 70L |
Total hydraulic system oil volume | 120L |
Engine oil change capacity | 12L |
Coolant capacity | 10L |
Total transport length | 5900mm |
Total transport width | 1920mm |
Total transport height | 2550mm |
Cab overall height | 2550mm |
Upper carriage width | 1830mm |
Track ground contact length | 1990mm |
Total track length | 2530mm |
Track shoe width | 400mm |
Track gauge | 1500mm |
Minimum ground clearance | 380mm |
Counterweight ground clearance | 690mm |
Rear swing radius | 1650mm |
Maximum height at minimum swing radius | 2350mm |
Number of carrier rollers (one side) | 1 |
Number of track shoes (one side) | 40 |
Number of idler wheels (one side) | 5 |
Maximum digging radius | 6150mm |
Maximum digging radius at ground level | 6010mm |
Maximum digging depth | 3820mm |
Maximum digging height | 5780mm |
Maximum dumping height | 4050mm |
Maximum vertical digging depth | 3200mm |
Maximum effective digging depth | 3420mm |
