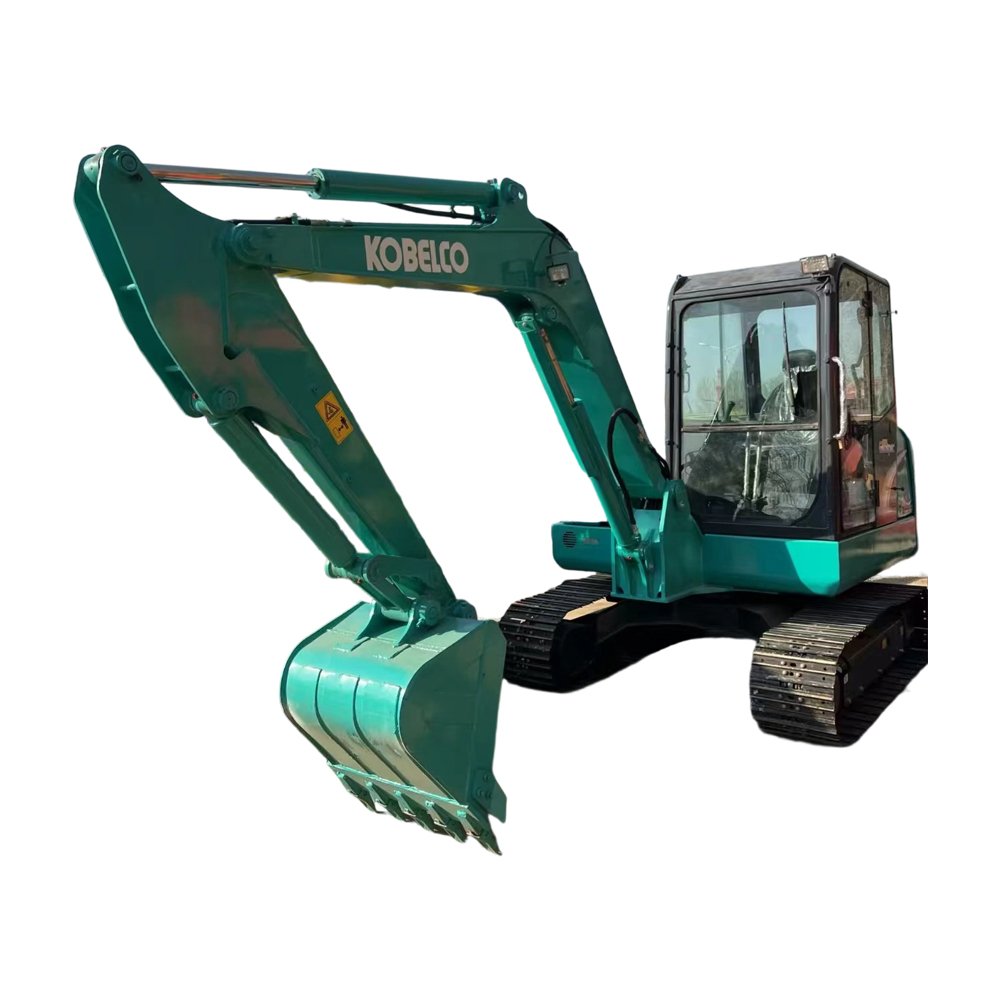

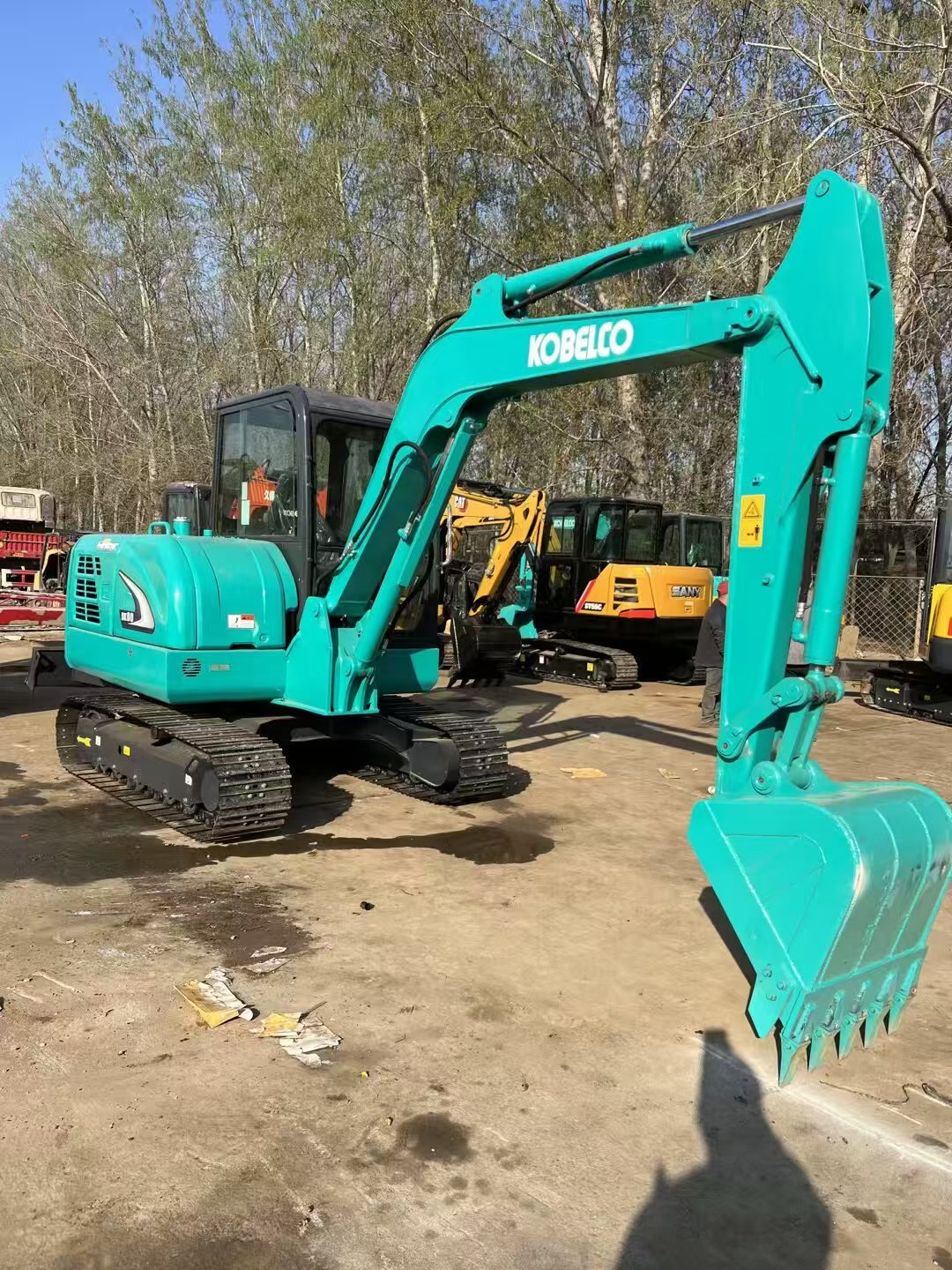

Used Kobelco SK60 Excavator
Kobelco SK60-8 compact hydraulic excavator embodies Kobelco’s commitment to excellence, integrating advanced features such as a Yanmar 4TNV94L direct-injection engine and the innovative IFPS hydraulic system for enhanced fuel efficiency and performance. Its redesigned bulldozer, reinforced boom/arm structures, and upgraded cab with improved visibility prioritize productivity, durability, and operator safety. This model underscores Kobelco’s focus on reliability, operational efficiency, and ergonomic design.
Share:

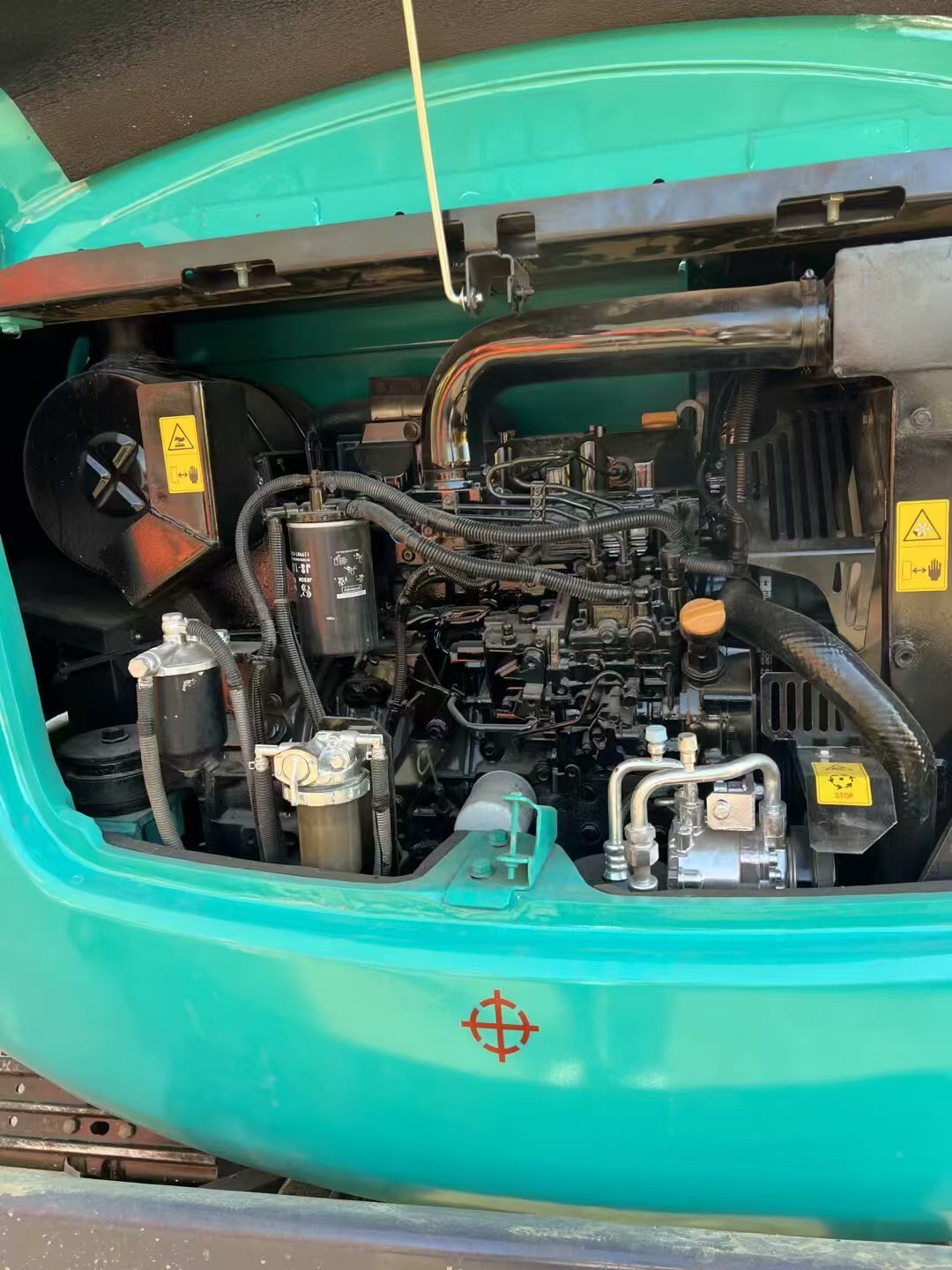

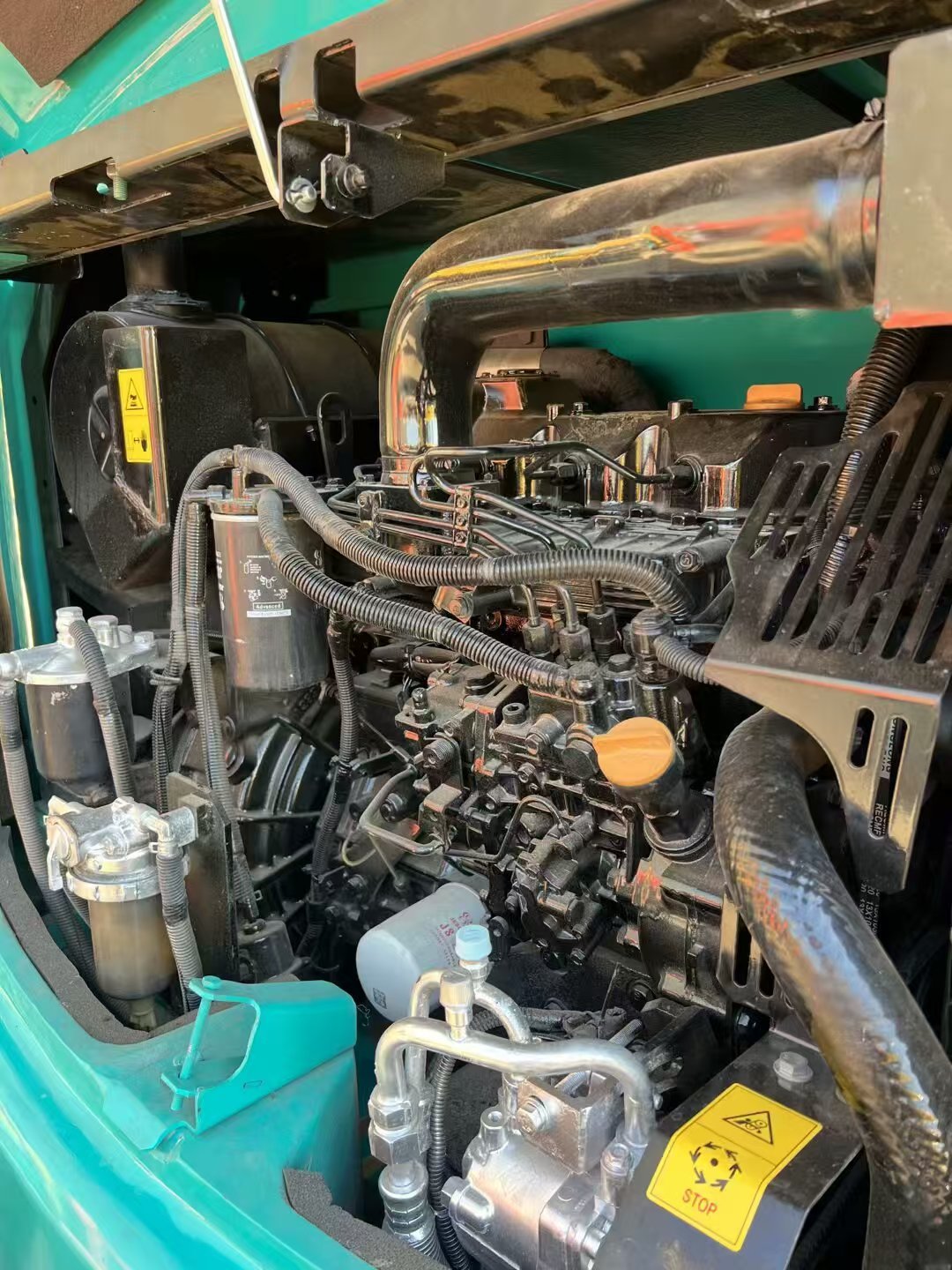

SK60 is equipped with a new hydraulic third pump confluence system IFPS and a specially designed 34.1KW/2400rpm Yanmar 4TNV94L direct injection 4-cylinder high-efficiency engine, which can handle various operating environments efficiently, quickly and smoothly with more powerful power performance.



New large and small arms with redesigned structural strength are safe, reliable, durable, and can withstand various high-load working environments. Equipped with a new cab that emphasizes safety and improves working vision, you will not feel tired even after driving for a long time. The unique, exquisite and rigorous internal equipment and external structure make ground inspection work time-saving and easy.


Inheriting the top technology of Kobelco 820, SK60-8 achieves low fuel consumption comparable to hybrid power, more economical fuel and more energy-saving. While ensuring strong operating performance, it can also achieve amazing ultra-low fuel consumption (reducing fuel consumption by 30% compared to standard mode). Compared with other brands under the same working conditions, the production efficiency of SK60-8 in low fuel consumption mode far exceeds that of other brands.

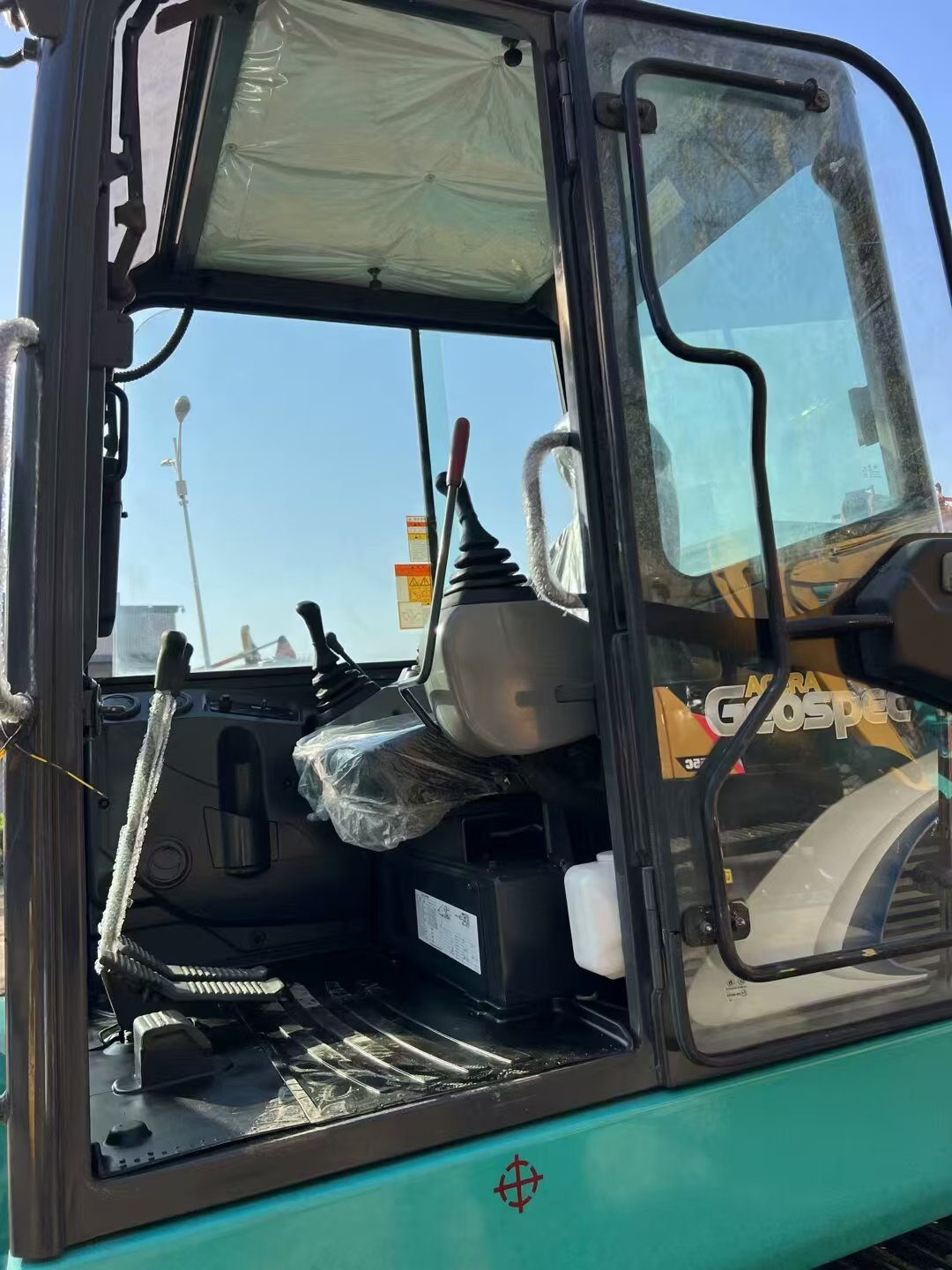

The front glass window of SK60-8 provides a wide field of vision. Compared with the previous generation of products, the width of the front window is extended to 710mm, and the total length of the cab is increased to 1445mm. The newly constructed cab greatly improves the working field of vision, reduces the blind spots to a minimum, and ensures the safety of operation to the greatest extent.

The starter motor can be accessed from the rear of the cab for maintenance. The work schedule is located to the right of the foot below the seat and can be viewed from the ground without opening the door or entering the cab. The floor mat is split front and back, so you only need to remove the easily dirty footrest for cleaning.

Technical Parameter

Model No. | SK60-8 |
---|---|
Operating weight | 5610kg |
Bucket capacity | 0.22m³ |
Total length for transport | 5850mm |
Total width for transport | 1960mm |
Total height for transport | 2550mm |
Track shoe width | 400mm |
Rear end swing radius | 1640mm |
Engine model | Yanmar 4TNV94L |
Rated power | 35.5kW/2400rpm |
Cooling method | Water Cooling |
Maximum torque | 21.7N.m/1440rpm |
Number of cylinders | 4 |
Working mode | Direct Injection |
Maximum digging radius | 6200mm |
Maximum digging depth | 3890mm |
Maximum digging height | 5730mm |
Maximum unloading height | 4200mm |
Maximum vertical digging depth | 2690mm |
Ground pressure ratio | 32.7Kpa |
Slewing speed | 8.9rpm |
Gradability | 58%(30 Degrees) |
Bucket digging force | 40.1kN |
Arm digging force | 25.2kN |
Travel speed | 4.2/2.5km/h |
Main pump type | Variable displacement piston pump × 2 + gear pump × 2 |
Bulldozer lift or push depth | 470/380mm |
Bulldozer blade width × height | 1960×345mm |
