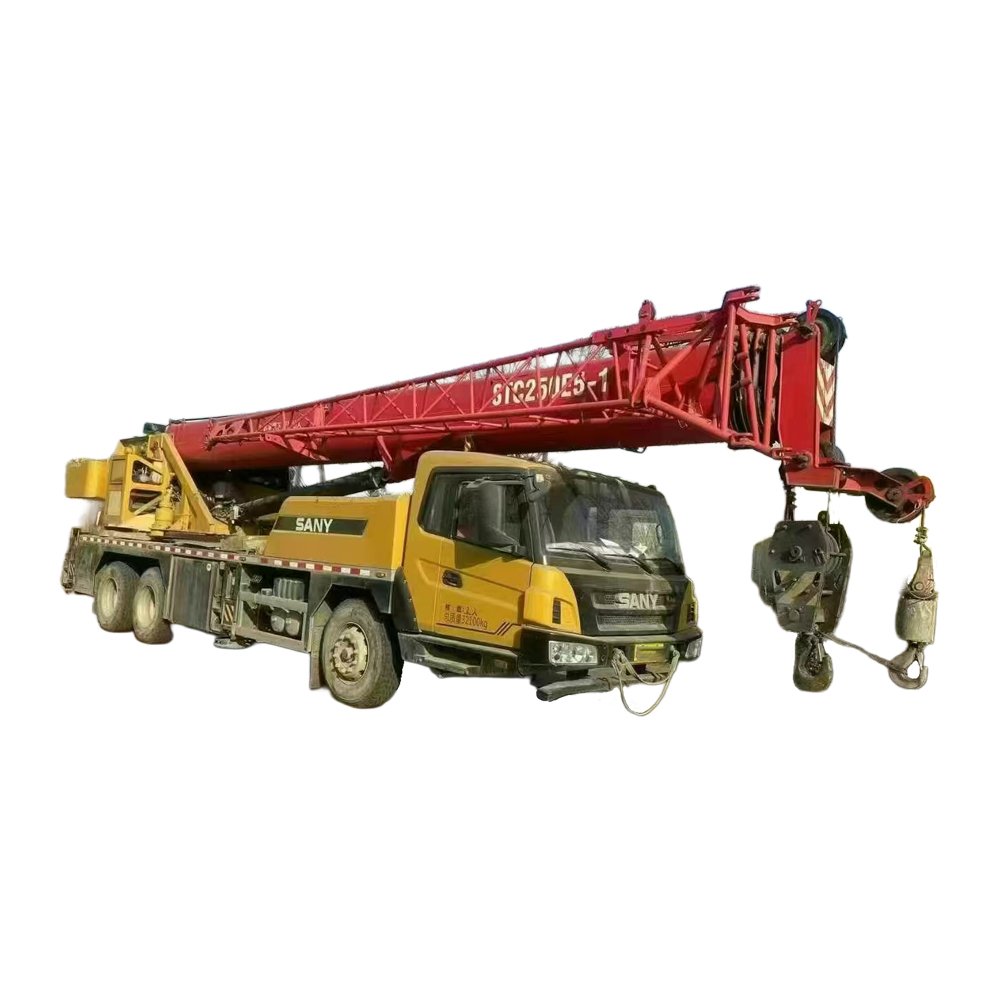

Used SANY 25 Tons Crane
Sany 25-ton crane delivers a 25-ton lifting capacity with a 41-45-meter main boom. Powered by a robust chassis, renowned engines, advanced hydraulics, and CAN bus control systems, it ensures precise operation and efficiency. The ergonomic cab includes air conditioning and a user-friendly interface, while its hybrid energy-saving design reduces environmental impact. Ideal for earthworks, highways, and municipal projects, its classic structure and reliable performance make it versatile for diverse heavy-duty applications.
Share:


Sany 25t crane demonstrates outstanding performance. It has an excellent lifting capacity, with a maximum rated lifting capacity of 25 tons. The full extension length of the main boom ranges from approximately 41 meters to 45 meters, the maximum lifting height is between 49 meters and 51 meters, and the lifting moment is between 1063 kN·m and 1250.5 kN·m.



The chassis performance is excellent and it is equipped with engines from well-known brands such as Dongfeng Cummins, Yuchai, and Weichai. The maximum speed can reach 80 to 90 kilometers per hour and the maximum climbing grade is between 30% and 49%.


This vehicle uses a heavy-duty high-strength frame, a double-stage reduction bridge and rubber suspension, and the span of the H-shaped legs is very large. The hydraulic system and control system are very advanced, using a dual-pump intelligent distribution system and a CAN bus control system, and have fault diagnosis functions and load limiters to ensure safety and reliability, and are both convenient and comfortable to operate.

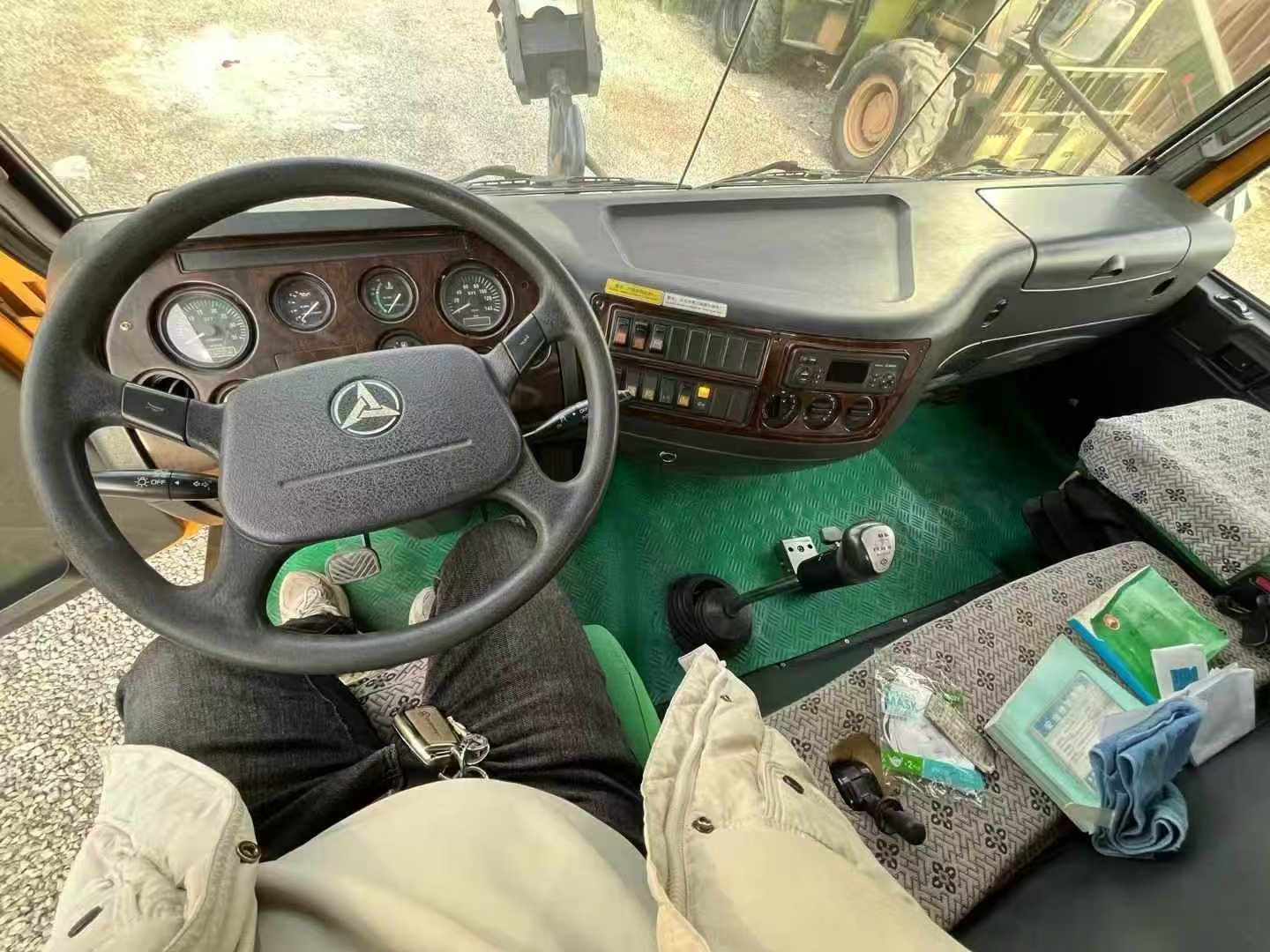

The design of the cab takes full consideration of ergonomics to ensure safety and comfort, and is equipped with air conditioning and other facilities. The operation adopts electro-hydraulic compound control, the handle is light, the control is precise, and the rotation and lifting are very stable. The appearance is classic red paint, and the size of the whole machine is designed just right. Some models also use hybrid technology, which is both energy-saving and environmentally friendly.

The application scope of Sany 25-ton crane is particularly wide, whether it is earthwork engineering, highway construction, municipal public works, garden landscape, plant construction, bridge construction, equipment installation and other occasions, it can be seen. This crane provides strong support for the efficient completion of various engineering projects.

Technical Parameter

Parameter Type | Specific Parameter |
---|---|
Maximum Rated Lifting Capacity | 25 tons |
Maximum Lifting Moment | 1063 kN |
Maximum Main Boom Length | 41 meters |
Maximum Auxiliary Boom Length | 8 meters |
Maximum Lifting Height | 49 meters |
Total Machine Weight | 34,200 kg |
Maximum Counterweight | 6.4 tons |
Total Machine Length | 13,250 mm |
Total Machine Width | 2,550 mm |
Total Machine Height | 3,620 mm |
Outrigger Span (Horizontal *Vertical) | 6.4 * 5.4 m |

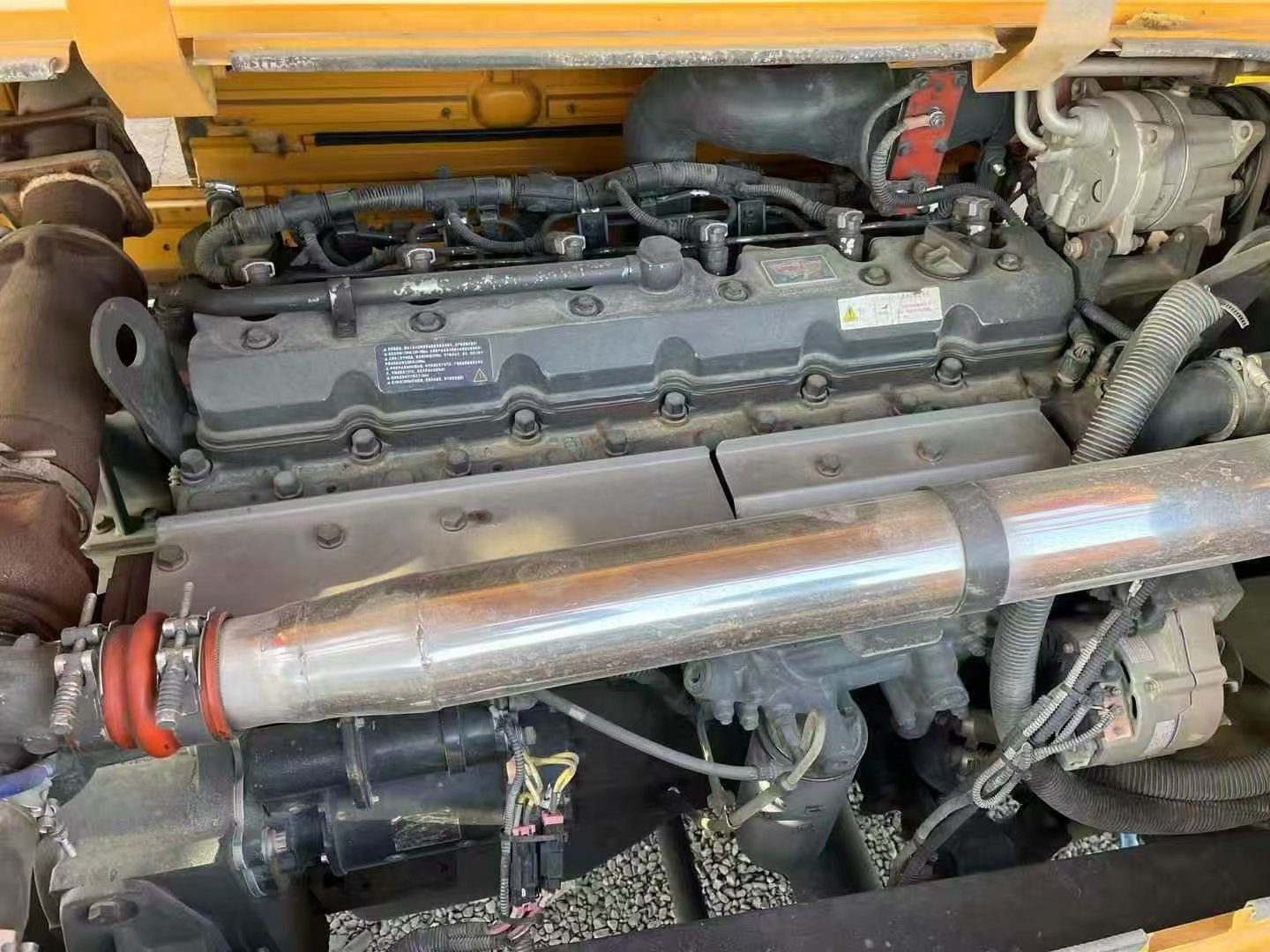

Engine Model | Weichai WP9H310E50 (National Emission Standard V) |
Maximum Engine Power | 228/1900 kW/rpm |
Maximum Engine Output Torque | 1500/(1000 - 1400) N路m/rpm |
Maximum Driving Speed | 90 km/h |
Minimum Turning Radius | 11 m |
Maximum Gradient Ability | 0.49 |
Approach Angle | 10 |
Departure Angle | 12 |
Minimum Ground Clearance | 250 mm |
Maximum Single Rope Speed of Main Hoist | 145 m/min |
Full Extension/Retraction Time of Boom | 90/100 s |
Full Lifting/Lowering Time of Boom | 35/45 s |
Maximum Slewing Speed | 2.5 r/min |
