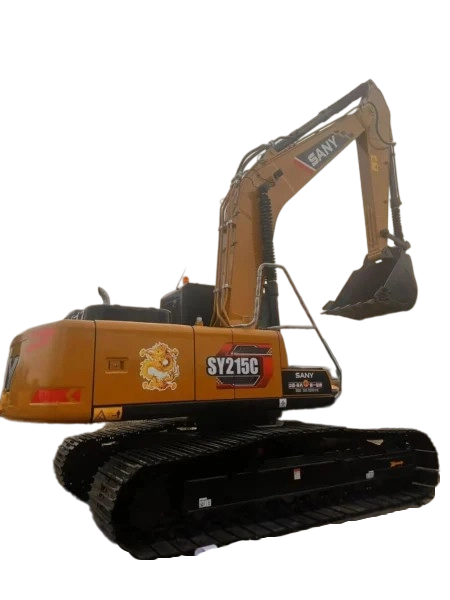

Sany SY215C is a 21-ton earthmoving excavator produced by Sany Heavy Industry, with many highlights. In terms of power and performance, it is equipped with a Mitsubishi Fuso 4M50 engine with a power of 118 kilowatts, high torque, and fast dynamic response. It adopts EGR+DOC+DPF technology, meets the National IV emission standards, and can also reduce fuel consumption and emissions, which is environmentally friendly and economical.

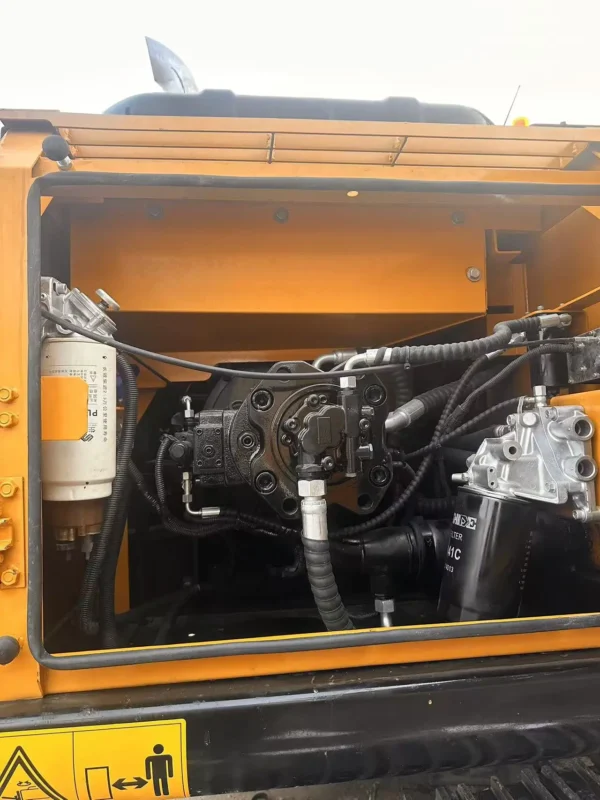

Speaking of hydraulic systems, this excavator is equipped with Kawasaki’s fully electronically controlled main valve and main pump, which realizes stick regeneration and fast oil return, greatly improving the overall excavation efficiency and controllability. The displacement of the plunger pump has been increased from 112cc to 125cc, an overall increase of 5% to 10%, which makes the engine speed range wider and easier to operate within the economic fuel consumption range.


Speaking of hydraulic systems, this excavator is equipped with Kawasaki’s fully electronically controlled main valve and main pump, which realizes stick regeneration and fast oil return, greatly improving the overall excavation efficiency and controllability. The displacement of the plunger pump has been increased from 112cc to 125cc, an overall increase of 5% to 10%, which makes the engine speed range wider and easier to operate within the economic fuel consumption range.


In terms of safety, this excavator is equipped with a delayed nighttime parking light, and a one-touch switch function for the front and rear display screens and rearview camera to ensure driving safety. As for work efficiency, it can improve efficiency by 17% during leveling operations and 23% during loading and unloading operations, which is really safe and efficient.

In terms of new technology, this excavator has upgraded buckets, with earthwork buckets as standard and rock buckets as optional, achieving “one bucket for one working condition” to meet the needs of different working conditions. The fully electronically controlled hydraulic system uses Hope’s fully electronic control technology, which improves the overall excavation efficiency and controllability. With its outstanding performance, efficient operation capability and advanced technical configuration, Sany SY215C has become an ideal choice in the field of engineering and construction.

Technical Parameter

Category | Parameters |
---|---|
Model | SANY-SY215C |
Engine Model | Mitsubishi 6D34 |
Bucket Capacity | 0.93(0.8~1.2) |
Vehicle width | 2710mm |
Track grounding length | 3445mm |
Track length | 4250mm |
Track Width | 600(optional 800/700)mm |
Track width | 2980mm |
Track gauge | 2380mm |
Minimum ground clearance | 440mm |
Minimum Radius of Gyration of Front Working Unit | 3595mm |
Slewing speed | 11(rpm) |
Walking speed | 5.4/3.3(km / h) |
Slope ability | 70/35° |
Ground specific voltage | 46.5(Kpa) |
Bucket Digging Force | 138(KN) |
Digging force | 103(KN) |
Total Length *width*height of Transport | 9680(mm)x2980(mm)x3440(mm) |
Driving Room Full Height | 2990(mm) |
Maximum excavation radius | 9950(mm) |
Maximum excavation depth | 6600(mm) |
Max.excavation height | 9570(mm) |
Maximum unloading height | 6700(mm) |
Maximum vertical excavation depth | 5800(mm) |
Place of Origin | China |
USED SANY 215 EXCAVATOR VIDEO
