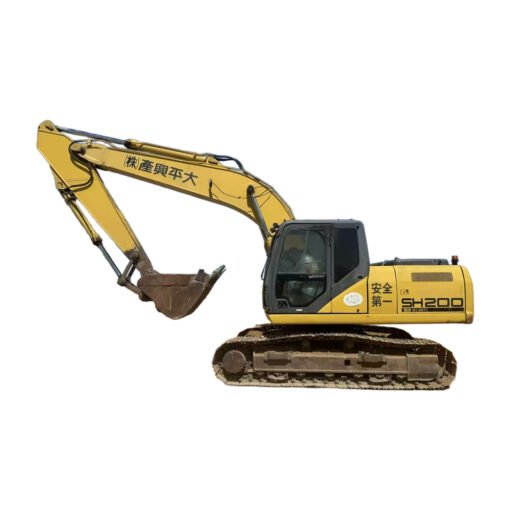

USED Sumitomo 200A5 EXCAVATOR

Sumitomo 200A5 excavator is a 20-ton equipment with a working weight of 19,100kg and stable operation. It is equipped with an Isuzu A-6BG1T engine with a rated power of 103kW/1950rpm. It is powerful and can easily cope with various working conditions.

With the advanced hydraulic system, the main pump type is a 2× variable axial piston pump, the maximum flow of the main pump is 422L/min, and the working hydraulic oil circuit pressure is 36.8MPa, which makes the bucket digging force reach 140kN, the bucket arm digging force is 106kN, the operation is efficient, the rotation speed is 11.5rpm, and the travel speed is 3.4/5.6km/h, which is both flexible and maneuverable. ​

In terms of design, the Sumitomo 200A5 excavator has outstanding highlights. The bucket capacity is 0.8m³, which can adapt to a variety of operating needs. The total transport length is 9400mm, the total width is 2800mm, and the total height is 2970mm, which is convenient for transfer.

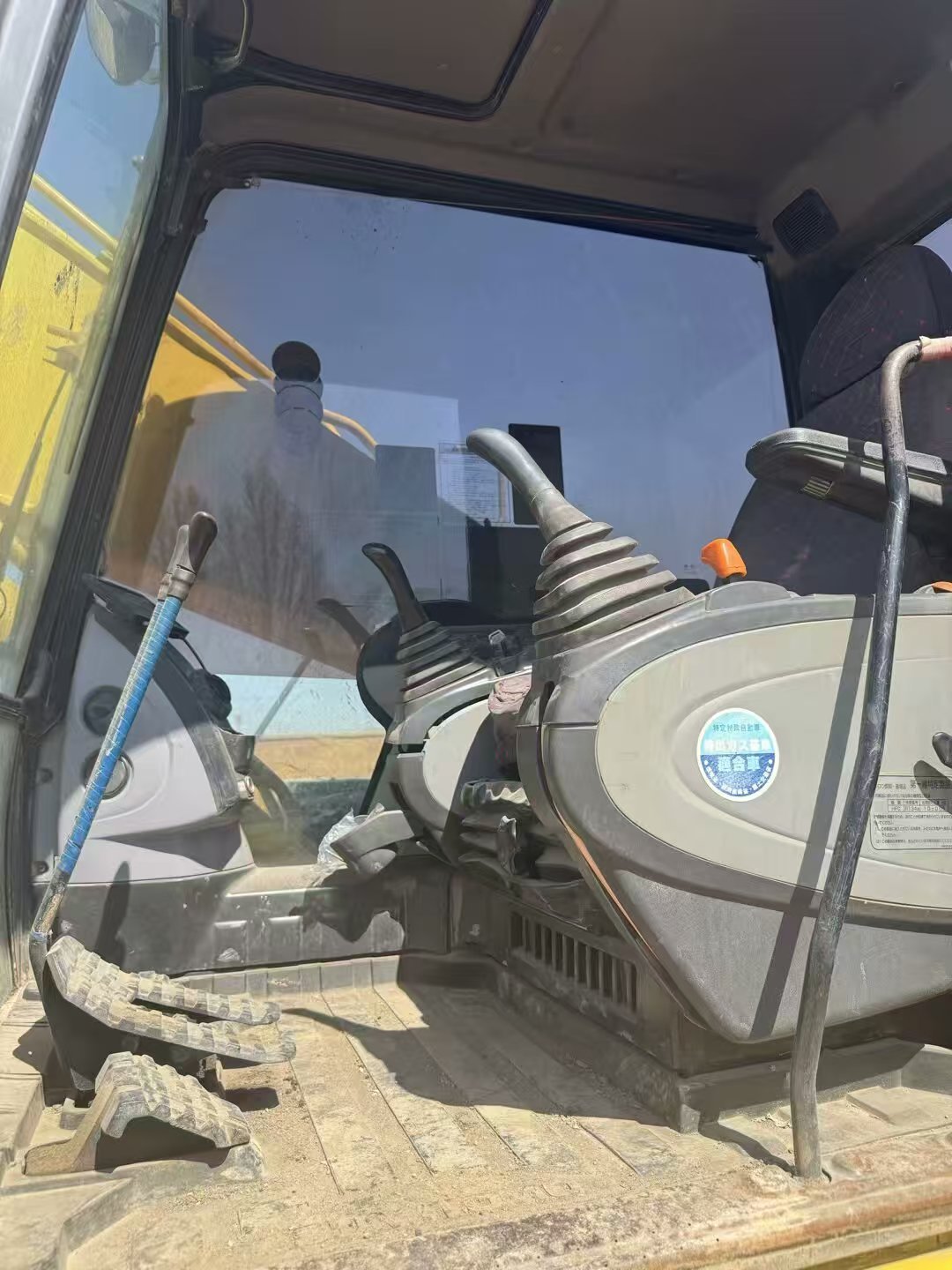

The cab is 2940mm high, with a wide field of vision and comfortable operation. The track grounding length is 3370mm, the track shoe width is 600mm, and the grounding pressure ratio is reasonable to ensure driving stability.

The maximum excavation radius is 9900mm, the maximum excavation depth is 6650mm, and the operating range is wide, which can meet the excavation tasks in different scenarios such as construction and mining.

Used Sumitomo 200A5 VIDEO
