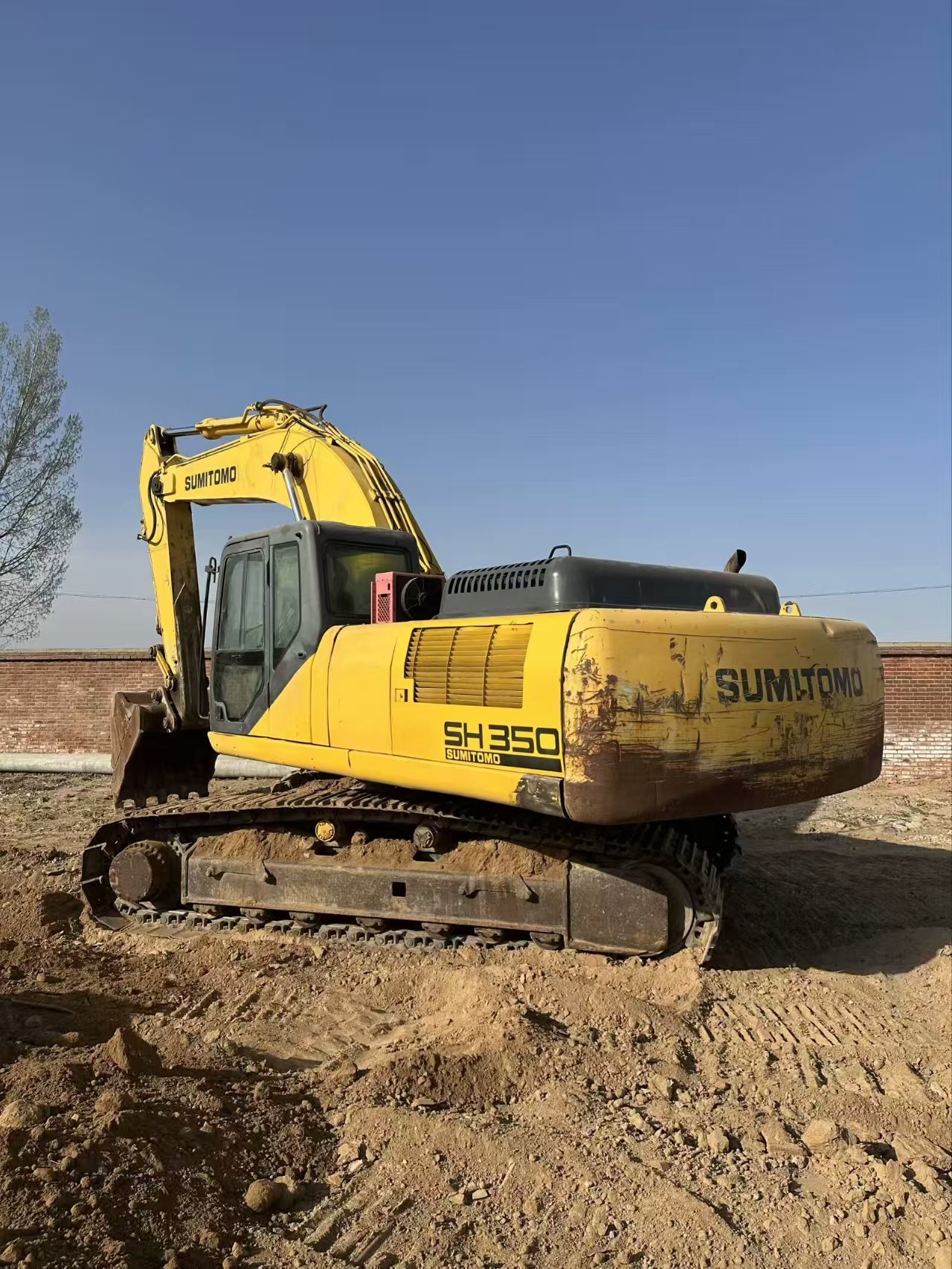

Used SUMITOMO 350 excavator
The Sumitomo 350A5 excavator excels in earthwork with its 35,200 kg operating weight and 202 kW Isuzu engine, ensuring high efficiency in tough tasks. Its quick rotation and travel speeds, along with powerful digging forces in standard and boost modes, boost productivity. The advanced “SPACE5” engine cuts emissions, while safety features like anti-fall valves protect operations. With versatile bucket capacities, precise hydraulics, and robust build, it’s ideal for large-scale projects on any terrain.
Share:

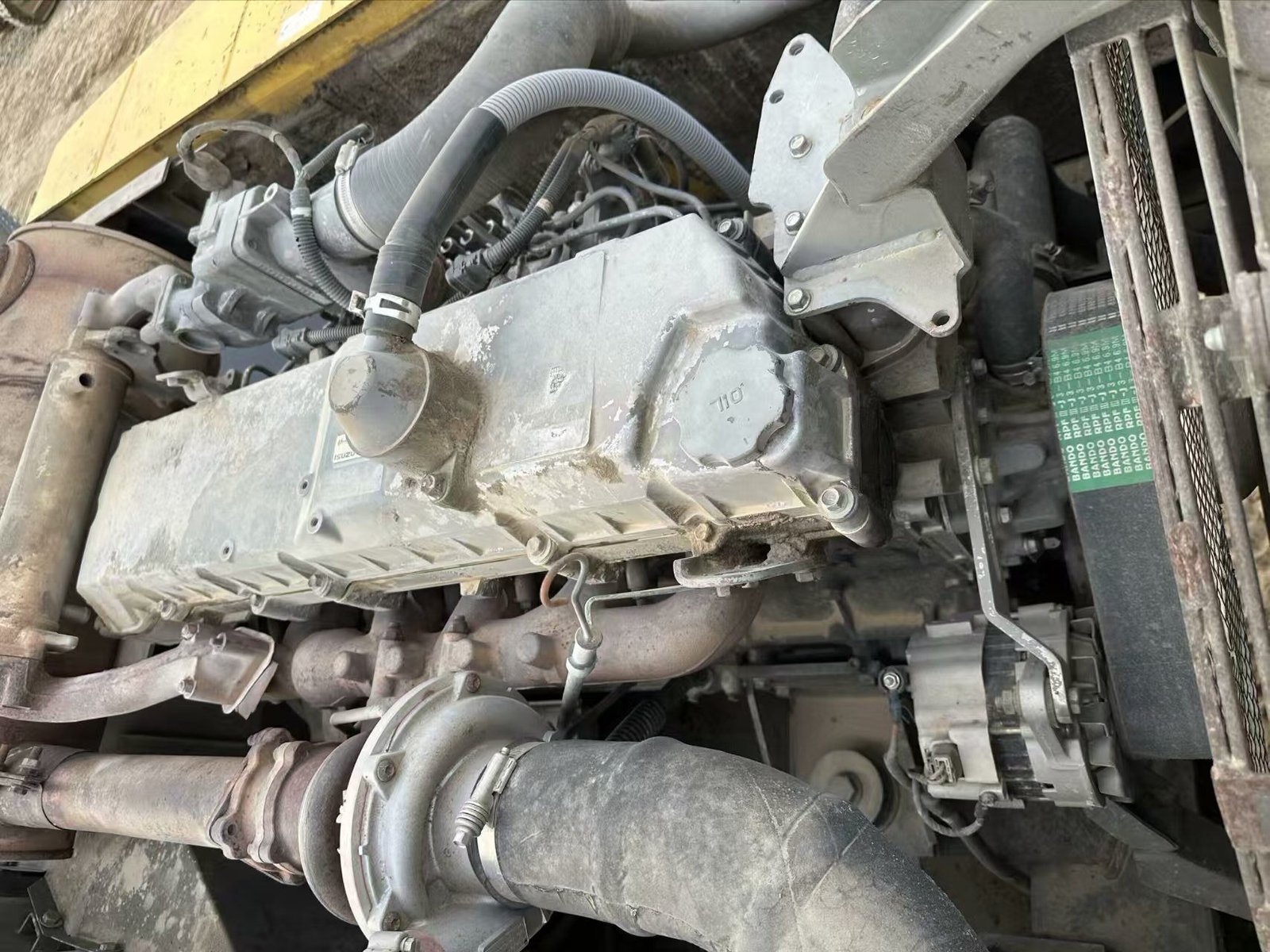

The Sumitomo 350A5 excavator is a good helper for earthwork. The machine has a curb weight of 35,200 kg and is powered by an Isuzu AH-6HK1XYSS engine with a rated output of 202 kW. The machine is stable and powerful, and can easily cope with complex and heavy working conditions such as mining and large earthwork. Its speed is as high as 9.8 rpm, and its driving speed can reach 5.5 km/h in high-speed and 3.5 km/h in low-speed , with flexible control.



The bucket digging force is 229 kN in standard mode, and it can soar to 248 kN in boost mode. In the corresponding modes, the digging force of the bucket arm is 164 kN and 178 kN respectively, with extremely high digging efficiency.
In terms of design and configuration, the Sumitomo 350A5 also have many highlights. It uses the advanced “SPACE5” engine system to effectively reduce exhaust emissions and meet environmental protection standards.

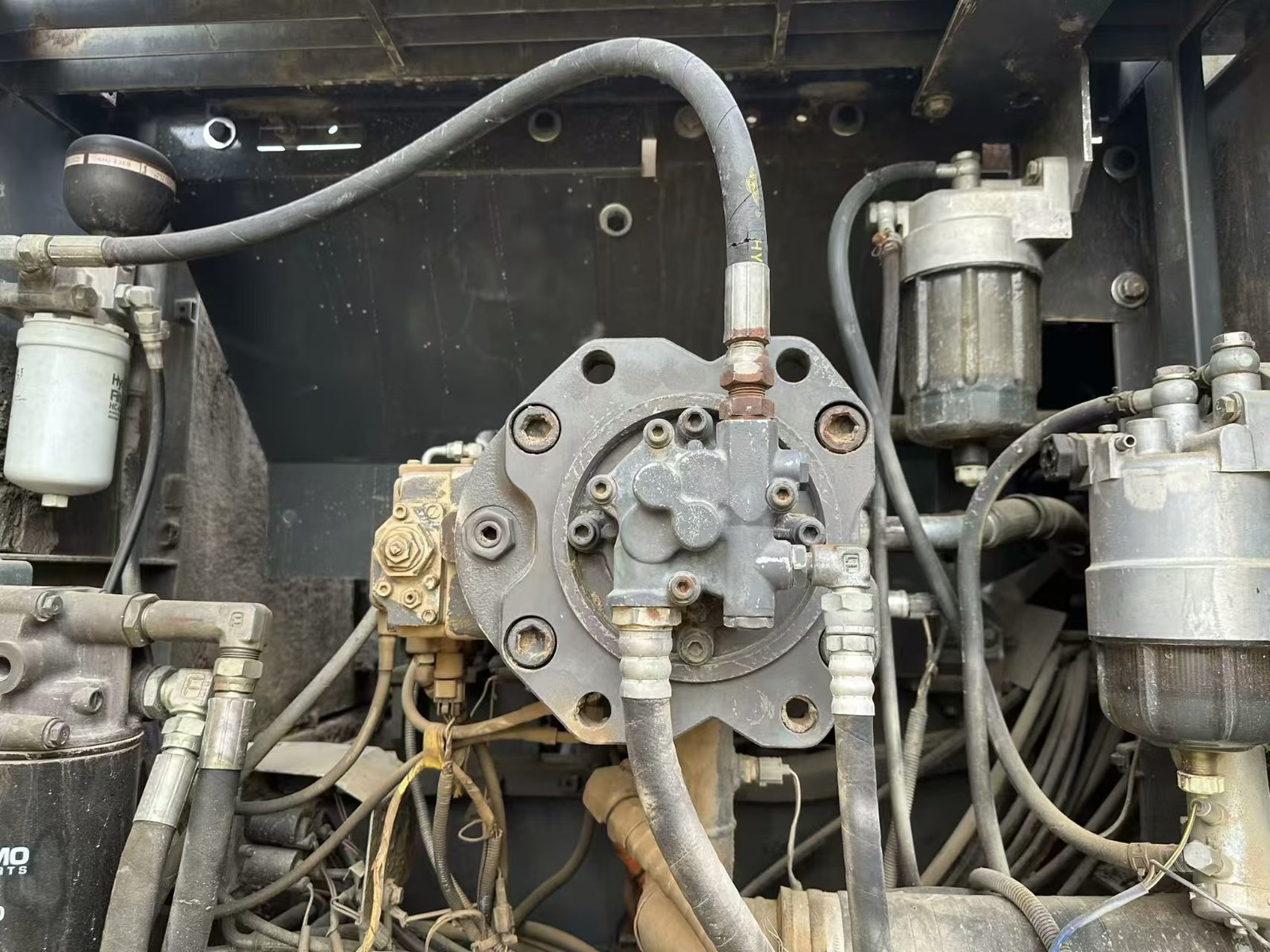

The unique valve design effectively prevents the boom and arm from falling naturally, ensuring the safety of operation. The bucket capacity ranges from 1.2 to 1.8m³, the boom length is 6400mm, the arm length is 3200mm, and it is equipped with a high-performance hydraulic system, providing fast operation response and precise and smooth movements. When transporting the whole machine, the total length is 11050mm, the total width is 3200mm, and the total height is 3260mm. The sturdy body structure and stable chassis make it fearless of complex terrain. With excellent performance and reliable quality, it lays a solid foundation for various large-scale construction projects.

Technical Parameter

Machine working weight | 5390kg |
---|---|
Bucket width | 700mm |
Bucket capacity | 0.22m³ |
Slewing speed | 10rpm |
Travel speed | high 4.0km/h, low 2.0km/h |
Ground pressure | 29.9Kpa |
Bucket digging force | 41.9kN |
Arm digging force | 24.5kN |
Engine model | YANMAR 4TNV84T - ZMBV (turbocharged) |
Engine type | four-cylinder water-cooled diesel engine |
Rated power | 32.6kW/2200rpm |
Cooling method | water cooling |
Fuel tank capacity | 66L |
Total transport length | 5510mm |
Total transport width | 1970mm |
Total transport height | 2540mm |
Track shoe width | 400mm |
Boom swing angle (left/right) | 68°/68° |
Bulldozer blade width × Height | 1970mm×400mm |
Bulldozer lift or push depth | 445mm/465mm |
Pump flow | 45.8×2 + 37.0×1 + 10.8×1 L/min |
Main overflow pressure | 24.5×3 Mpa |
