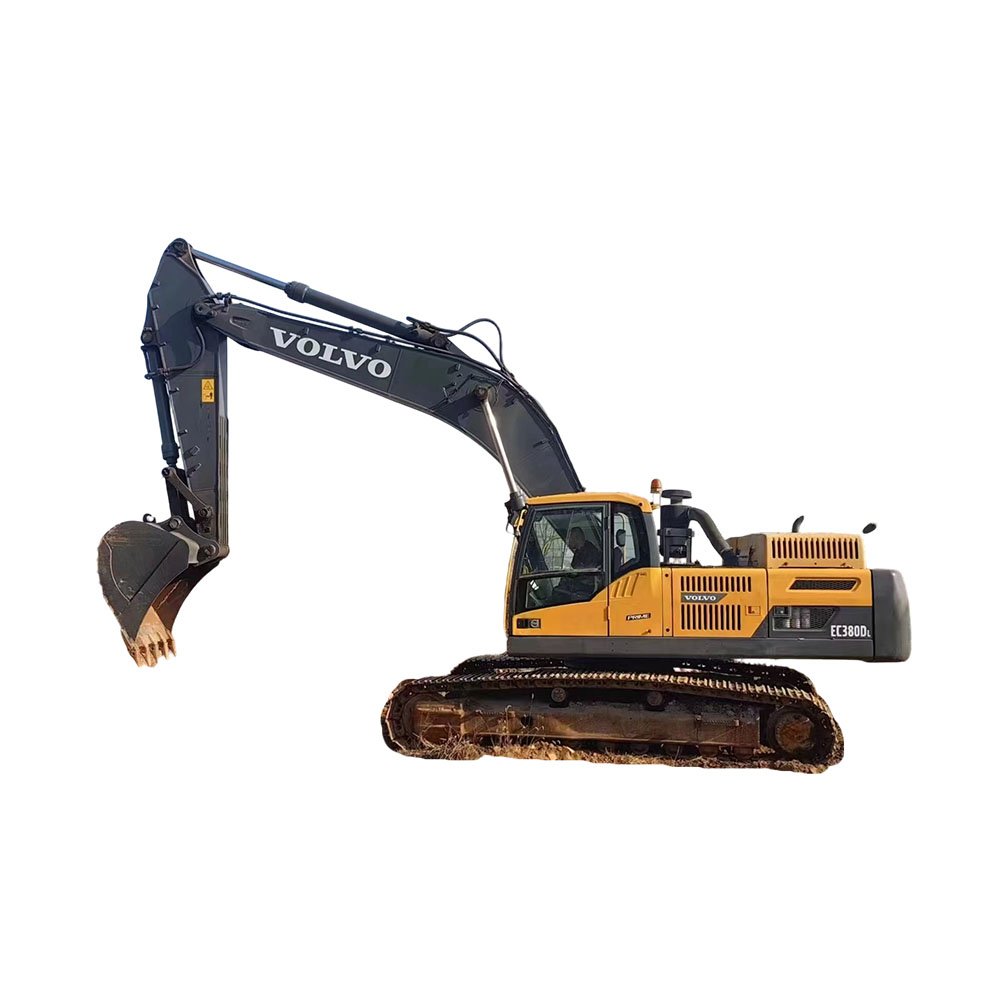

Used Volvo 380 excavator
For superior engineering performance, choose the Volvo 380 excavator. With robust specs like a 39,845kg operating weight and 245kW power, it excels in digging tasks. Its advanced tech, including an electronically controlled hydraulic system and intelligent engine functions, boosts efficiency by 5%. Plus, the Volvo Care Cab with top – notch safety features ensures both comfort and security, making it the go – to machine for complex projects.
Share:
Used Volvo 380 excavator
For superior engineering performance, choose the Volvo 380 excavator. With robust specs like a 39,845kg operating weight and 245kW power, it excels in digging tasks. Its advanced tech, including an electronically controlled hydraulic system and intelligent engine functions, boosts efficiency by 5%. Plus, the Volvo Care Cab with top - notch safety features ensures both comfort and security, making it the go - to machine for complex projects.
The Volvo 380 excavator has excellent performance and is a reliable choice for engineering operations. With an operating weight of 39,845 kg, a total power of 245 kW, and a bucket volume of 1.9 cubic meters, this model performs well in both digging force and operating efficiency.
Its maximum digging range can reach 11,220 mm and its maximum digging depth can reach 7,590 mm, which can easily cope with various complex engineering scenarios.

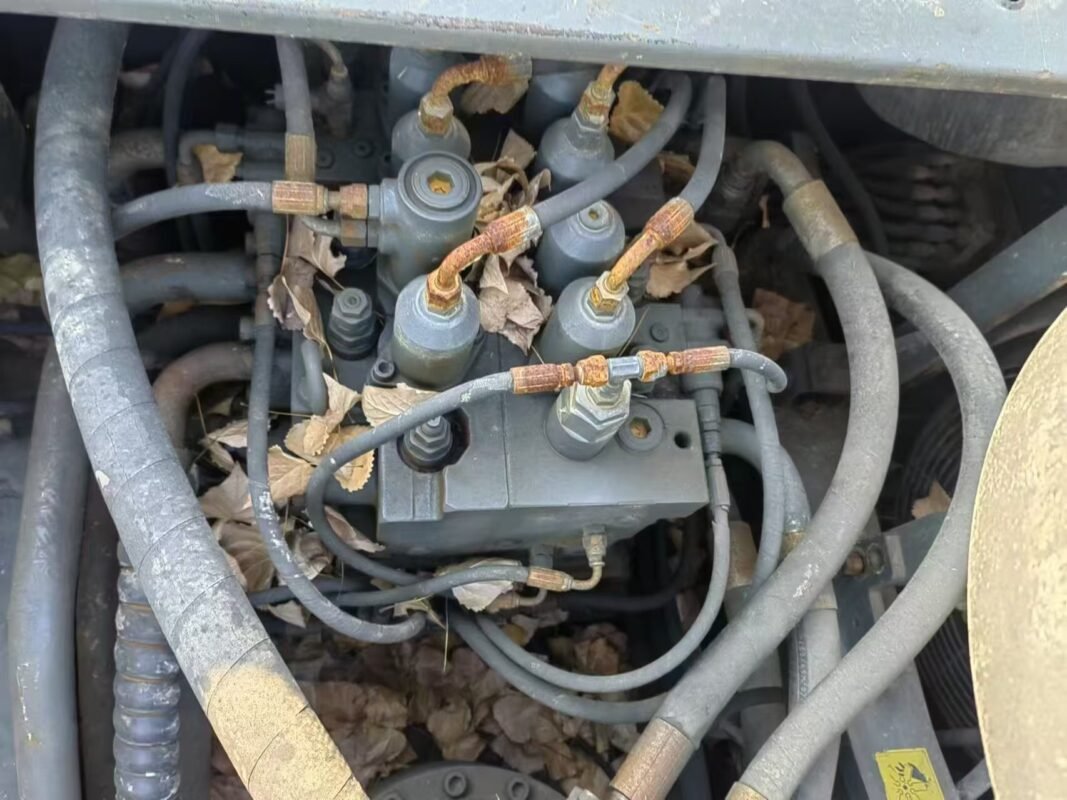

This excavator has many technical highlights. The new generation of electronically controlled hydraulic system, with optional working mode and engine automatic shutdown/idling function, improves fuel efficiency and production efficiency by 5%.
At the same time, Volvo’s unique working mode and throttle control combination technology enable the machine to maintain optimal performance under different working conditions.

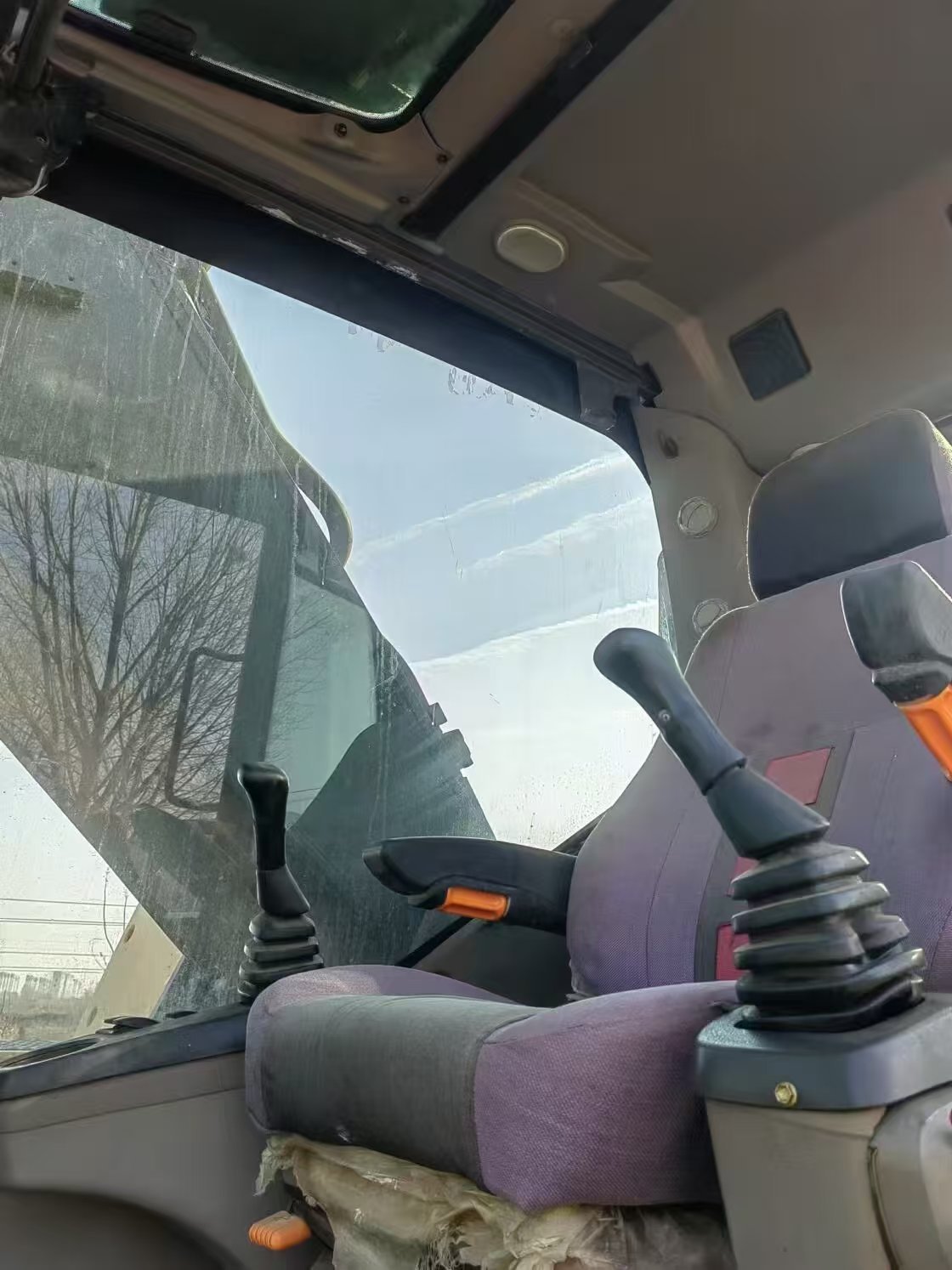

The Volvo Care Cab with low noise, low vibration and excellent visibility, as well as safety configurations such as anti-slip pedals, handrails, ROPS-certified cab, and rearview camera, not only ensures the operator’s comfortable experience, but also ensures safety during the operation.
Technical Parameter
| Parameter | Value |
|---|---|
| Operating Weight | 38,000 – 39,400 kg |
| Bucket Capacity | 1.6 – 2.7 m³ |
| Boom Length | 6,450 mm |
| Arm Length | 3,900 mm |
| Origin | South Korea |
| Swing Speed | 10.2 rpm |
| Travel Speed | 3.4 / 5.53 km/h |
| Gradability | 35° |
| Ground Contact Pressure | 68.1 kPa (with 600mm track shoes) |
| Bucket Digging Force (Standard/Boost) | 221.7 kN / 242.7 kN |
| Arm Digging Force (Standard/Boost) | 144.4 kN / 157.4 kN |

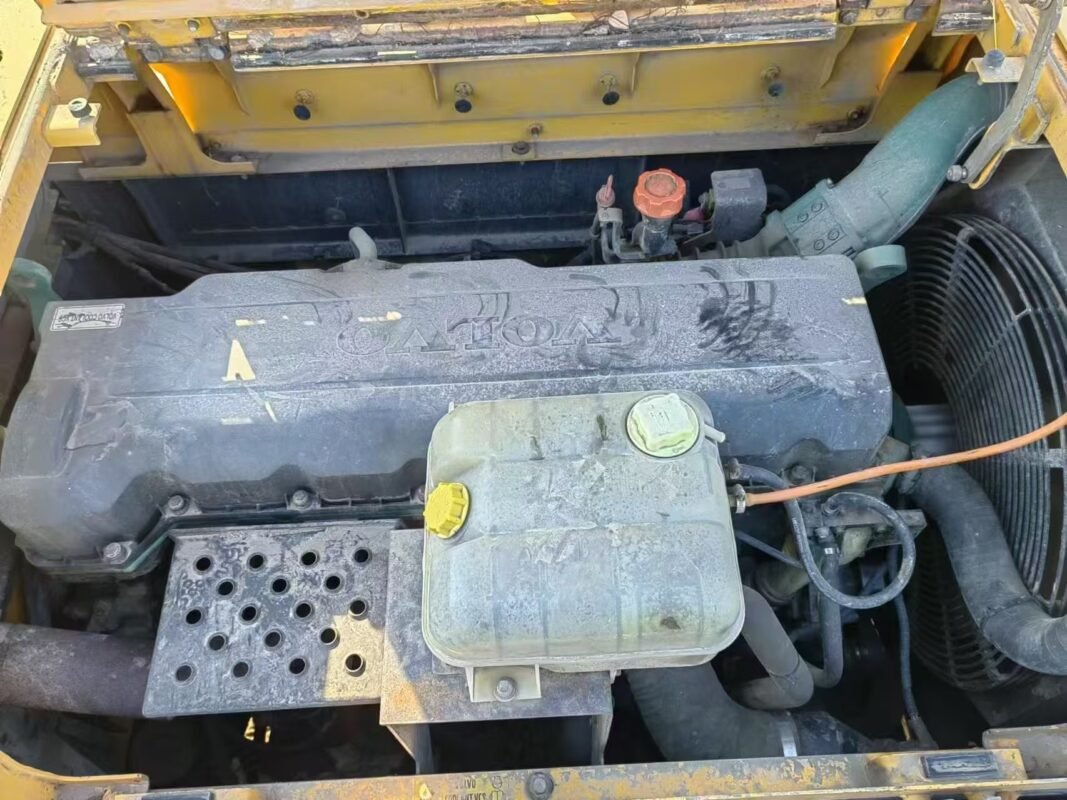

| Model | Volvo D13H-D |
| Rated Power | 208 kW @ 1,700 rpm |
| Displacement | 12.8 L |
| Cylinders | 6 |
| Bore × Stroke | 131 × 158 mm |
| Cooling Method | Water-cooled, air-to-air intercooled (US Tier 4i / EU IIIB compliant) |

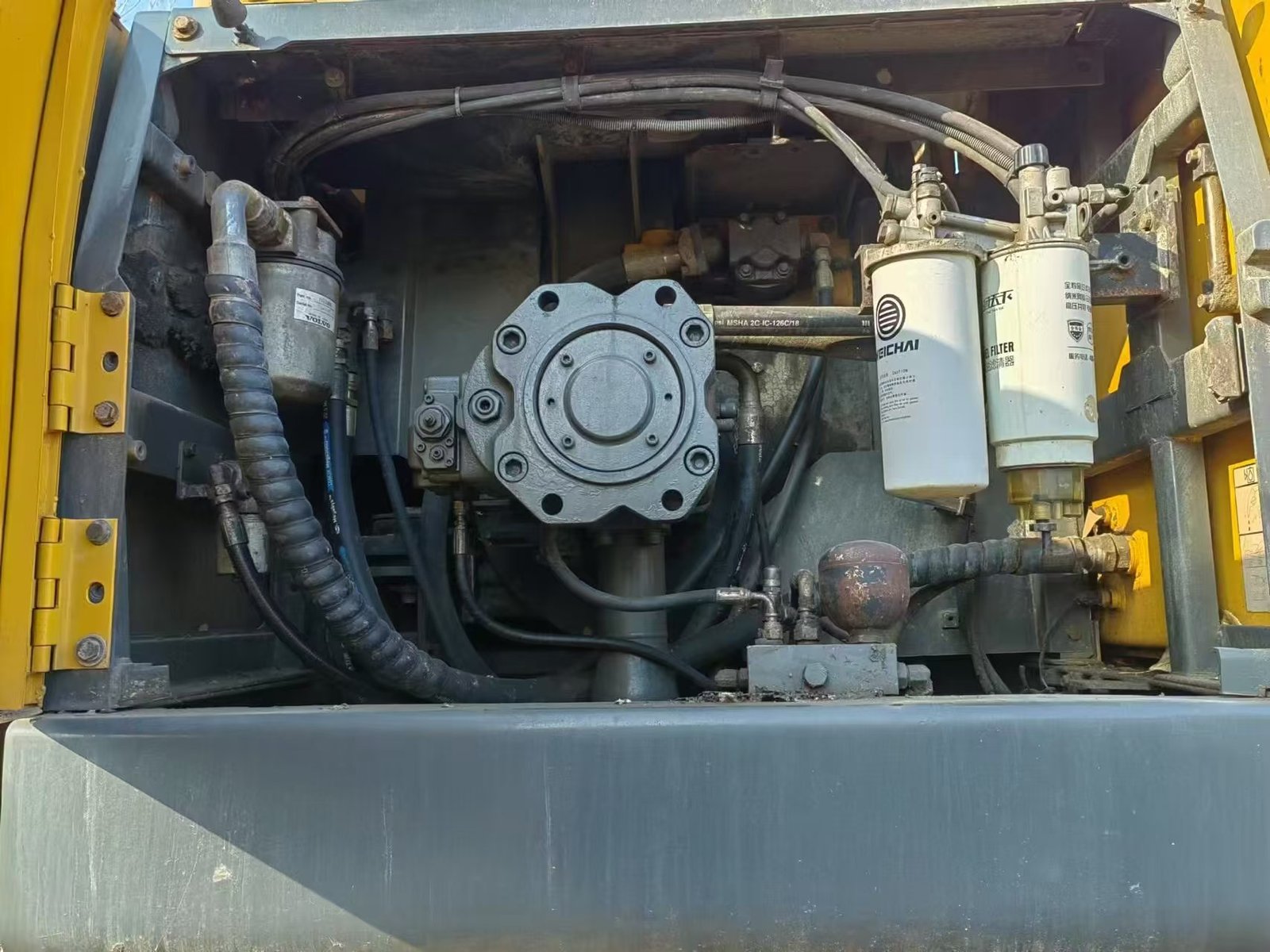

| Main Pump Type | 2 × Variable axial piston pumps + Pilot gear pump |
| Main Pump Max Flow | (300 × 2) + 25.5 L/min |
| Travel Hydraulic Motor Type | Variable axial piston motor (with mechanical brake) |
| Swing Hydraulic Motor Type | Fixed displacement axial piston motor (with mechanical brake) |
| Working Hydraulic Pressure | 32.4 / 35.3 MPa |
| Travel Hydraulic Pressure | 35.3 MPa |
| Swing Hydraulic Pressure | 27.9 MPa |
| Pilot Oil Pressure | 3.9 MPa |
| Boom Cylinder (Qty × Bore × Stroke) | 2 × 160 × 1,530 mm |
| Arm Cylinder (Qty × Bore × Stroke) | 1 × 175 × 1,750 mm |
| Bucket Cylinder (Qty × Bore × Stroke) | 1 × 145 × 1,285 mm |
| Fuel Tank Capacity | 620 L |
| Hydraulic Tank Capacity | 220 L |
| Hydraulic System Capacity | 500 L |
| Engine Oil Change Capacity | 42 L |
| Coolant Capacity | 60 L |
| Transport Length | 11,290 mm |
| Transport Width | 3,340 mm |
| Transport Height | 3,590 mm (boom height) |
| Cab Height | 3,197 mm |
| Counterweight Ground Clearance | 1,210 mm |
| Track Length | 5,180 mm |
| Track Shoe Width | 600/700/800/900 mm (three-tooth) |
