Used XCMG 25 Tons Crane
Boost your construction efficiency with XCMG’s 25-ton crane. Weighing 32 tons, its 12500×2500×3450mm build balances stability and agility. Powered by a 199kW Weichai WP10.270 engine with 1020N・m torque, it excels in diverse terrains, reaching speeds up to 75km/h and climbing 40% grades with ease. The crane’s 10.8-34m main arm, 7.5m jib, and 41.5m max lift height handle 25-ton loads effortlessly, while rapid 110/105m/min winch speeds speed up projects. Its optimized chassis, paired with 11.00-20 tires, ensures steadfast operation, and the 32MPa hydraulic system with a 280L tank supports continuous use across construction, bridgework, and port operations. Trust XCMG for durable, high-performance lifting solutions.
Share:
Used XCMG 25 Tons Crane
Boost your construction efficiency with XCMG's 25-ton crane. Weighing 32 tons, its 12500×2500×3450mm build balances stability and agility. Powered by a 199kW Weichai WP10.270 engine with 1020N・m torque, it excels in diverse terrains, reaching speeds up to 75km/h and climbing 40% grades with ease. The crane's 10.8-34m main arm, 7.5m jib, and 41.5m max lift height handle 25-ton loads effortlessly, while rapid 110/105m/min winch speeds speed up projects. Its optimized chassis, paired with 11.00-20 tires, ensures steadfast operation, and the 32MPa hydraulic system with a 280L tank supports continuous use across construction, bridgework, and port operations. Trust XCMG for durable, high-performance lifting solutions.

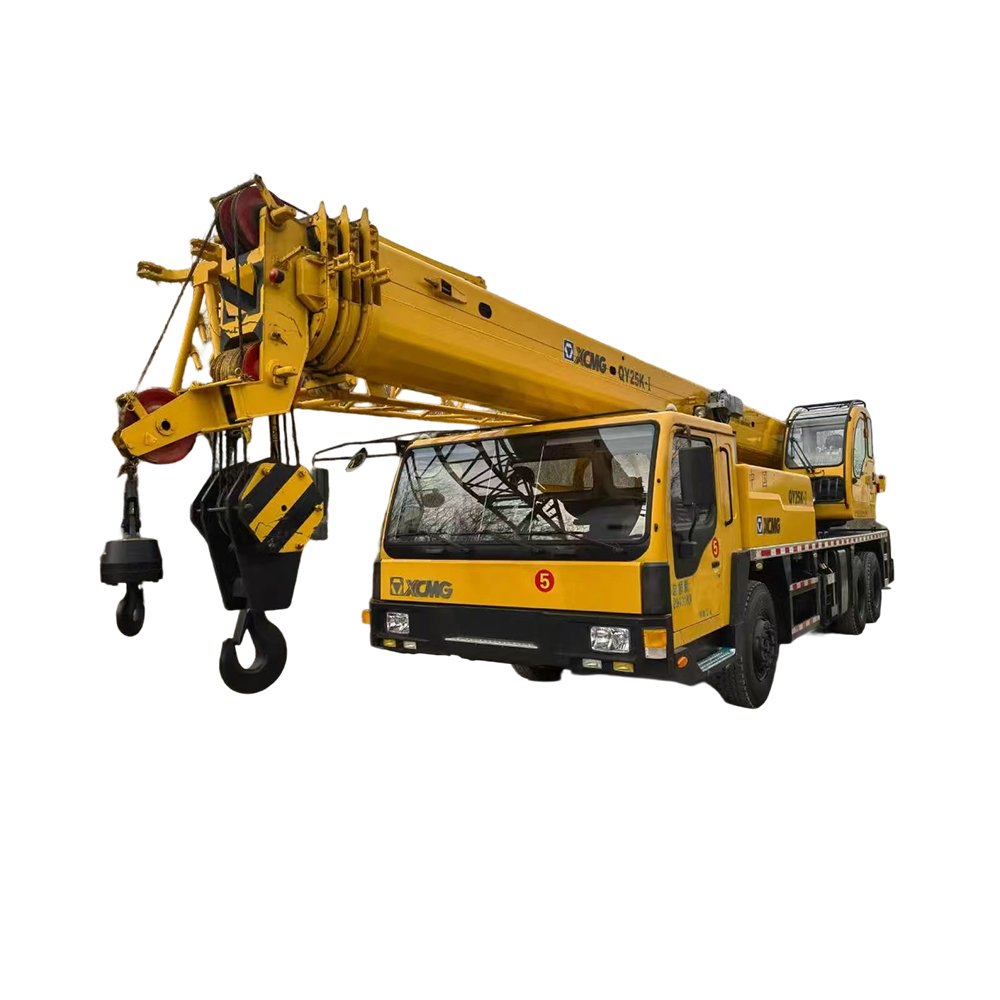

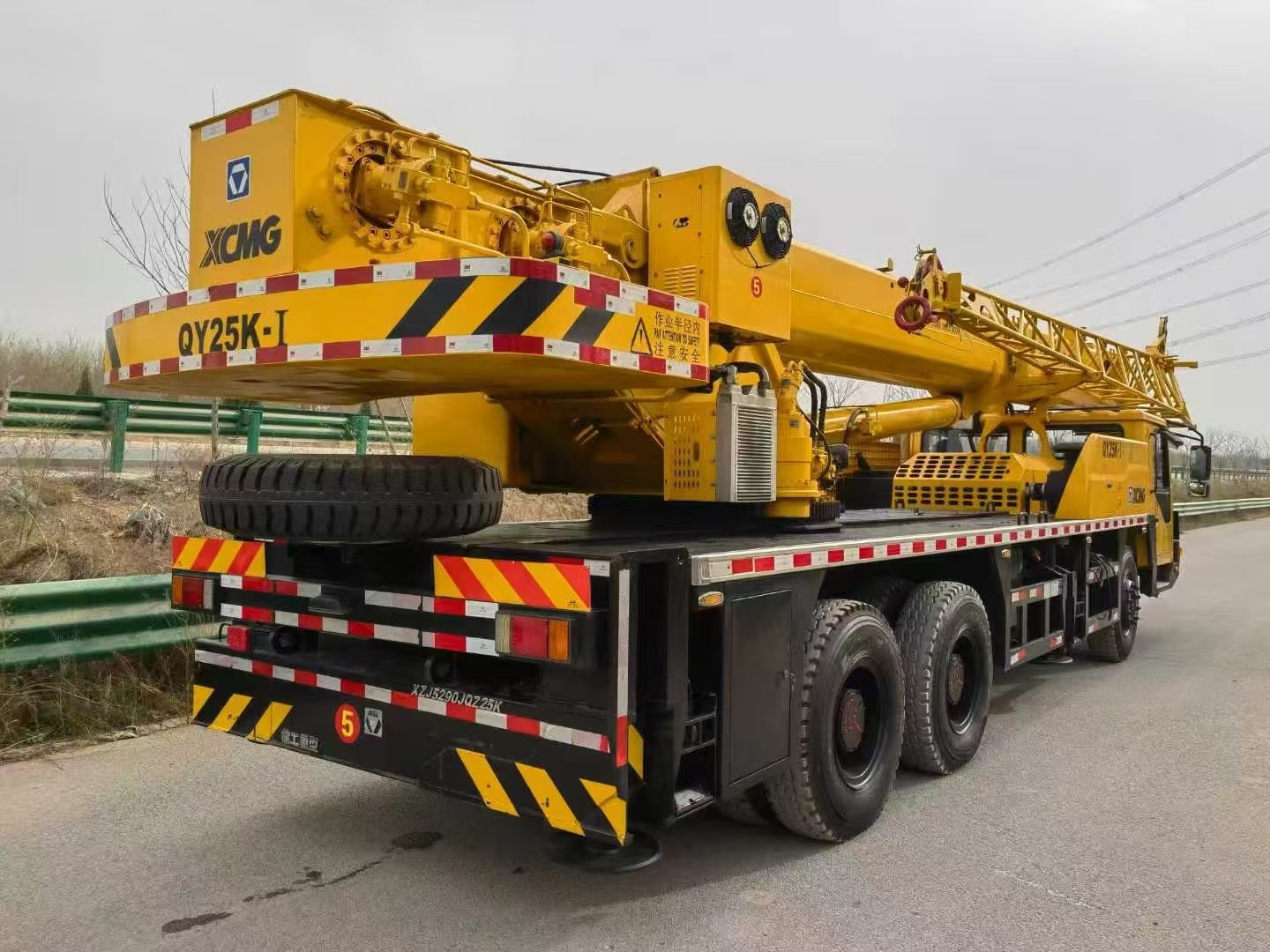

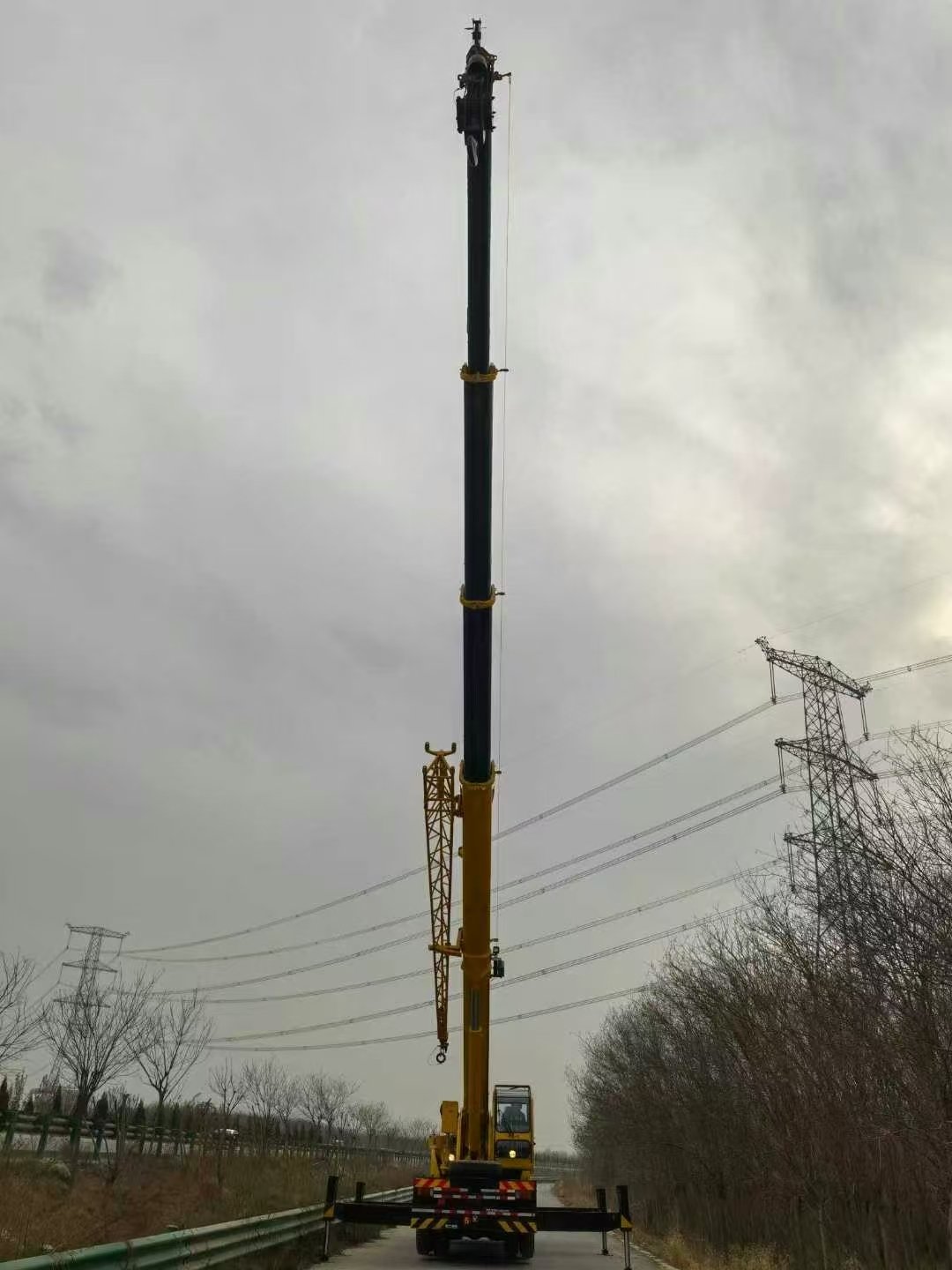

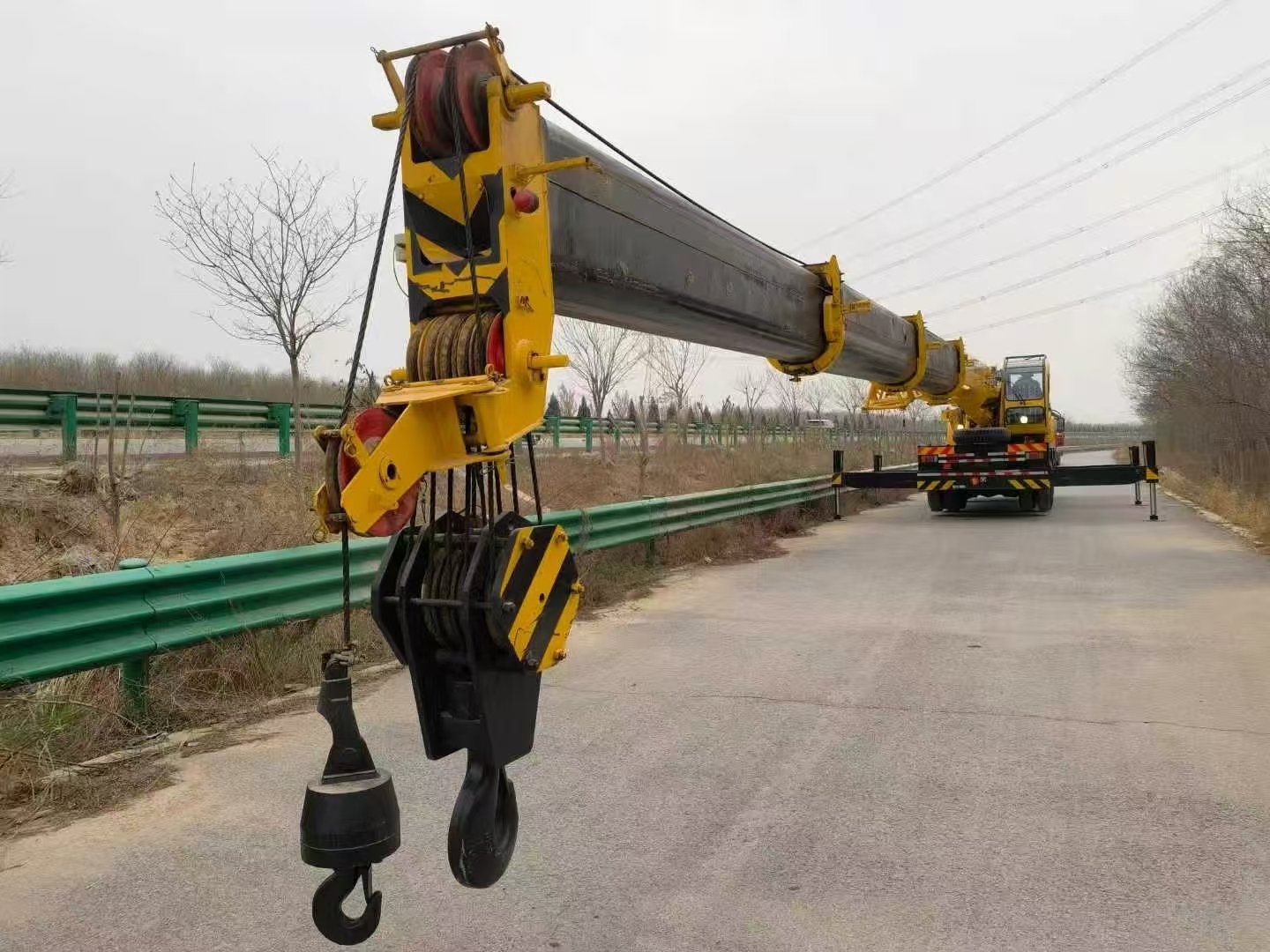

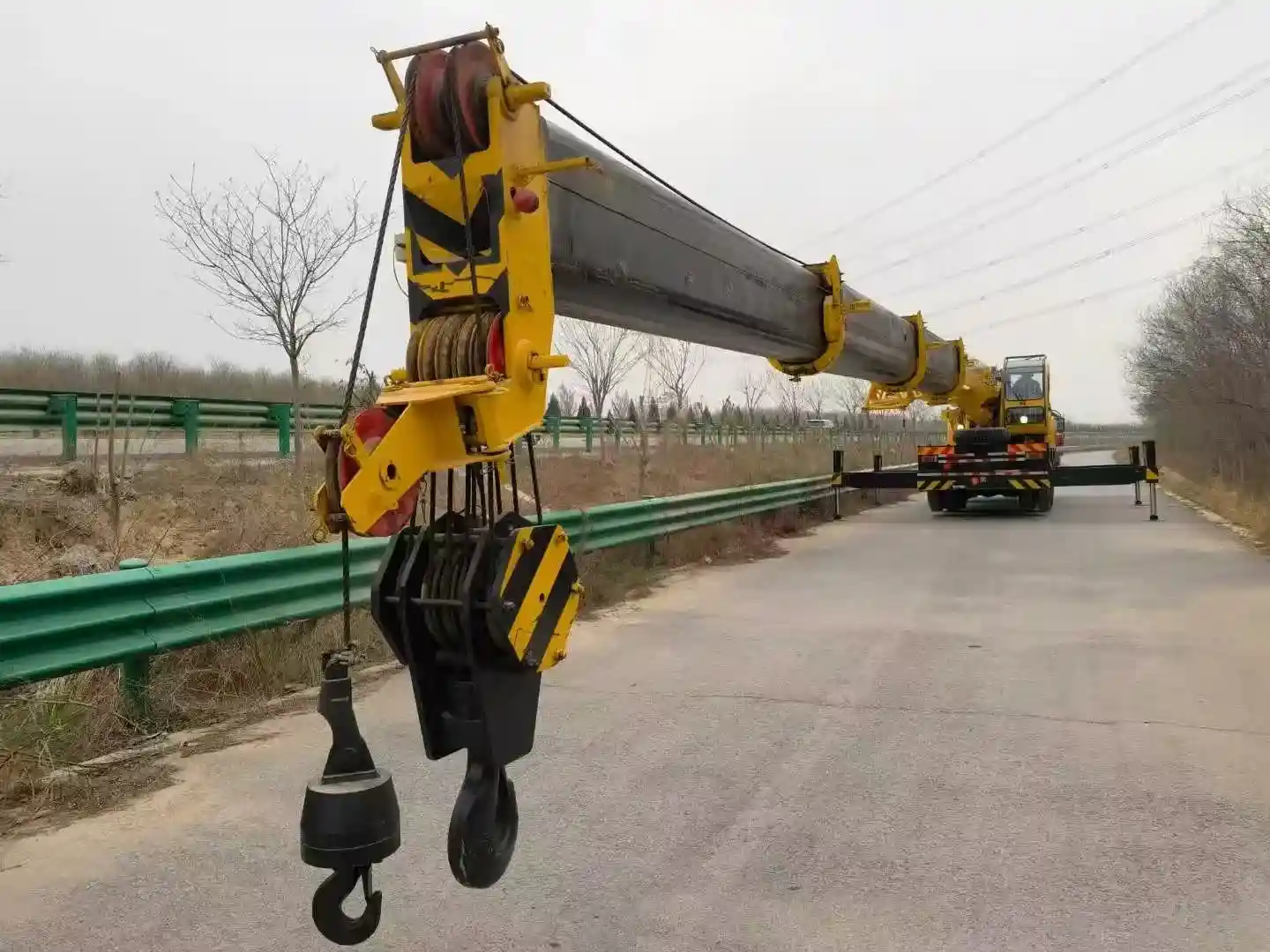

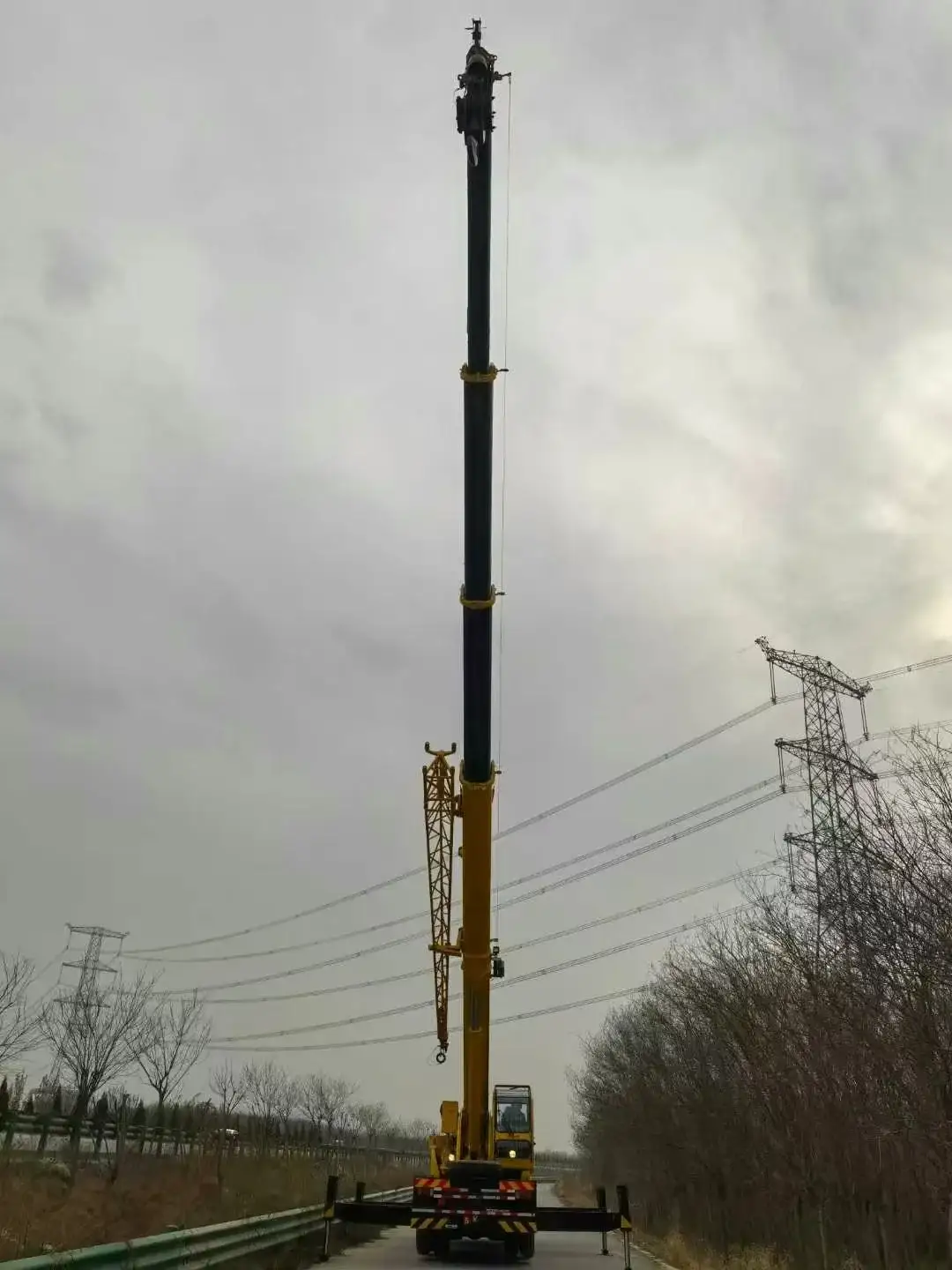

XCMG 25-ton crane is an efficient and reliable lifting equipment with a rated lifting capacity of 25 tons. It is equipped with a 5-section main arm (up to 43 meters) and a jib (up to 8.3 meters). The maximum lifting height is 61.5 meters, which meets the needs of high-altitude operations and long-distance lifting.

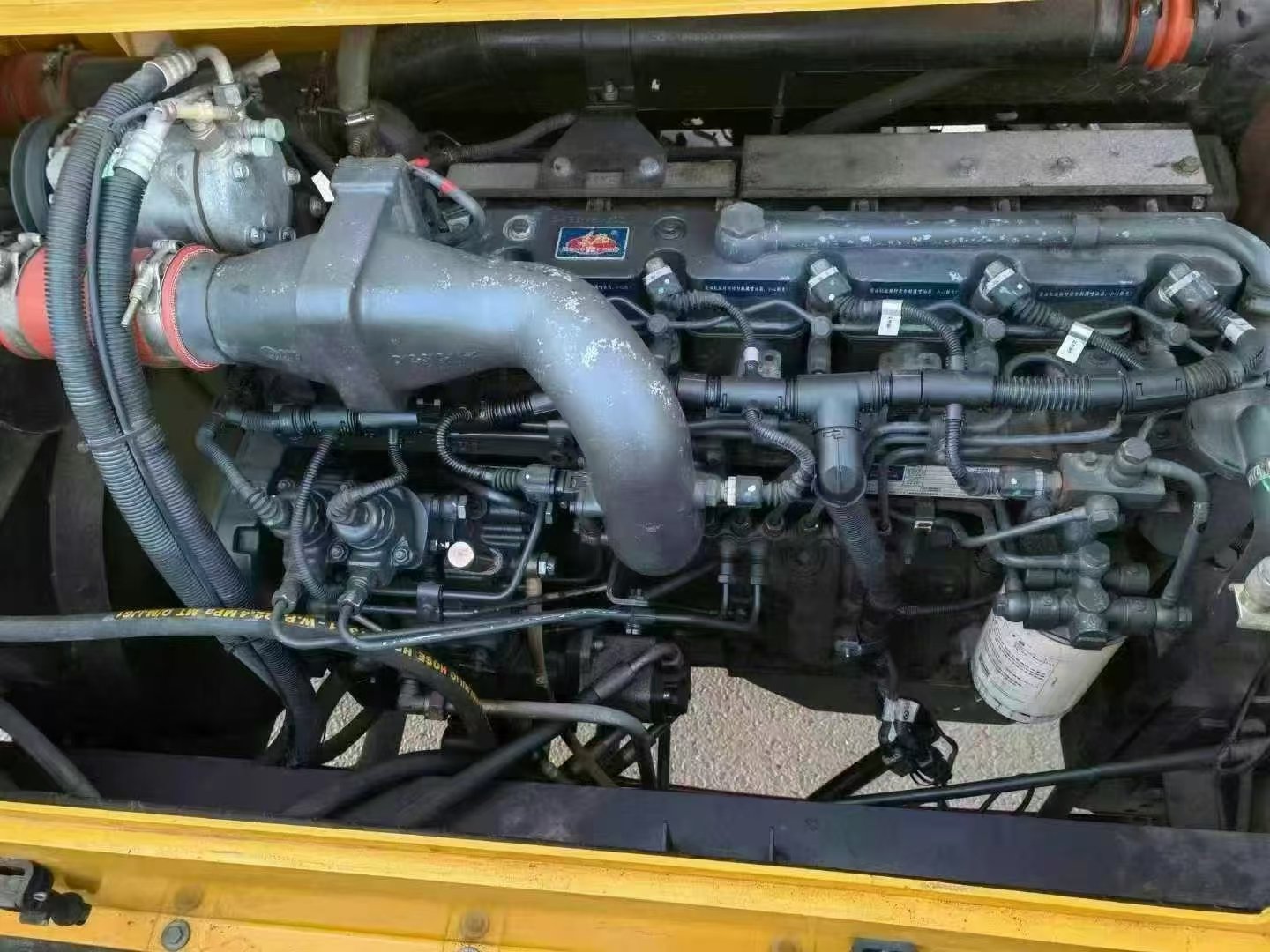

It is equipped with a Cummins or Yuchai engine (190-270 horsepower), matched with a Fast gearbox, and a maximum speed of 90km/h, combining power performance and transfer efficiency. The outrigger span is optimized to 6.5 meters, with a 6.7-ton counterweight, combined with a torque limiter and a hydraulic lock to ensure operational stability.
Some models use an extended-range hybrid system with a pure electric endurance of 22 hours and a 70% reduction in fuel consumption, taking into account both environmental protection and economy.
This model adopts a high-strength U-arm design, combined with dual-pump confluence technology, to achieve precise control of compound movements and increase operating efficiency by 30%. It is equipped with intelligent control system and full-life structural safety design as standard, and has passed 178 extreme tests, with a service life that is 1.6 times longer than the industry benchmark.

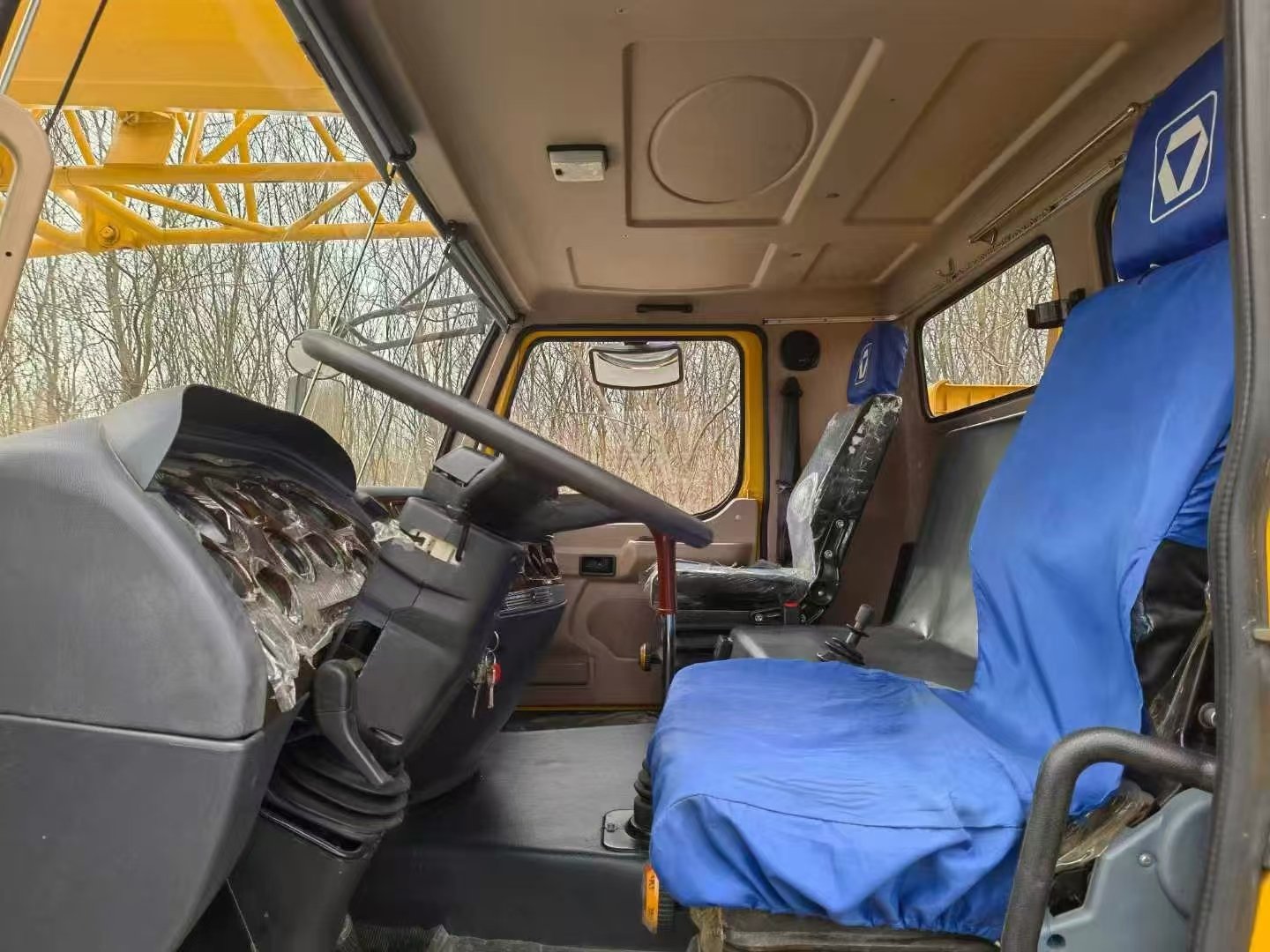

The cab is equipped with a high-definition display and remote control function, and the outriggers and booms support radio operation. The machine weighs about 29 tons and has a compact body (13.37 meters long × 2.54 meters wide × 3.55 meters high). It is suitable for scenes such as bridge construction, factory hoisting, and equipment relocation. It can flexibly cope with narrow sites and height-restricted areas, making it an ideal choice for medium and large projects.
Technical Parameter
