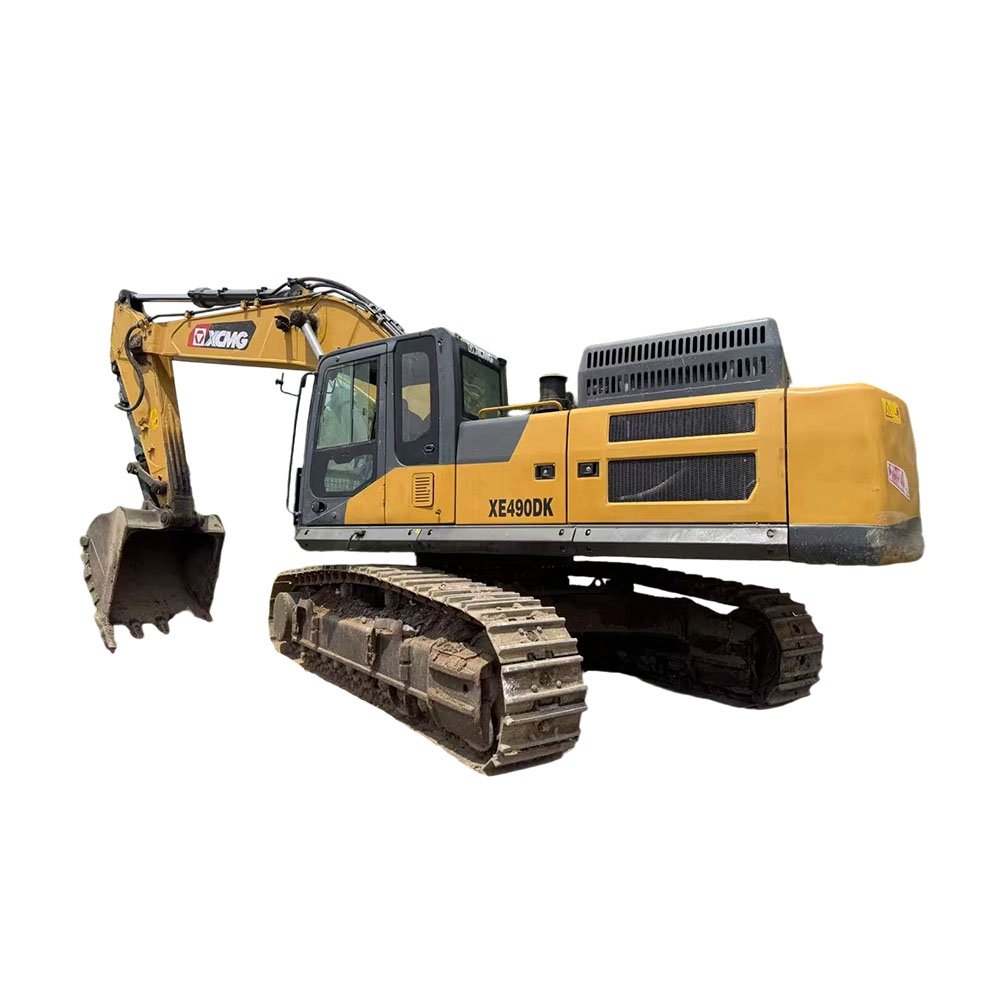

The XCMG XE490DK is a high – performance crawler excavator designed for heavy – duty applications. Powered by a Cummins engine, it offers a robust 280 kW (380.69 hp) of power. With a large – displacement main pump paired with XCMG’s proprietary low – speed and high – torque engine technology, the machine responds quickly, ensuring both high – efficiency operation and excellent fuel economy. It also features XCMG’s dedicated “full independent cooling technology” and a high – power radiator, consuming less fan energy and being suitable for high – temperature environments up to 50 °C.



This excavator showcases remarkable design details. The working device has been enhanced for durability, with the use of a new – type rock bucket that comes with additional bucket teeth, a protective lip, and side reinforcement plates, significantly improving its impact – resistance and wear – resistance. As a result, the overall service life of the working device is extended by 20%. The cab is ergonomically designed, providing operators with a spacious and comfortable working environment. It is equipped with a six – point – supported silicone shock absorber to minimize vibration and noise, reducing operator fatigue during long – term operation. Safety features such as a fence – type front – window guard and a FOPS top guard further ensure the operator’s well – being.

In terms of application versatility, the XE490DK is highly adaptable. It is especially well – suited for mining and large – scale construction projects. Different combinations of booms, arms, and buckets allow it to handle a wide range of working conditions. The multi – functional intelligent work tool control system can meet various operation requirements, whether it’s digging, breaking, or dismantling. Additionally, its instantaneous pressurization function enables it to effectively deal with complex and challenging work scenarios, making it an ideal choice for demanding projects.

Technical Parameter

Parameter | Specification |
---|---|
Operating Weight | 48,100 kg |
Bucket Capacity (min) | 2.6 m3 |
Bucket Capacity (max) | 3.1 m3 |
Engine Manufacturer | Cummins |
Engine Model | QSM11 |
Engine Power | 280 kW / 2000 rpm |
Maximum Torque | 1898 N.m / 1300 rpm |
Displacement | 11 L |
Travel Speed (high / low) | 5.4 / 3.2 km/h |
Swing Speed | 9.2 r/min |
Gradeability | 70% (35°) |
Ground Pressure | 85 Kpa |
Bucket Digging Force | 301 kN |
Arm Digging Force | 248 kN |
Maximum Tractive Force | 338 kN |
Hydraulic System - Main Pump Type | Two piston pumps |
Hydraulic System - Main Pump Maximum Flow | 2*360 l/min |
Hydraulic System - Travel Hydraulic Circuit Pressure | 34.3 Mpa |
Hydraulic System - Swing Hydraulic Circuit Pressure | 31 Mpa |
Hydraulic System - Pilot System Pressure | 3.9 Mpa |
Fuel Tank Capacity | 725 L |
Hydraulic Tank Capacity | 430 L |
Engine Oil Change Quantity | 38 L |
Transport Total Length | 11808 mm |
Transport Total Width | 3582 mm |
Transport Total Height | 3890 mm |
Track Total Length | 5353 mm |
Track Shoe Width | 600 mm |
Track Gauge | 2750 mm |
Minimum Ground Clearance | 519 mm |
Counterweight Clearance | 1324 mm |
Front Working Device Minimum Swing Radius | 4580 mm |
Rear Swing Radius | 3800 mm |
Maximum Digging Radius | 10855 mm |
Maximum Digging Depth | 7000 mm |
Maximum Digging Height | 9855 mm |
Maximum Dumping Height | 6890 mm |
Maximum Vertical Wall Digging Depth | 4500 mm |
Maximum Effective Digging Depth | 6900 mm |
Boom Length | 6670 mm |
Arm Length | 2900 mm |
