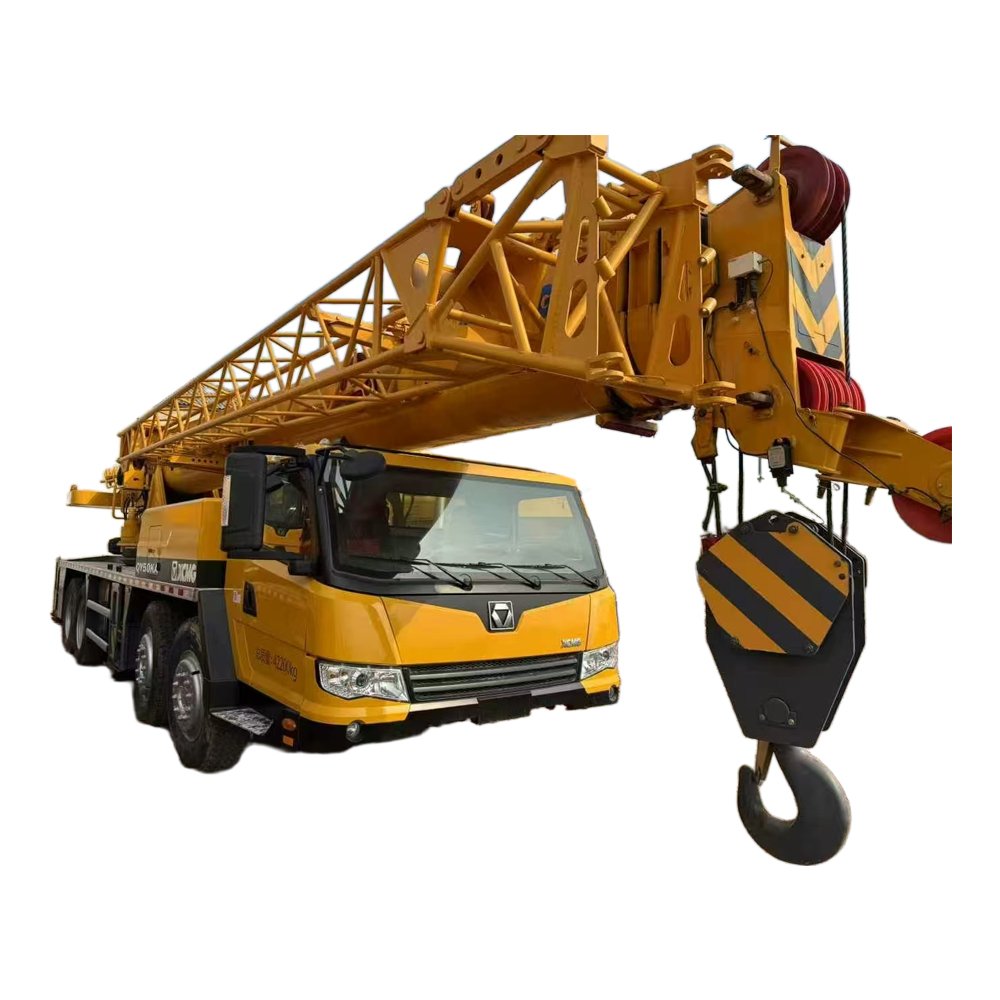

Used XCMG 50 Tons Crane
XCMG 50-ton crane delivers exceptional performance with a 5-section main boom extending up to 45.5 meters, expandable to 61.5 meters with an auxiliary boom. Featuring a 50-ton lifting capacity, 7.5-meter outrigger span, and 9.5-ton counterweight, it ensures operational stability. Powered by a 336-horsepower Weichai engine and a 9-speed gearbox, it achieves speeds up to 90 km/h. Dual-pump confluence technology boosts work efficiency by 30%. Rigorously tested through three-tier quality inspections, its service life exceeds industry standards by 1.6 times. With a compact design (13.75×2.8×3.52 meters) and 46-ton self-weight, it excels in bridge construction and complex sites, offering reliability for demanding engineering projects.
Share:
Used XCMG 50 Tons Crane
XCMG 50-ton crane delivers exceptional performance with a 5-section main boom extending up to 45.5 meters, expandable to 61.5 meters with an auxiliary boom. Featuring a 50-ton lifting capacity, 7.5-meter outrigger span, and 9.5-ton counterweight, it ensures operational stability. Powered by a 336-horsepower Weichai engine and a 9-speed gearbox, it achieves speeds up to 90 km/h. Dual-pump confluence technology boosts work efficiency by 30%. Rigorously tested through three-tier quality inspections, its service life exceeds industry standards by 1.6 times. With a compact design (13.75×2.8×3.52 meters) and 46-ton self-weight, it excels in bridge construction and complex sites, offering reliability for demanding engineering projects.
XCMG’s 50-ton crane is a high-performance lifting equipment equipped with a 5-section main boom, up to 45.5 meters long. With a double-section jib, the total height reaches 61.5 meters, which can meet the needs of high-altitude operations under complex working conditions.
Its maximum rated lifting capacity is 50 tons, the maximum lifting torque is 1764kN・m, the outrigger span is optimized to 7.5 meters, and it is equipped with a 9.5-ton counterweight to ensure lifting stability.
The power system uses a Weichai 336-horsepower engine, matched with a 9-speed gearbox, and a maximum speed of 90km/h, with both efficient transfer and heavy-load operation capabilities.
This model integrates dual-pump confluence technology to achieve coordinated control of lifting and variable-length compound actions, and improves operating efficiency by 30%. It is equipped with a full-life structural safety design as standard, passes the three-level quality inspection, and its service life exceeds the industry benchmark by 1.6 times.
It is suitable for scenarios such as bridge construction, factory hoisting, and equipment relocation. With its 46-ton deadweight and compact body (length, width, and height of 13.75×2.8×3.52 meters), it can easily cope with narrow sites and height-restricted areas, making it a reliable choice for engineering construction.
Technical Parameter
