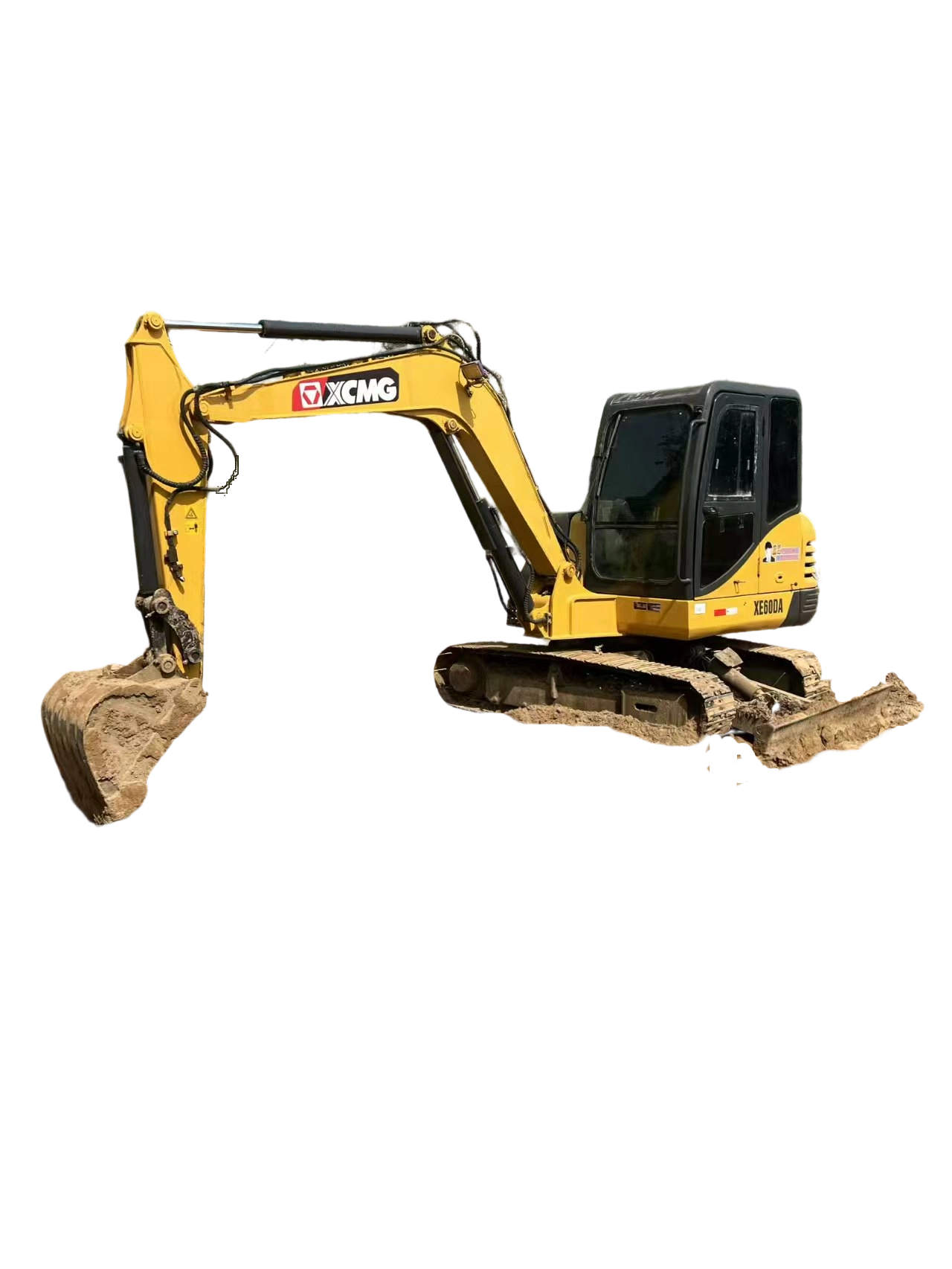

Used XCMG 60 excavator
Powered by a 39.8Kw Yanmar engine and Japanese Rexroth hydraulics, this 5960kg excavator offers 0.09-0.23m³ bucket capacity and strong digging force (42.5kN). With 9.5rpm rotation, 4.2/2.2km/h speeds, and compact dimensions (5850×1880-1920×2585mm), it suits narrow sites. Large fuel (110L)/hydraulic (85L) tanks and easy maintenance reduce costs. Ideal for municipal/water conservancy projects: efficient, reliable, and versatile.
Share:

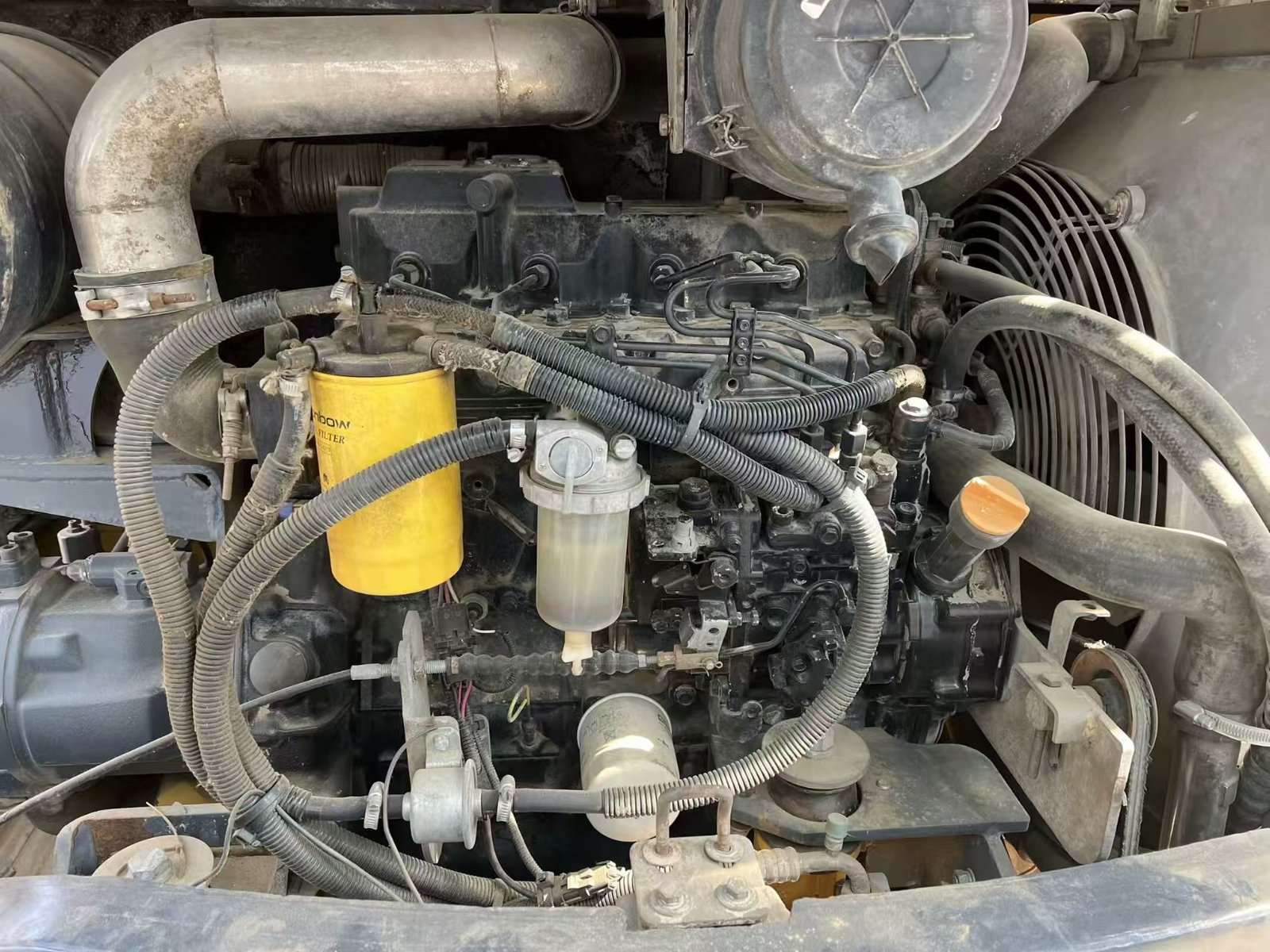

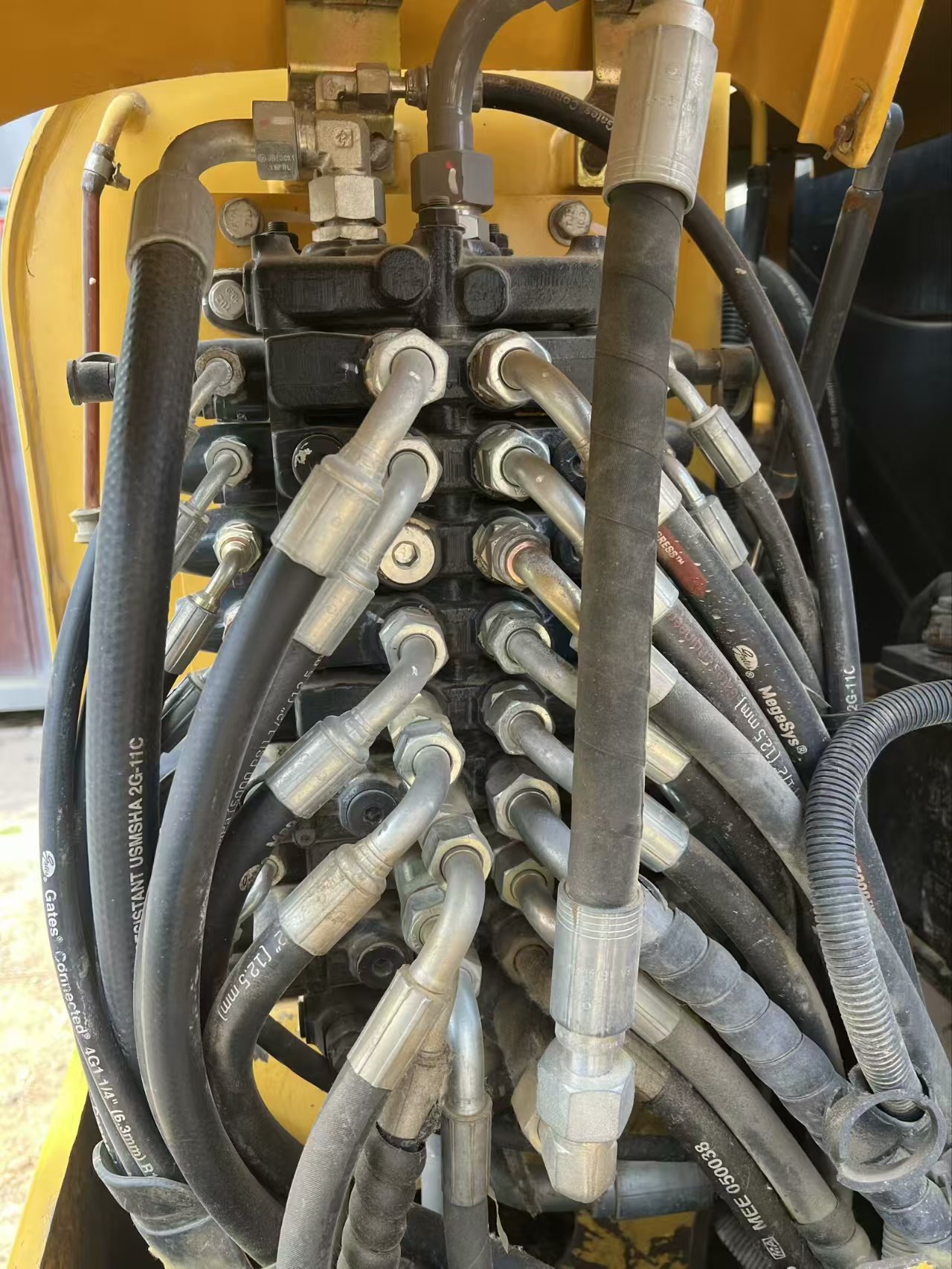

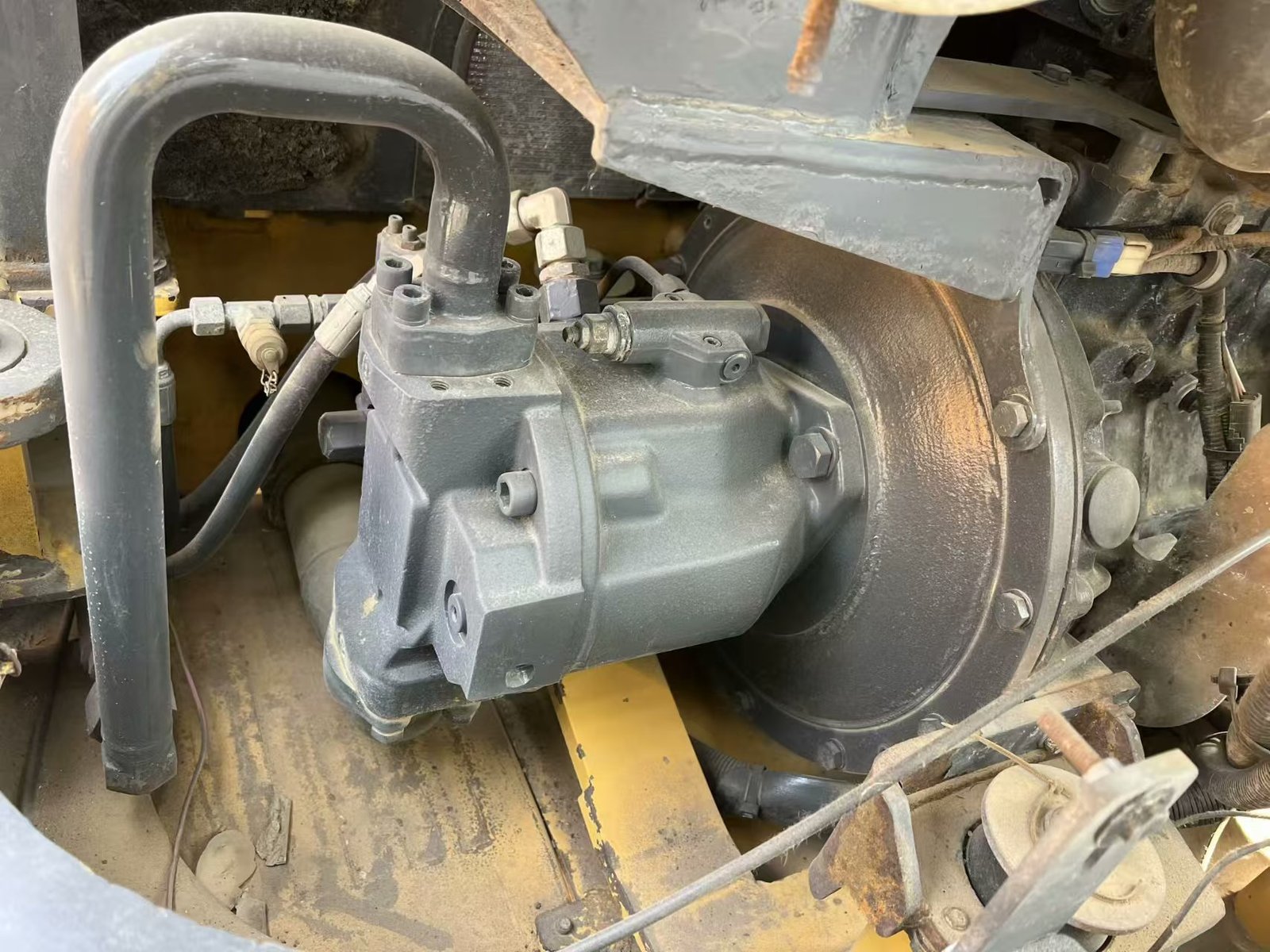

The XCMG 60 excavator stands out for its excellent performance and design. In terms of power, it is equipped with a Yanmar 4TNV94L engine with a rated power of 39.8 kW, which is powerful and have excellent fuel economy. The hydraulic system uses a Japanese Rexroth main pump with large flow and precise coordinated movements, ensuring efficient and reliable operation under various working conditions.



The XCMG 60 excavator has a total weight of 5960 kg and a bucket capacity of 0.09 to 0.23 cubic meter. Its strong digging force, speed of 9.5 rpm and walking speed of 4.2/2.2 km/h enable it to adapt to various working conditions.


The XCMG 60 excavator has a compact design with a transport length of 5850 mm, a width of 1880-1920 mm and a height of 2585 mm, which is easy to transport and operate in narrow sites. The boom, bucket and chassis tracks are all optimized to make sure a reliable and sturdy structure. These design elements give it excellent versatility and efficiency in various working environments.


In addition, the XCMG 60 excavator is equipped with a 110-liter fuel tank and an 85-liter hydraulic oil tank. This design make sure easy maintenance and helps reduce overall cost of use. This makes it not only efficient but also economical for a variety of construction and excavation task.

The excavator is widely used in various fields such as municipal administration and water conservancy. It is an efficient and reliable construction equipment and a valuable asset for various projects.

Technical Parameter

Machine operating weight | 5960kg |
---|---|
Bucket capacity | 0.09-0.23m³ |
Boom length | 3000mm |
Arm length | 1600mm |
Total transport length | 5850mm |
Total transport width | 1880-1920mm |
Total transport height | 2585mm |
Counterweight ground clearance | 694mm |
Track ground length | 1985-1990mm |
Track shoe width | 400mm |
Track gauge | 1480-1500mm |
Minimum ground clearance | 369mm |
Rear end turning radius | 1650mm |
Turning speed | 9.5rpm |
Travel speed | 4.2/2.2Km/h |
Gradability | 35° |
Ground pressure | 32.1Kpa |
Bucket digging force | 42.5kN |
Arm digging force | 28.5kN |
Engine model | Yanmar 4TNV94L |
Rated power | 39.8Kw/2200rpm |
Displacement | 3.054L |
Maximum flow of main pump | 2×60.5+40.3+9.9 L/min |
Fuel tank capacity | 110L |
Hydraulic oil tank capacity | 85L |
Maximum digging radius | 6130mm |
Maximum digging depth | 3830mm |
Maximum digging height | 5630mm |
Maximum unloading height | 3945mm |
