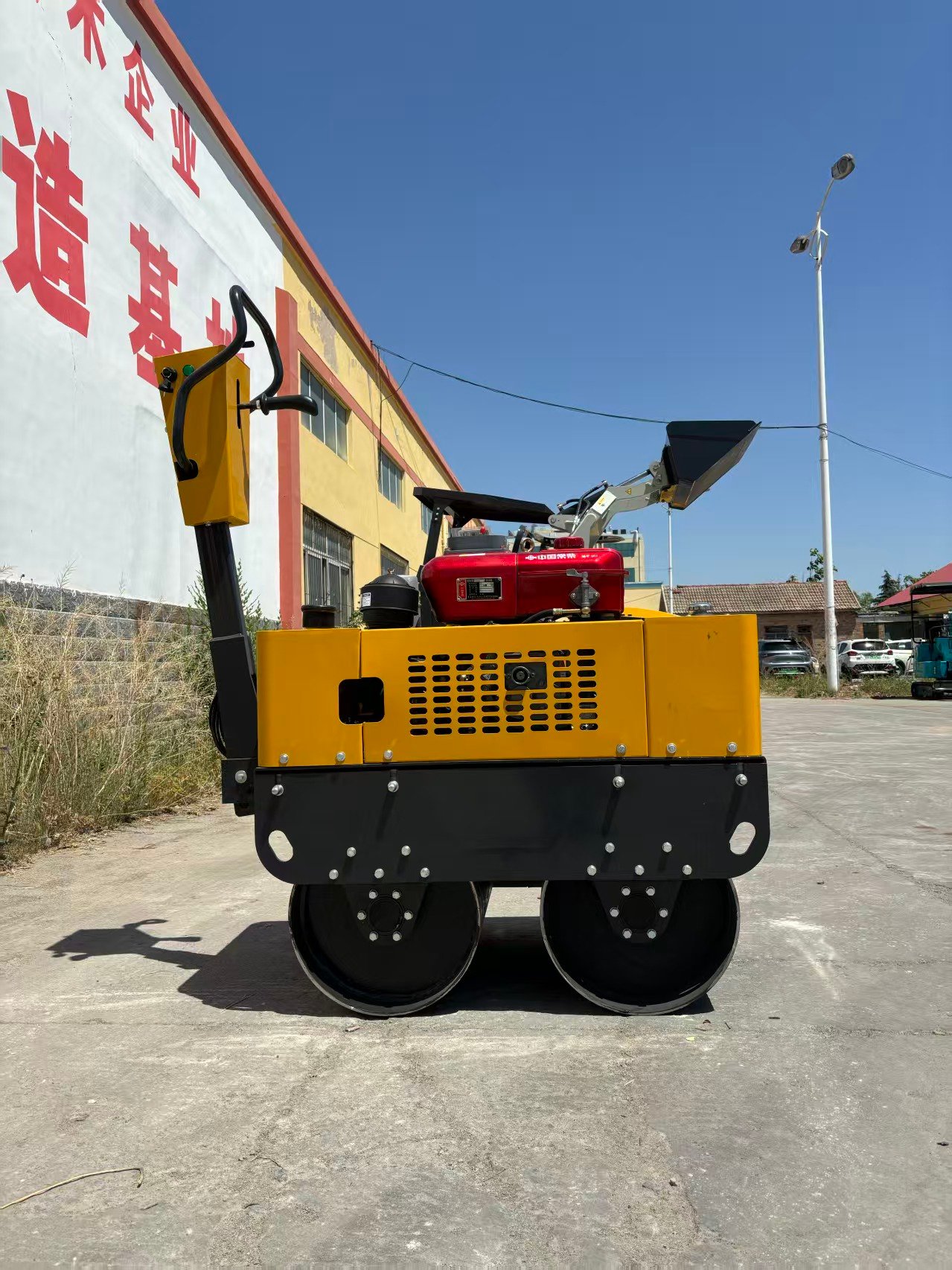

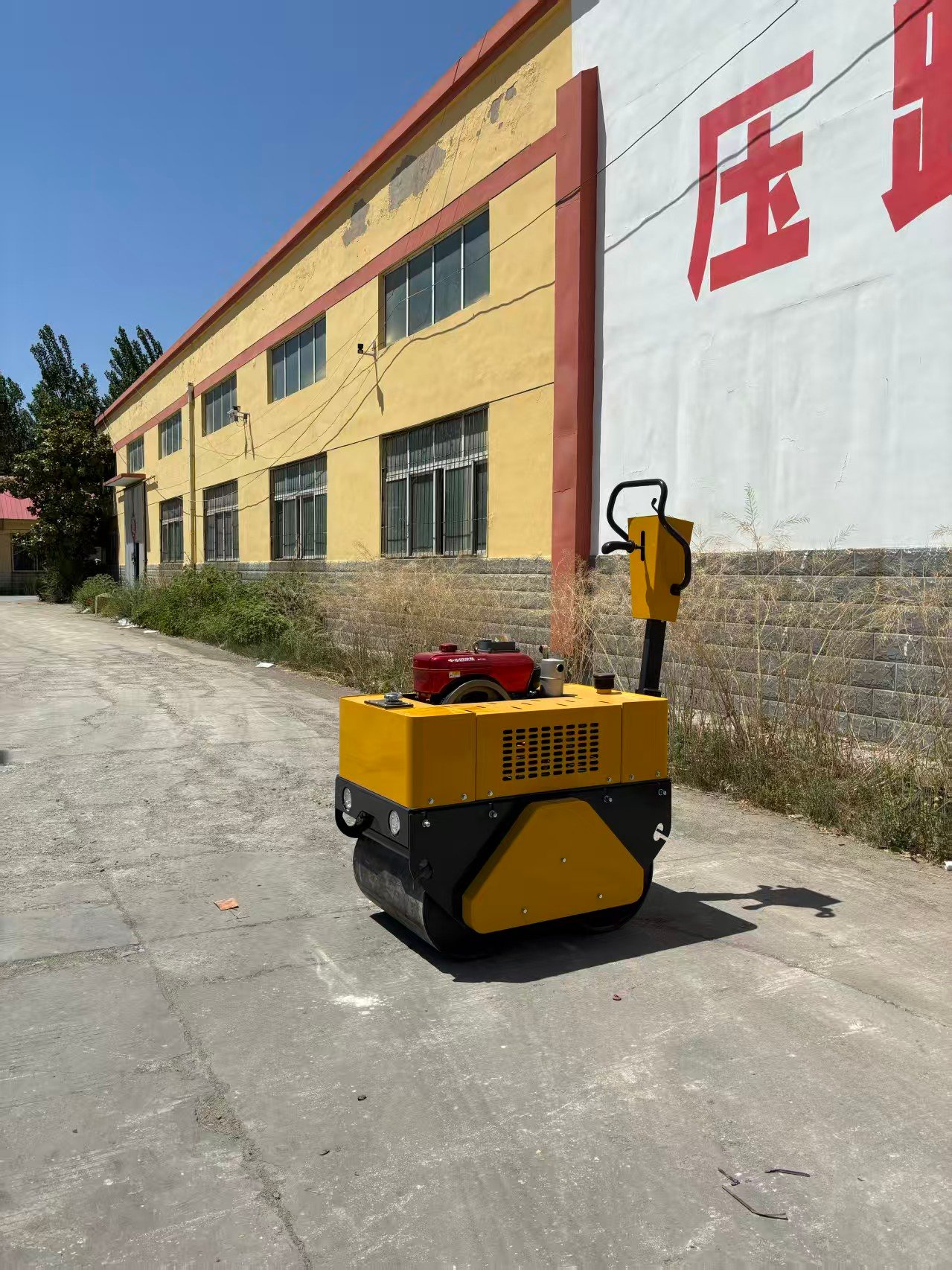

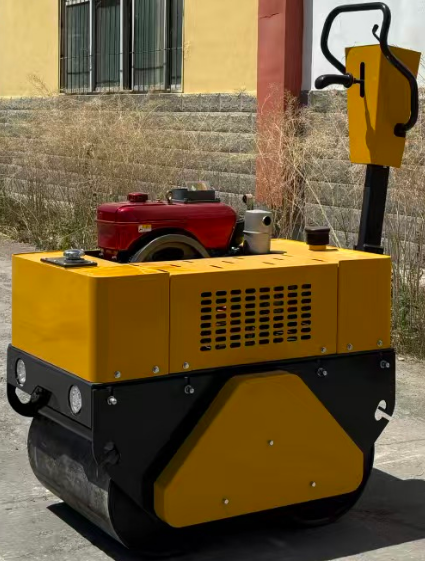

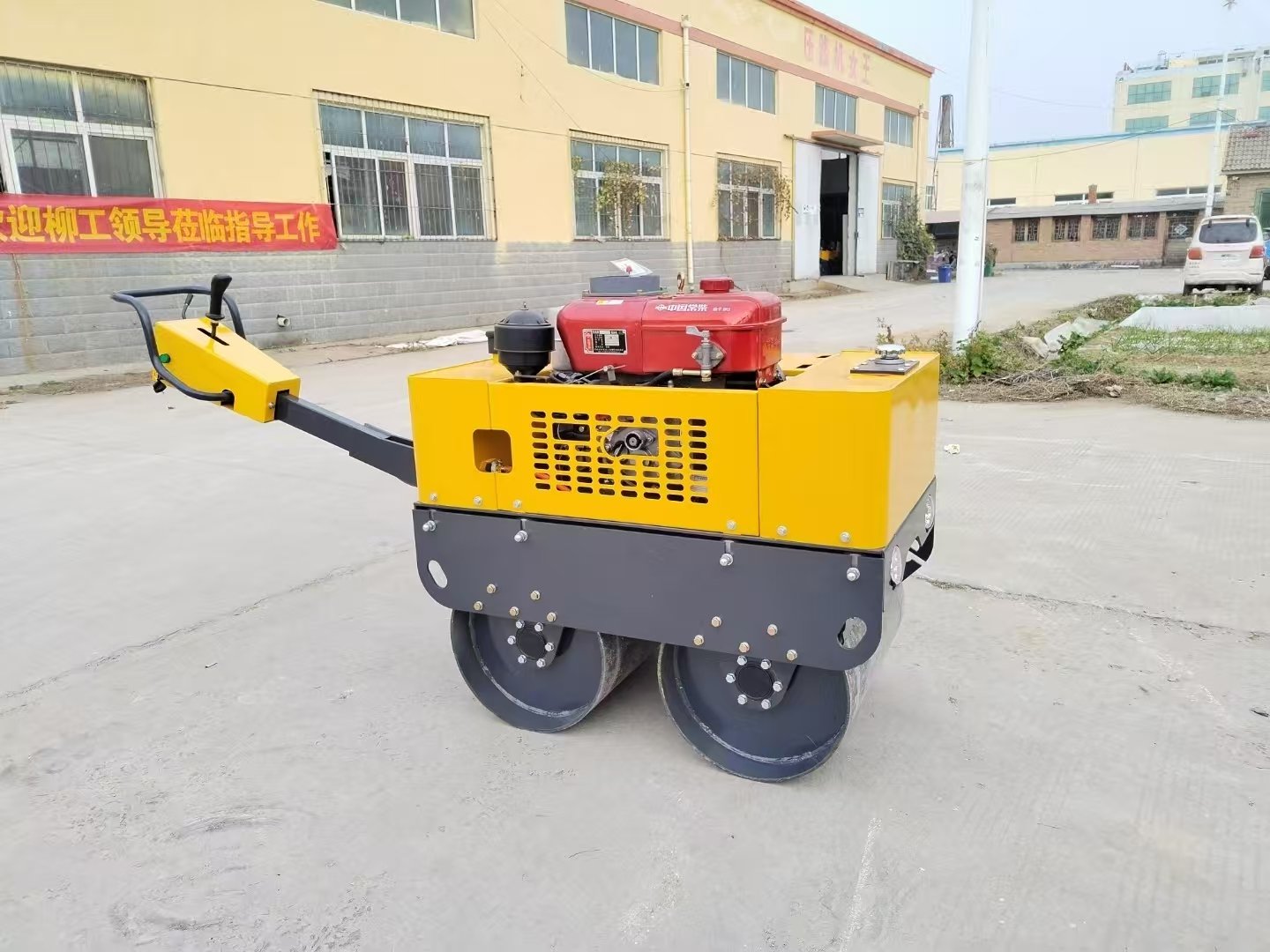

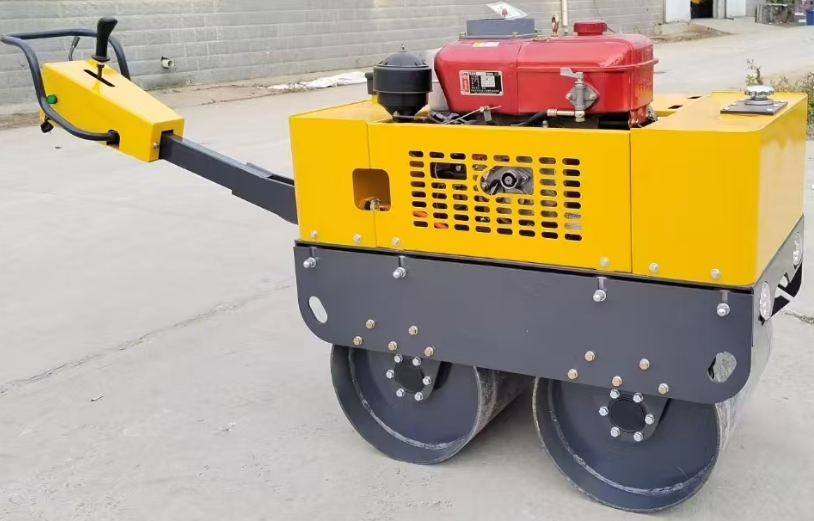

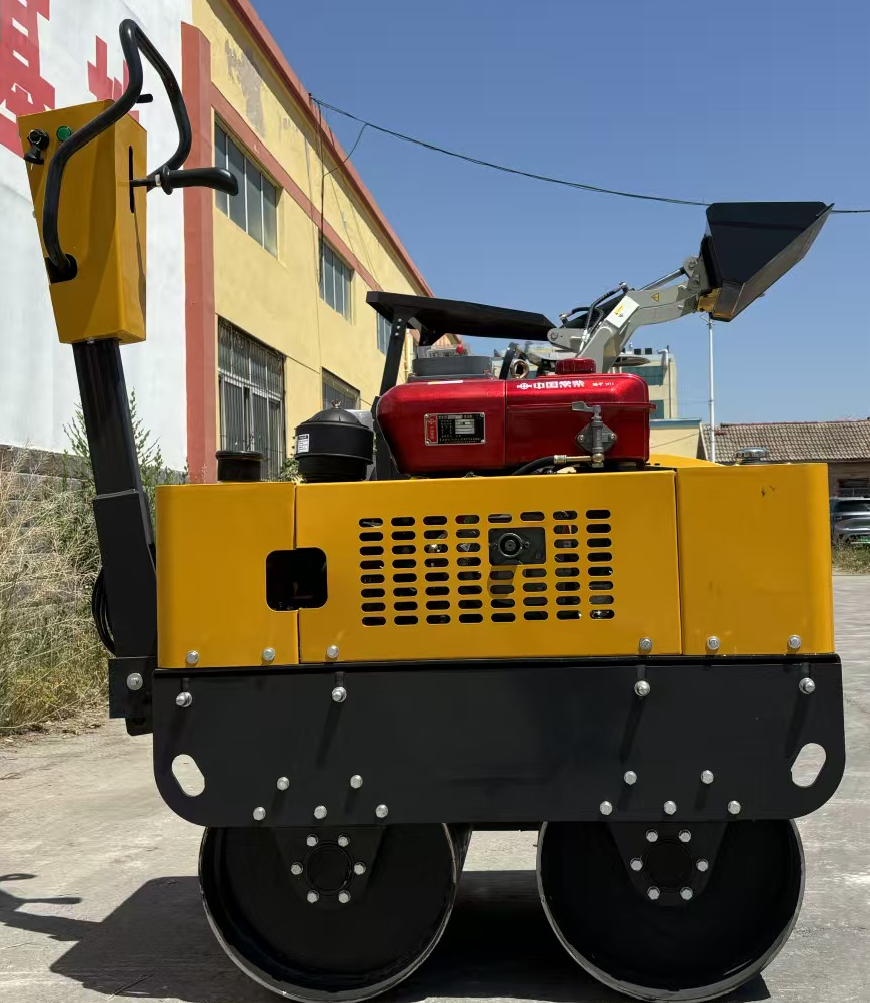

This small road roller features a compact structure, flexible operation, and high efficiency and energy saving. It is specially designed for compacting soil, gravel, asphalt, and other road construction materials. With a small operating radius, it can work efficiently in narrow spaces, for trench backfilling, and in small construction areas.
The hydraulic drive system ensures smooth operation, enabling stepless speed adjustment and convenient forward/reverse travel and direction changes. High-quality hydraulic components and bearings are adopted, ensuring stable running, low vibration, and a long service life.
It is widely used in road maintenance, landscaping, parking lots, sidewalks, and various small and medium-sized engineering projects. The whole machine is durable, easy to operate and maintain, and highly practical.
Technical Parameter
| Operating Weight | 500kg |
| Static Linear Load | 35.5/38.5N/cm |
| Vibration Frequency | 85Hz |
| Nominal Amplitude | 0.4mm |
| Exciting Force | 9kN |
| Drum Diameter | 426mm |
| Compaction Width | 600mm |
| Working Speed | 0-4km/h |
| Theoretical Gradeability | 25° |
| Minimum Ground Clearance | 133mm |
| Wheelbase | 560mm |
| Rated Speed | 2600r/min |
| Rated Power | 5.67kw |
| Engine Model | Changchai 180 Engine |
| Hydraulic Oil Tank | 14L |
| Water Sprinkler Tank | 23L |
| Fuel Tank | 5.5L |
| Length | 1.390m |
| Width | 0.755m |
| Height | 1.710m |
