THBSMN 3CX Backhoe Loader
JCB 3CX loader, manufactured by JCB, a company founded in 1945, is a classic product. It is equipped with a stable-performance JCB3CX engine, and its loading end can meet diverse requirements. With flexible steering and fast driving speed, it provides a comfortable operation experience and convenient maintenance. Widely used in various engineering projects, it ensures efficient and stable operation.
Share:

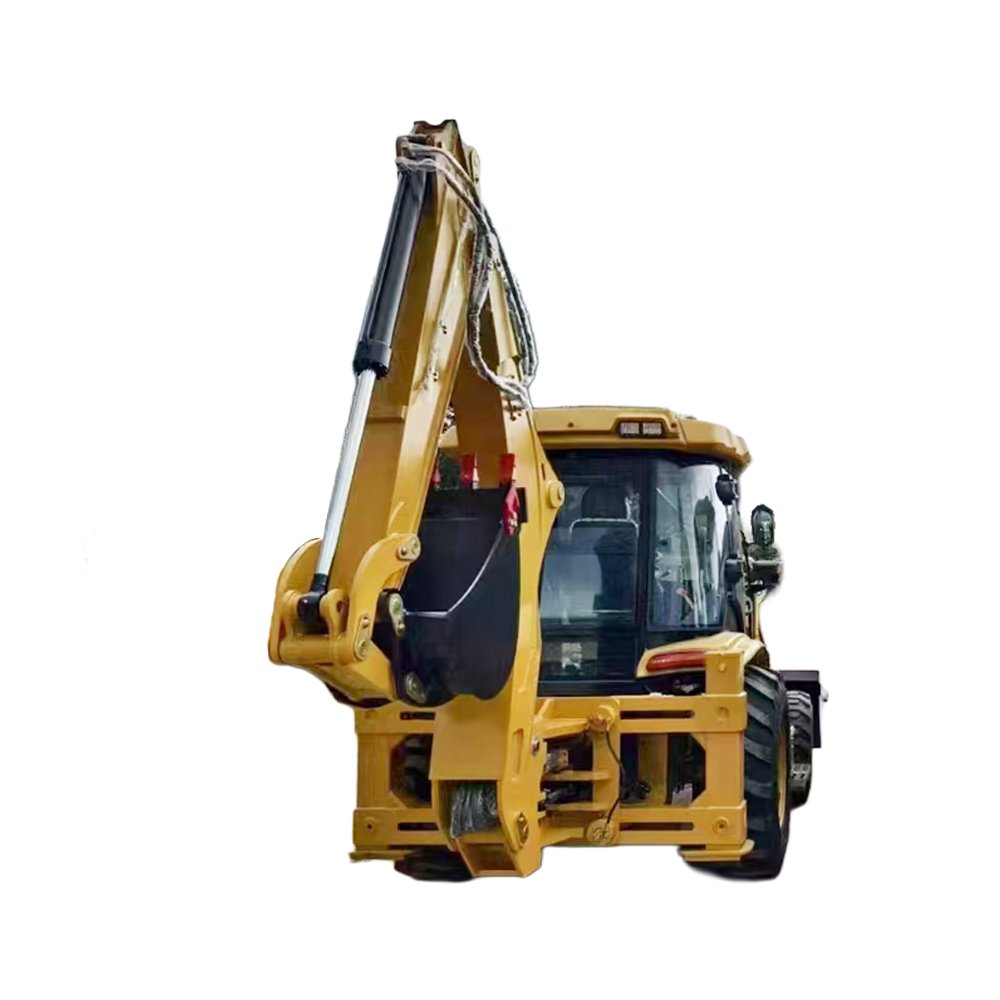

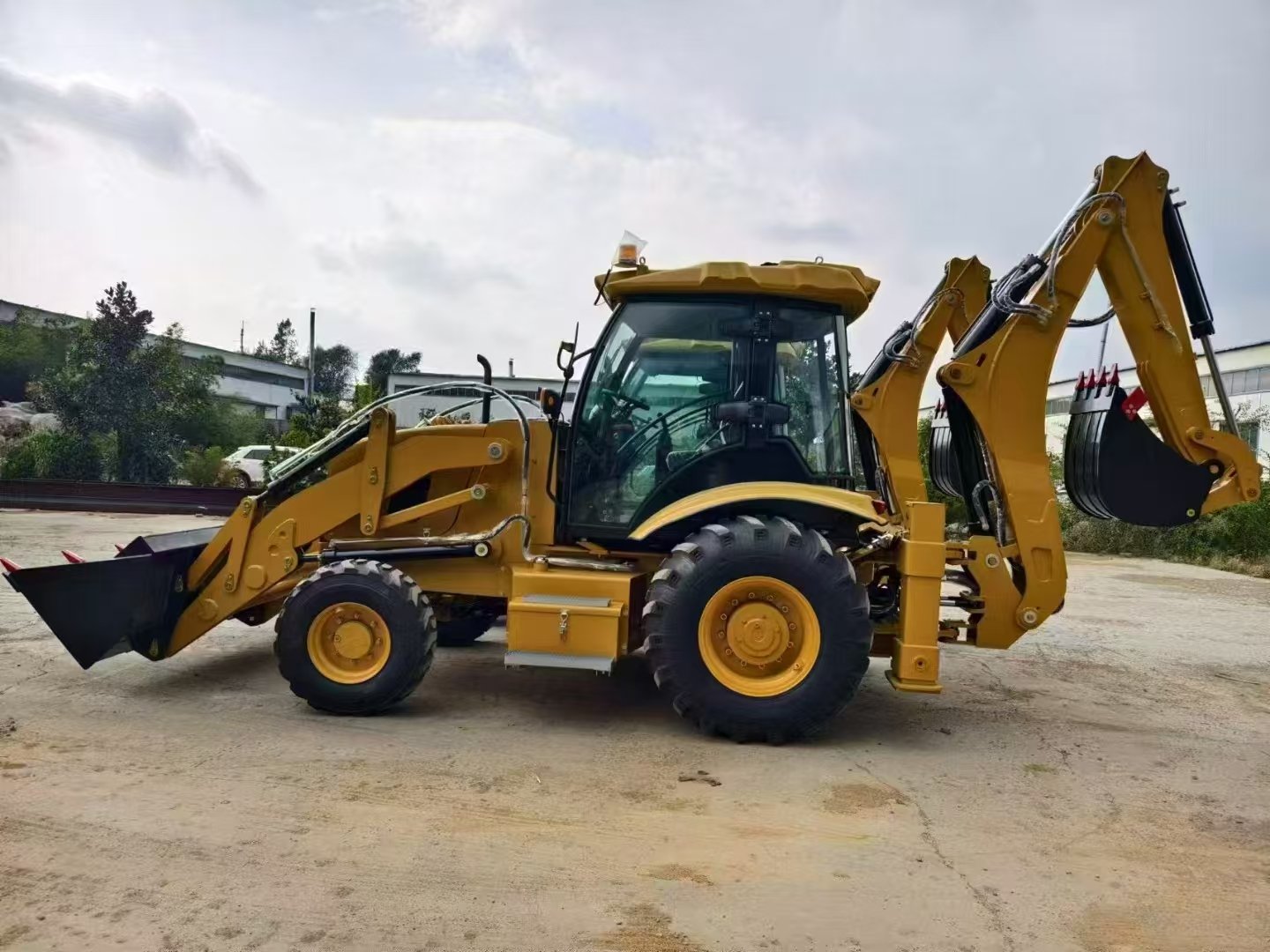

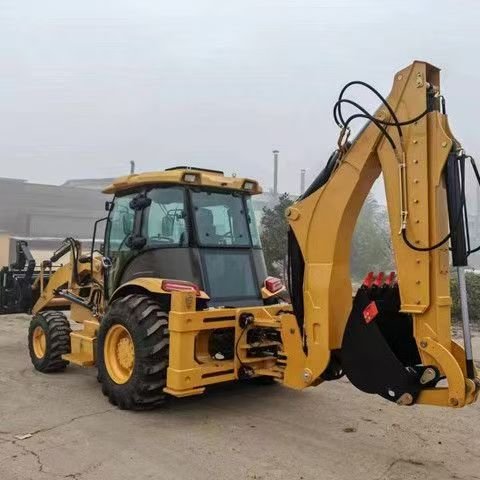

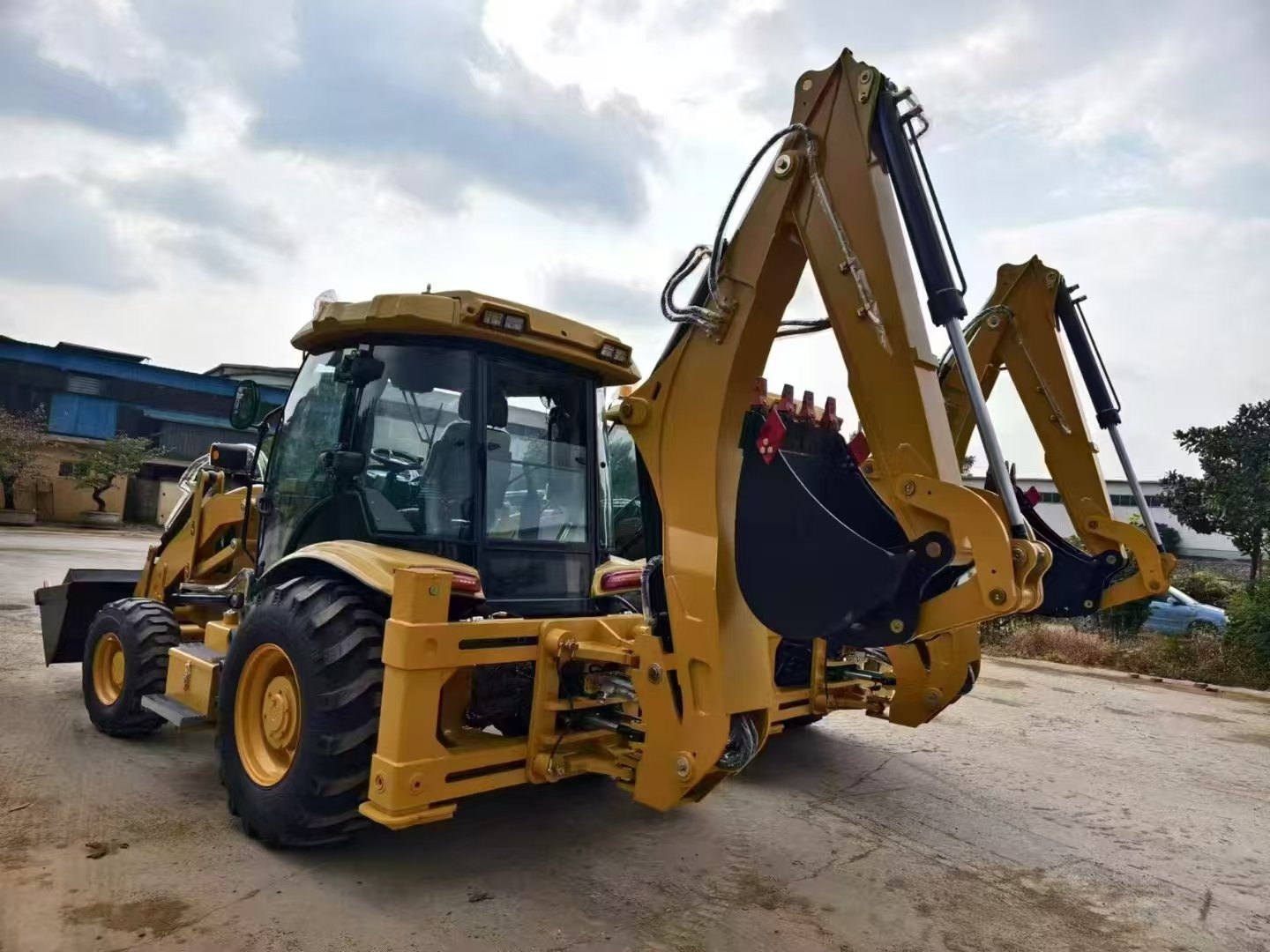

THBSMN 3CX Backhoe Loader
JCB 3CX loader, manufactured by JCB, a company founded in 1945, is a classic product. It is equipped with a stable-performance JCB3CX engine, and its loading end can meet diverse requirements. With flexible steering and fast driving speed, it provides a comfortable operation experience and convenient maintenance. Widely used in various engineering projects, it ensures efficient and stable operation.
The Standard Version of THBSMN’s all-new 3CX backhoe loader is equipped with the YUNNEI 38GBZ four-stroke water-cooled engine, delivering a rated power of 76KW for strong and stable power output. It is matched with the YJ280 torque converter and fixed-shaft power shift gearbox, featuring 2 forward gears and 2 reverse gears, with a maximum speed of 30Km/h and excellent transmission efficiency. With an overall operating weight of 7800kg and a maximum traction force of 39KN, combined with the FEICHENG YUNYU double-reduction steering axle (rated load: 4/18.5t), it exhibits outstanding driving and load-bearing performance whether for site transfer or heavy-load operations, making it suitable for various engineering construction scenarios.
The Standard Version of THBSMN’s all-new 3CX backhoe loader boasts impressive operational performance. It has a loading bucket capacity of 1.3m³ and a backhoe bucket capacity of 0.35m³, with a maximum digging depth of 4100mm and a backhoe swing angle of 190°, covering a wide operational range. The hydraulic system operates at 22Mpa, providing a digging force of 46.5KN for the backhoe bucket and a breakout force of 31KN for the loading bucket. The bucket lifting, lowering, and dumping times are only 5.4S, 3.1S, and 2.0S respectively, significantly improving work efficiency. Meanwhile, it is equipped with air-over-oil caliper disc service brakes with self-adjustment and self-balancing functions, and the parking/emergency brake is easy to operate, ensuring enhanced operational safety.
The Standard Version of THBSMN’s all-new 3CX backhoe loader offers practical advantages in operational experience and basic configuration. It comes standard with a deluxe cab with interior trim, featuring a tip-forward design for convenient later inspection and maintenance. The deluxe adjustable rotating seat and adjustable instrument panel greatly reduce operational fatigue. Adopting hydraulic pilot control, it enables precise and flexible operation. Additionally, it is equipped with 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires, H-type outriggers, and a hydraulic side-shift device for the rear backhoe, ensuring maximum operational stability. This is the Standard Version, with a Deluxe Version also available to meet higher-specification construction requirements.
Technical Parameter
Cooperative Brand
Tonghao mainly supplies used construction machinery of well-known brands like Komatsu, Caterpilar, Hitachi, Doosan, Volvo, Sany, Hyundai, Xugong, LiuGong, Lingong and other.
